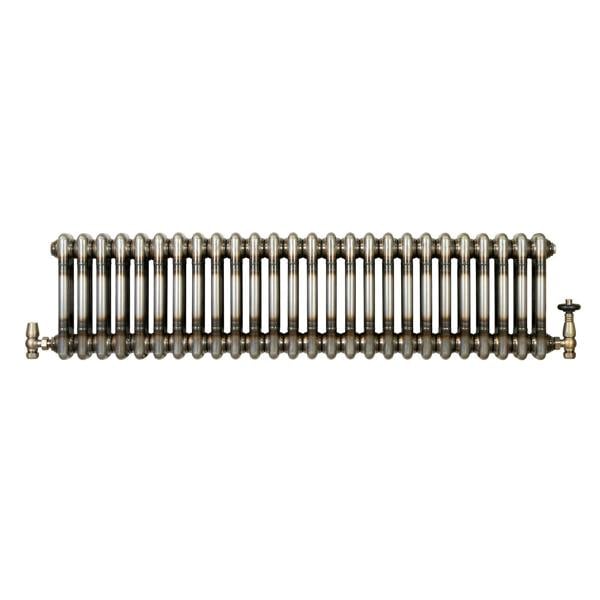

Traditional 2 Column Radiator & Valves – 300mm x 1190mm - Raw Metal

From MonsterShop, this traditional 2 column horizontal radiator and valve set brings an industrial raw metal finish into the home with a design that feels both distinctive and practical. Made from 1.5mm carbon steel with a lacquer coating, it is sized for versatile placement while offering dependable heat output for everyday living spaces.

The radiator features 26 columns with 25mm steel tubes, creating a bold linear look that works well in both traditional and more contemporary interiors. Supplied with an angled thermostatic valve set in a matching raw metal finish, it allows for straightforward temperature adjustment through a rotary knob, while the included lockshield valve helps regulate water flow within your heating system.

Key features

• Model: Traditional 2 Column Radiator & Valves
• Raw metal finish with lacquer coating
• Made from 1.5mm carbon steel
• 26-column design with 25mm steel tubes
• Thermostatic angled valve set with rotary knob control
• Temperature range from 6–28C
• CE and UKCA certified
• 15-year radiator guarantee and 10-year valve guarantee

Specifications

• Weight: 13.7kg
• BTU rating @ 50: 2460
• BTU rating @ 60: 3091
• Watt rating @ 50: 721
• Watt rating @ 60: 906
• Max working temperature: 95C
• Max working pressure: 10 Bar
• Test pressure: 13 Bar
• Recommended application area: 4.8m²
• Heating surface area: 1.31m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Compatibility: All UK heating systems
• Testing: BS EN 442 and ISO9001:2015 standards
• Valve material: Powder coated brass
• Valve style: Angled thermostatic
• Maximum valve pressure: 10
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

Sizing

• Radiator: 1190mm W x 68mm D x 300mm H
• Depth with bracket: 92mm
• Gap between tubes: 45mm
• Distance from wall to centre of inlet: 58mm
• Valve-to-valve height: 324mm
• TRV: 137mm H x 85mm W x 55mm D
• Lockshield: 87mm H x 75mm W x 34mm D

What's included

• 1 x traditional 2 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : W342Y8YF42
