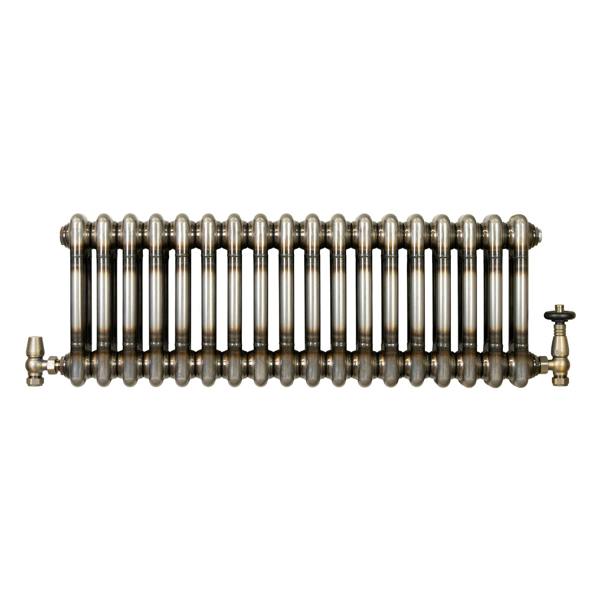

Traditional 2 Column Radiator & Valves – 300mm x 830mm - Raw Metal

From MonsterShop, this traditional 2 column radiator and valve set brings an industrial raw metal finish to everyday heating. Designed for wall-mounted installation, it combines a horizontal format with a compact 300mm height, making it well suited to spaces where a lower profile radiator is preferred without losing visual impact.

Made from 1.5mm carbon steel with a lacquer coating, the radiator is built around 18 columns with 25mm steel tubes and is engineered for reliable heat output. The supplied angled thermostatic valve set allows straightforward temperature adjustment through a rotary knob, with a 6–28C range for controlled comfort. A matching raw metal finish across the radiator and valves gives the set a cohesive look, while the included cleaning brush helps with ongoing maintenance.

Key features

• 1.5mm carbon steel radiator with lacquer coating
• Raw metal finish for an industrial look
• 18-column horizontal design with 25mm tubes
• 2139 BTU heat output at 60
• Angled thermostatic valve set with rotary knob control
• Adjustable temperature range from 6–28C
• CE and UKCA certified, tested to BS EN 442 and ISO9001:2015 standards
• 15-year radiator guarantee and 10-year valve guarantee

Specifications

• Valve material: Powder coated brass
• Maximum working temperature: 95C
• Maximum working pressure: 10 bar
• Test pressure: 13 bar
• Inlets/outlets size: Standard 0.5" BSP bore
• Valve connection: 1/2" x 15mm
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Compatibility: All UK and EU heating systems

Sizing

• Radiator: 830mm W x 68mm D x 300mm H
• Depth with bracket: 92mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 58mm
• Valve-to-valve height: 324mm
• TRV: 137mm H x 85mm W x 55mm D
• Lockshield: 87mm H x 75mm W x 34mm D

What's included

• 1 x traditional 2 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
