Traditional 2 Column Radiator & Valves - 600 x 425mm - Raw Metal

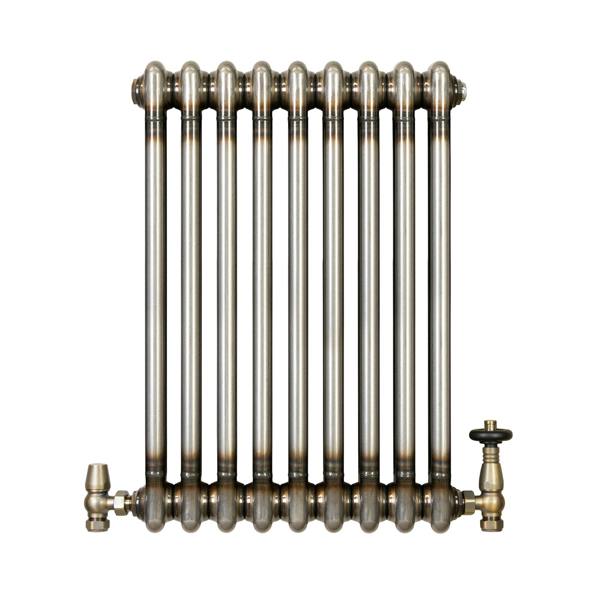

From MonsterShop, this traditional 2 column radiator and valve set brings an industrial raw metal finish to everyday heating. Designed for smaller spaces, it combines a bold horizontal profile with practical performance, making it a distinctive choice for rooms where both warmth and character matter.

Made from 1.5mm carbon steel with a lacquer coating, the radiator features 9 columns and 25mm steel tubes. It is supplied with an angled thermostatic valve set in a matching raw metal finish, allowing temperature adjustment from 6–28C via a rotary knob. A lockshield valve helps regulate water flow, while the standard 0.5" BSP inlet and outlet offer compatibility with all UK and EU heating systems. CE and UKCA certified, and tested to BS EN 442 and ISO9001:2015 standards, it is finished with a 15-year guarantee for the radiator and a 10-year guarantee for the valves.

Key features

• Raw metal finish with lacquer coating
• 2 column horizontal design with 9 columns
• 1955 BTU heat output at 60
• Thermostatic angled valve set with rotary knob control
• Adjustable temperature range from 6–28C
• Standard 0.5" BSP inlet and outlet

Specifications

• Material: 1.5mm carbon steel
• Individual tube size: 25mm
• BTU rating @ 50: 1554
• BTU rating @ 60: 1955
• Watt rating @ 50: 456
• Watt rating @ 60: 573
• Max working temperature: 95C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 3m²
• Heating surface area: 0.88m²
• Testing: BS EN 442 and ISO9001:2015 standards
• Certification: CE and UKCA
• Valve material: Powder coated brass
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

Sizing

• Radiator: 600mm H x 425mm W
• Radiator depth: 68mm
• Depth with bracket: 92mm
• Gap between tubes: 45mm
• Distance from wall to centre of inlet: 58mm
• Valve-to-valve height: 524mm
• TRV: 137mm H x 85mm W x 55mm D
• Lockshield: 87mm H x 75mm W x 34mm D

What's included

• 1 x Traditional 2 column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
• 1 x Thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
