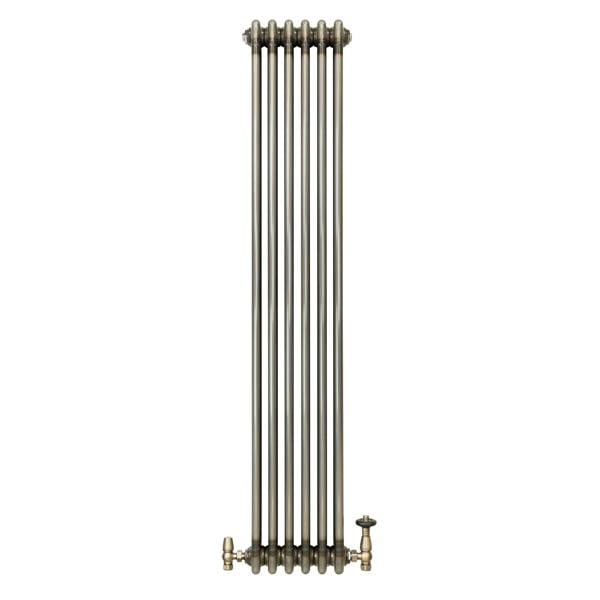

Traditional 3 Column Radiator & Valves – 1500mm x 290mm - Raw Metal

From MonsterShop, this traditional-style vertical radiator brings an industrial raw metal finish into the home while delivering dependable everyday heating. Its tall, slim profile makes it well suited to spaces where wall width is limited, and the lacquer-coated raw metal look gives it a distinctive presence that works comfortably in both traditional and more contemporary interiors.

Made from 1.5mm carbon steel, the radiator features steel tubes measuring 25mm and is designed for reliable performance across a range of heating systems. A thermostatic angled valve set is supplied for straightforward temperature adjustment, with a rotary knob control and an integrated lockshield valve to help regulate water flow. Fixtures and fittings are included, along with a flexible cleaning brush to help maintain the finish over time.

Key features

• Raw metal finish with lacquer coating
• Made from 1.5mm carbon steel
• 4572 BTU heat output at 60
• Angled thermostatic valve set with rotary knob control
• Adjustable temperature range from 6–28C
• CE and UKCA certified
• Tested to BS EN 442 and ISO9001:2015 standards
• 15-year radiator guarantee and 10-year valve guarantee

Specifications

• Weight: 19.8kg
• Number of columns: 6
• BTU rating at 50: 3640
• Watt rating at 50: 1067
• Watt rating at 60: 1340
• Maximum working temperature: 95C
• Maximum working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 7.1m²
• Heating surface area: 2.13m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Compatibility: All UK heating systems
• Valve material: Powder coated brass
• Valve weight: 0.9kg
• Valve type: Thermostatic
• Valve style: Angled
• Maximum bar pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

Sizing

• 1500mm H x 290mm W
• Radiator depth: 100mm
• Depth with bracket: 110mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 60mm
• Valve-to-valve height: 1424mm
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D

What's included

• 1 x traditional 3 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : T752MF53NN
