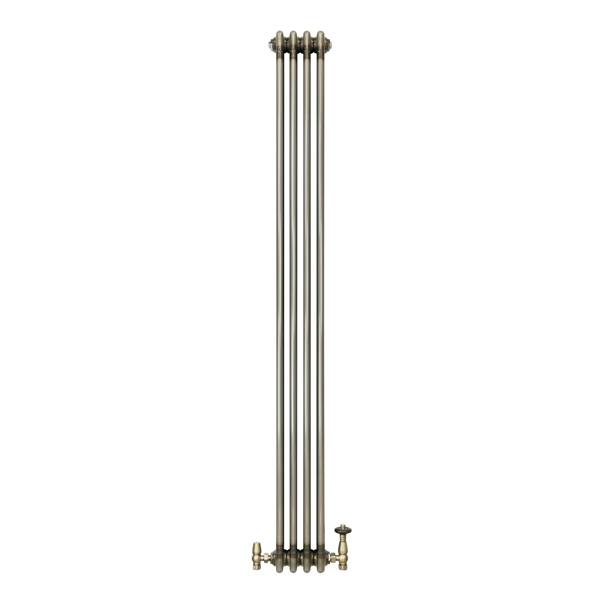

Traditional 3 Column Radiator & Valves – 1800mm x 200mm - Raw Metal

From MonsterShop, this traditional-style vertical radiator and valve set brings an industrial raw metal finish into the home while offering a practical heating solution for narrower wall spaces. Its tall, slim profile makes it well suited to rooms where floor space is limited, while the bold column design adds definition and character to the overall scheme.

Made from 1.5mm carbon steel with a lacquer coating, the radiator is designed for everyday reliability and is paired with an angled thermostatic valve set in a matching raw metal finish. The rotary knob allows temperature adjustment from 6–28C, while the integrated lockshield valve helps regulate water flow. With fixtures and fittings included, along with a flexible cleaning brush, it is equipped for straightforward installation and ongoing maintenance.

Key features

• Raw metal finish with lacquer coating
• Made from 1.5mm carbon steel
• Vertical design with 25mm steel tubes
• 3637 BTU heat output at 60
• Angled thermostatic valve set with rotary control
• Adjustable temperature range from 6–28C
• CE, UKCA and BS EN 442 certified
• 15-year radiator guarantee and 10-year valve guarantee

Specifications

• Maximum working temperature: 95C
• Maximum working pressure: 10 Bar
• Test pressure: 13 Bar
• Inlets/outlets size: Standard 0.5" BSP bore
• Compatibility: All UK and EU heating systems
• Testing: BS EN 442 and ISO9001:2015 standards
• Valve material: Powder coated brass
• Valve connection: 1/2" x 15mm
• Maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m

Sizing

• Radiator: 1800mm H x 200mm W
• Radiator depth: 100mm
• Depth with bracket: 110mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 60mm
• Valve-to-valve height: 1724mm
• TRV: 137mm H x 85mm W x 55mm D
• Lockshield: 87mm H x 75mm W x 34mm D

What's included

• 1 x traditional 3 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set
