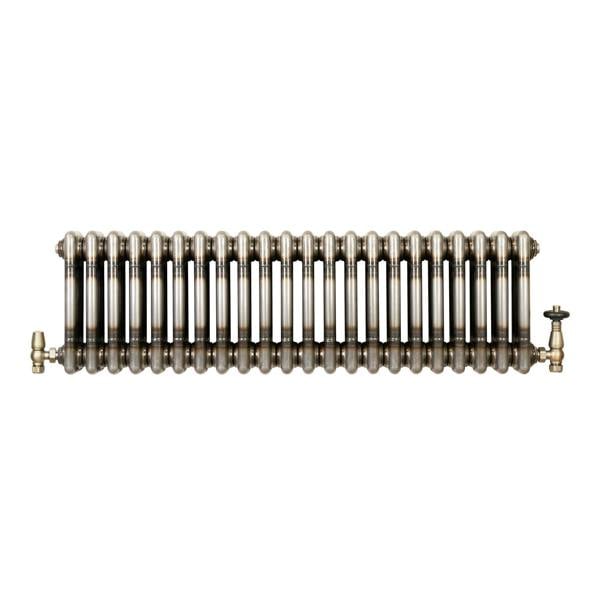

Traditional 3 Column Radiator & Valves – 300mm x 1010mm - Raw Metal

From MonsterShop, this traditional 3 column radiator and valve set brings an industrial raw metal finish to everyday heating. Designed for use with all UK and EU heating systems, it combines a horizontal format with a compact 300mm height, making it a practical choice for a range of interior spaces while adding a distinctive, characterful look.

Made from 1.5mm carbon steel with a lacquer coating, the radiator is built with 25mm steel tubes in a 22 column configuration. It is supplied with an angled thermostatic valve set in a matching raw metal finish, allowing precise temperature adjustment through a rotary knob with a 6-28 degree range. Secure brackets, a fixing kit and a flexible cleaning brush are also included for straightforward installation and upkeep.

Key features

• Raw metal finish with lacquer coating
• 1.5mm carbon steel construction
• 3818 BTU heat output at 60
• 22 column design with 25mm tubes
• Angled thermostatic valve set with rotary control
• 6-28 degree temperature range
• CE and UKCA certified
• 15 year radiator guarantee

Specifications

• Valve material: Powder coated brass
• Inlets/outlets size: Standard 0.5" BSP bore
• Connection: 1/2" x 15mm
• Maximum working temperature: 95C
• Maximum working pressure: 10 bar
• Test pressure: 13 bar
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Testing: BS EN 442 and ISO9001:2015 standards
• Valve guarantee: 10 years

Sizing

• 300mm H x 1010mm W
• Radiator depth: 100mm
• Depth with bracket: 110mm
• Gap between tubes: 45mm
• Distance from wall to centre of inlet: 60mm
• Valve-to-valve height: 324mm
• TRV: 137mm H x 85mm W x 55mm D
• Lockshield: 87mm H x 75mm W x 34mm D

What's included

• 1 x traditional 3 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : HAFTY8XV58
