Traditional 3 Column Radiator & Valves – 300mm x 1190mm - Raw Metal

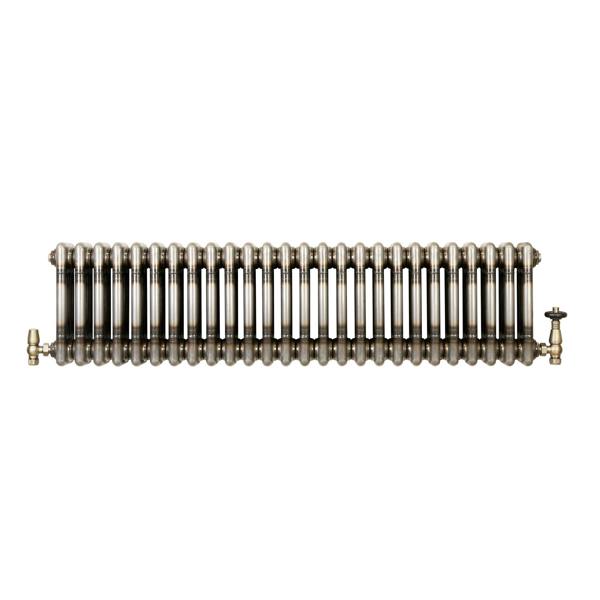

From MonsterShop, this traditional 3 column horizontal radiator brings an industrial raw metal finish to everyday heating. Designed to stand out as well as perform reliably, it combines a classic column profile with a bold, unfinished-look surface that adds character to living spaces, hallways or other compact rooms.

Made from 1.5mm carbon steel with a lacquer coating, the radiator is engineered for dependable heat output while maintaining its distinctive appearance over time. Its 26-column construction uses 25mm steel tubes, and the supplied angled thermostatic valve set allows straightforward temperature adjustment through a rotary knob. With all fixtures and fittings included, along with a flexible cleaning brush, it is prepared for installation and ongoing care.

Key features

• 1.5mm carbon steel construction with lacquer coating
• Raw metal finish
• 26-column horizontal design with 25mm steel tubes
• BTU rating @ 60: 4514
• Standard 0.5" BSP inlet and outlet
• CE and UKCA certified
• Tested to BS EN 442 and ISO9001:2015 standards
• 15-year radiator guarantee and 10-year valve guarantee

Specifications

• Maximum working temperature: 95C
• Maximum working pressure: 10 Bar
• Test pressure: 13 Bar
• Compatibility: all UK and EU heating systems
• Valve material: powder coated brass
• Valve style: angled
• Valve type: thermostatic
• Temperature range: 6–28C
• Valve maximum bar pressure: 10
• Valve maximum flow temperature: 100 Degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm

Sizing

• Radiator: 300mm H x 1190mm W
• Radiator depth: 100mm
• Depth with bracket: 110mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 60mm
• Valve-to-valve height: 324mm
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D

What's included

• 1 x traditional 3 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
