Traditional 3 Column Radiator & Valves - 300mm x 650mm - Raw Metal

From MonsterShop, this traditional 3 column radiator and valve set brings together an industrial raw metal finish with practical heating performance. Designed for a range of interiors, it offers a distinctive look while providing dependable warmth for everyday living spaces.

Made from 1.5mm carbon steel with a lacquer coating, the radiator features 14 columns and 25mm steel tubes. Its raw metal appearance adds character to the room, while the angled thermostatic valves allow straightforward temperature adjustment through a rotary knob. A lockshield valve is also included to help regulate water flow, and the supplied cleaning brush makes ongoing maintenance easier.

Key features

• 1.5mm carbon steel construction with lacquer coating
• Raw metal finish
• 14-column design with 25mm tubes
• 2429 BTU heat output at 60
• Angled thermostatic valve set with rotary knob control
• Adjustable temperature range from 6–28C
• CE and UKCA certified, tested to BS EN 442 and ISO9001:2015 standards
• 15-year radiator guarantee

Specifications

• Valve material: Powder coated brass
• Maximum working temperature: 95C
• Maximum working pressure: 10 Bar
• Test pressure: 13 Bar
• Inlets/outlets size: Standard 0.5" BSP bore
• Connection: 1/2" x 15mm
• Nominal flow rate: 2.8L/m
• Maximum flow temperature: 100 Degrees

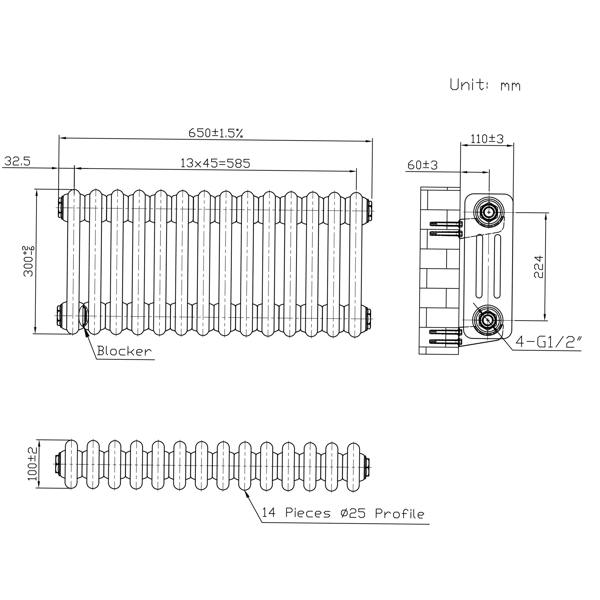

Sizing

• 300mm H x 650mm W
• Radiator depth: 100mm
• Depth with bracket: 110mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 60mm
• Valve-to-valve height: 324mm
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D

What's included

• 1 x Traditional 3 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
