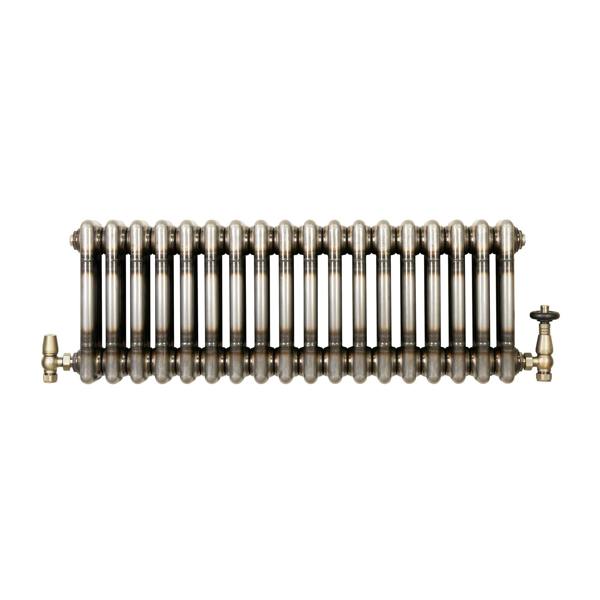

Traditional 3 Column Radiator & Valves – 300mm x 830mm - Raw Metal

From MonsterShop, this traditional 3 column horizontal radiator brings an industrial raw metal finish to spaces that call for both character and dependable everyday heating. Its bold, exposed look is balanced by a compact horizontal format, making it well suited to a range of interiors while offering a practical solution for smaller heating areas.

Made from 1.5mm carbon steel with a lacquer coating, the radiator features 18 columns with 25mm steel tubes and is designed for reliable performance. It delivers a heat output of 3125 BTU at 60 and comes supplied with an angled thermostatic valve set in a matching raw metal finish. The rotary knob allows temperature adjustment from 6-28 degrees, while the integrated lockshield valve helps regulate water flow. With CE and UKCA certification, testing to BS EN 442 and ISO9001:2015 standards, and a 15-year guarantee on the radiator, it is a considered choice for those looking to combine traditional styling with modern heating control.

Key features

• Raw metal finish with lacquer coating
• 18-column design with 25mm steel tubes
• Heat output of 3125 BTU at 60
• Supplied with angled thermostatic valve set
• Rotary temperature control from 6-28 degrees
• Standard 0.5" BSP inlet and outlet size
• Compatible with all UK and EU heating systems

Sizing

• Radiator: 830mm W x 100mm D x 300mm H
• Depth with bracket: 110mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 60mm
• Valve-to-valve height: 324mm
• TRV: 137mm H x 85mm W x 55mm D
• Lockshield: 87mm H x 75mm W x 34mm D

Specifications

• Material: 1.5mm carbon steel radiator
• Material: Powder-coated brass valves
• BTU rating @ 50: 2487
• Watt rating @ 50: 729
• Watt rating @ 60: 916
• Maximum working temperature: 95C
• Maximum working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 4.9m²
• Heating surface area: 1.3m²
• Connection: 1/2" x 15mm
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m

What's included

• 1 x traditional 3 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Care

Use the included flexible cleaning brush to help maintain the radiator.

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
