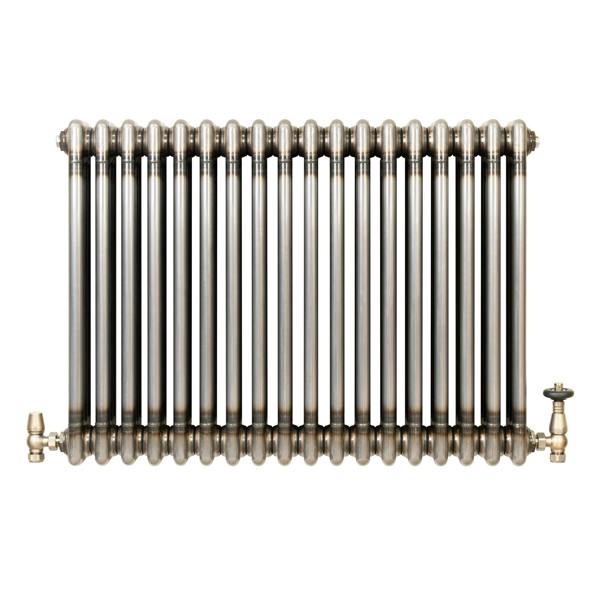

Traditional 3 Column Radiator & Valves – 600mm x 830mm - Raw Metal

From MonsterShop, this traditional 3 column horizontal radiator and valve set brings an industrial raw metal finish to everyday heating. Designed to make a visual impact as well as provide dependable warmth, it suits a range of interiors and offers a distinctive alternative to more conventional finishes.

Made from 1.5mm carbon steel with a lacquer coating, the radiator features 18 columns and 25mm steel tubes. It is engineered for reliable heat output, with a thermostatic angled valve set for straightforward temperature adjustment from 6-28C using a rotary knob. A lockshield valve helps regulate water flow, while the standard 0.5" BSP inlet and outlet size offers compatibility with all UK and EU heating systems. Fixtures and fittings are included, along with a flexible cleaning brush for ongoing maintenance.

Key features

• Raw metal finish with lacquer coating
• Made from 1.5mm carbon steel
• 18-column horizontal design with 25mm tubes
• 5773 BTU heat output at 60
• Thermostatic angled valve set with rotary knob control
• Adjustable temperature range from 6-28C
• CE and UKCA certified
• 15-year radiator guarantee

Specifications

• Valve material: Powder coated brass
• BTU rating @ 50: 4595
• Watt rating @ 50: 1347
• Watt rating @ 60: 1692
• Maximum working temperature: 95C
• Maximum working pressure: 10 bar
• Test pressure: 13 bar
• Recommended application area: 9m²
• Heating surface area: 2.58m²
• Inlets/outlets: Standard 0.5" BSP bore
• Compatibility: All UK and EU heating systems
• Testing: BS EN 442 and ISO9001:2015 standards
• Valve style: Angled
• Valve type: Thermostatic
• Maximum valve pressure: 10
• Maximum flow temperature: 100 degrees
• Nominal flow rate: 2.8L/m
• Connection: 1/2" x 15mm
• Valve guarantee: 10 years

Sizing

• 600mm H x 830mm W
• Radiator depth: 100mm
• Depth with bracket: 110mm
• Gap between tubes: 45mm
• Individual tube size: 25mm
• Distance from wall to centre of inlet: 60mm
• Valve-to-valve height: 524mm
• TRV dimensions: 137mm H x 85mm W x 55mm D
• Lockshield dimensions: 87mm H x 75mm W x 34mm D

What's included

• 1 x traditional 3 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.
