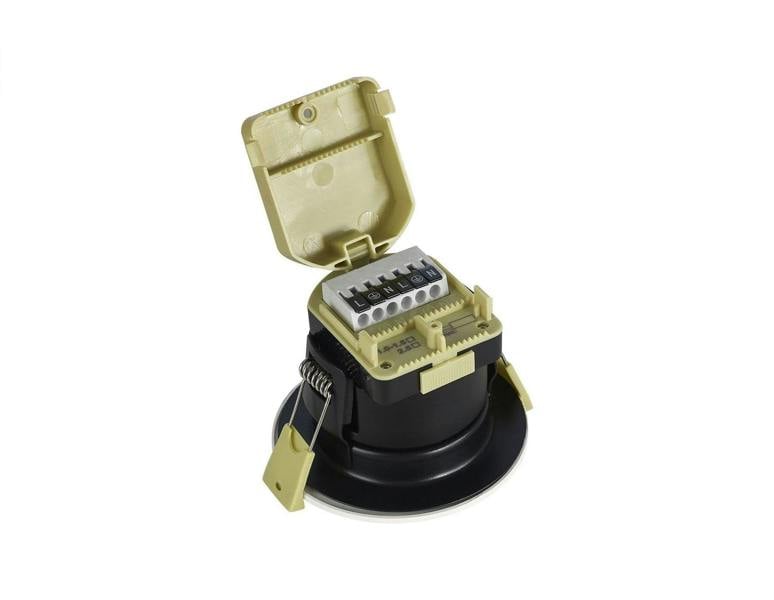

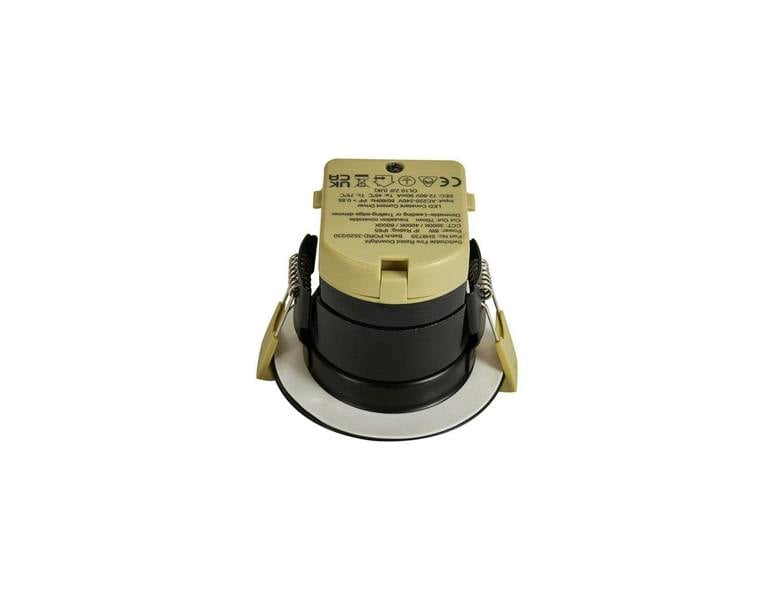

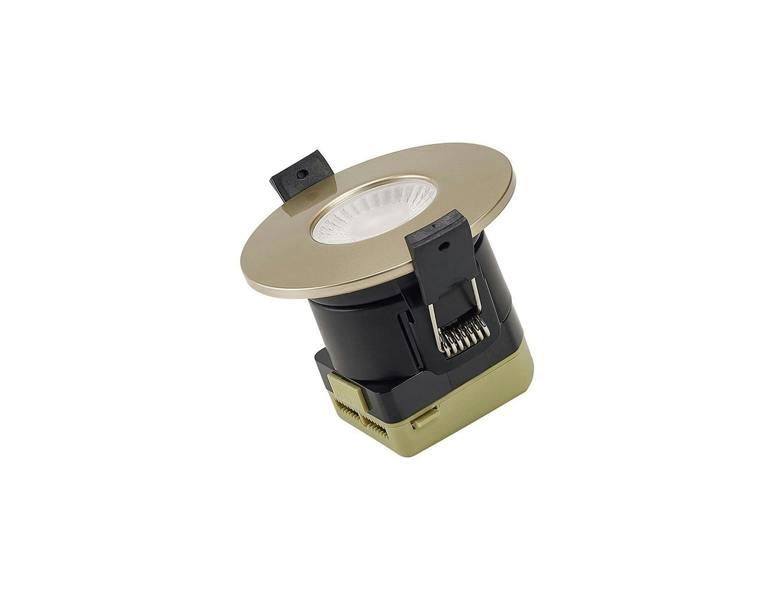

Trendi Switch Dimmable IP65 CCT LED Fire Rated Downlight in Champagne Gold

8W, 90mA, Dimmable CCT LED Fire Rated Downlight, WITHOUT FASCIA, Cut Out: 70mm, 900lm, 60

Deg, IP65 DRIVER INC. , 5yrs Warranty (4LT108A)

DATA SHEET

MARKETING INFORMATION

Brief Description - 8W, 90mA, Dimmable, CCT LED Fire Rated Downlight,WITHOUT FASCIA, Cut Out:70mm, 60 Deg, IP65

Catalogue Description - Fire Rated LED Downlight

PHYSICAL CHARACTERISTICS

Colour Finish - Black

Colour Finish 2 - Green

Type of Finish - Powder Coated

Recessable - Yes

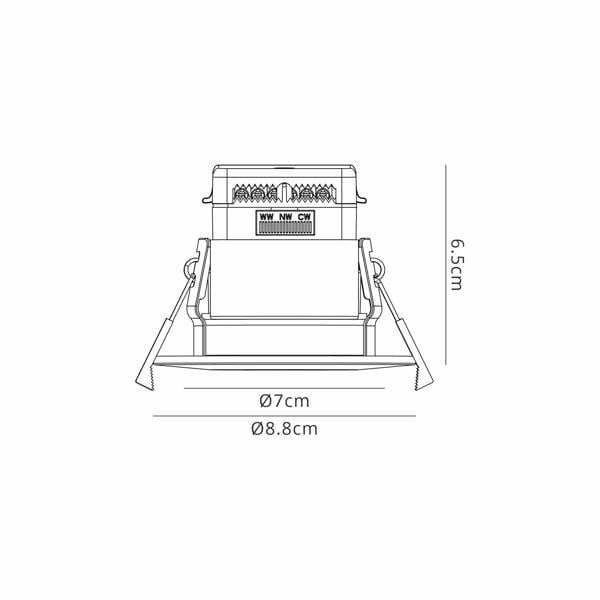

MECHANICAL SPECIFICATION

Item Nett Weight (kg) - 0. 2kg

Diameter (mm) - 88mm

Height (mm) - 65mm

Horizontal Adjustment () - No

Vertical Adjustment () - No

Cut Out (mm) - 70mm

Materials Used - Aluminium + Plastic

ENERGY SPECIFICATION

Energy Class - A++ to A

LAMP SPECIFICATION

No: of Lamp - 1

Lamp Socket - Integral LED

Recommended Lamp - Integral LED

Max Wattage Lamp (W) - 8W

Lamp Included - Yes - Integrated

Type of Lamp Included - Integrated LED

Brand of Lamp - Hongli

Colour Temperature (K) -3000/4000/6000K Warm/Cool/Daylight White (±5%)

LED SPECIFICATION

Average Life of LED (hrs) - 50000hrs

LED Voltage (V) - 9. 1V ( ±5%)

Type of LED - SMD

OPTICAL SPECIFICATION

Lumens Per LED - 125Im

Beam Angle () - 60

System Flux (lm) - 900Im ( ±5%)

CRI - >80

UGR - <=24

DRIVER SPECIFICATION

Driver Included - Yes

Type of Driver Required - Integrated

Type of Driver - Constant Current

Power Factor (?) - >0. 85? ( ±5%)

Constant Current Output (mA) - 90mA

Min/Max. Voltage Output (V) - 72-80V DC

Load Range (W) - 6. 5-7. 2W

Ta (C) - 45

Tc (C) - 75

Average Life Of Driver (hrs) - 30000hrs

Wattage Required (W) - 8W

Voltage Required (V) - 220-240V~50/60Hz

Current Required (mA) - 0. 042A

ELECTRICAL & SAFETY SPECIFICATION

Protection Class - Class 1 - Earth Connection Required

Thermal Class - Insulation Coverable

Total Power Consumption (W) - 8W ( ±5%)

Input Voltage (V) - 220-240V~50/60Hz

Input Current (A) - 0. 042A

Dimmable - Yes

Dimmer Included - No

IP Rating - IP65

QUALITY STANDARDS

Average Life (hrs) - 50000hrs

Warranty (yrs) - 5yrs

CE - Yes

Rohs - Yes

EMV/EMC - Yes

Additional Certification - Fire Rated

CARTON INFORMATION

Number of Cartons - 1

Carton CBM - 0. 000712

Carton Gross Weight (kg) - 0. 20kg ( ±5%)

UK Commodity Code - 9405119090

Country of Origin - China

OVERVIEW

This range of integral LED downlights with a wide variety of features available in 24

colour finishes. The CCT dimmable function can be set at 3000K, 4000K or 6000K. Each

downlight is both fire rated with an IP65 rating. They can also be covered by insulation

materials making them suitable for an extensive number of indoor and outdoor settings. Zafira

also offers fascias in an array of colours to further enhance your chosen downlight.

Rackhams Reference : L56KSBC2SZ
