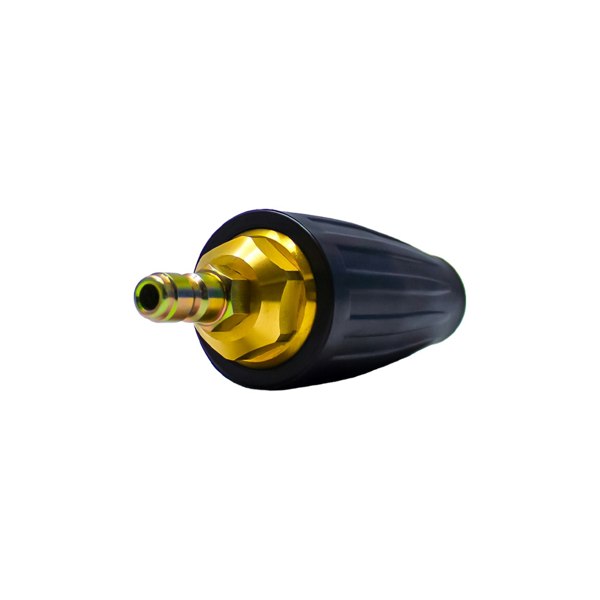

Turbo Nozzle 5200 PSI / 350 bar for Industrial Pressure washer

Built for demanding washdowns, the Heavy Duty Turbo Nozzle is designed for industrial pressure washer work where concentrated, fast-acting cleaning is required. Rated up to 5200 PSI (350 bar), it uses a spinning mechanism to intensify the spray action for tackling stubborn dirt, grease and grime on hard surfaces.

It is well suited to block paving, including removing moss and green algae, and can also be used for stripping flaking paint from brickwork. Connection is straightforward on common setups, fitting standard lances with a 1/4" male threaded end or a 1/4" (11.6mm) quick-release outlet. Heat tolerance is up to 90°C for use in higher-temperature cleaning applications.

Key features

• Maximum pressure: 5200 PSI (350 bar)
• Heat tolerance up to 90°C
• Spinning mechanism to intensify cleaning action
• Suitable for stubborn dirt, grease and grime on tough surfaces
• Suitable for stripping flaking paint from brickwork
• Suitable for block paving, including moss and green algae removal
• Fits standard lances with a 1/4" male threaded end
• Fits a 1/4" (11.6mm) quick-release outlet

Specifications

• Product type: turbo nozzle
• Maximum pressure: 5200 PSI / 350 bar
• Maximum temperature: 90°C
• Connection: 1/4" male threaded end
• Connection: 1/4" (11.6mm) quick-release outlet

Typical use cases

• Removing stubborn dirt, grease and grime from tough surfaces
• Stripping flaking paint from brickwork
• Cleaning block paving
• Eliminating moss and green algae

Nozzle size chart guidance

Use a pressure washer nozzle size chart to select the correct nozzle for your pressure washer. For example: if you have a pressure washer rated at 100 Bar and 11 litres/min start at the 100 bar column, slide down until you get to the number nearest 11, in this case 11.3, now look to the green column which is a 05 nozzle. Now decide which angle spray pattern best suits your needs.

Note: pressure conversion. If you want to convert PSI to BAR, divide the PSI value by 15.

Rackhams Reference : 3DAFLWCDWX
