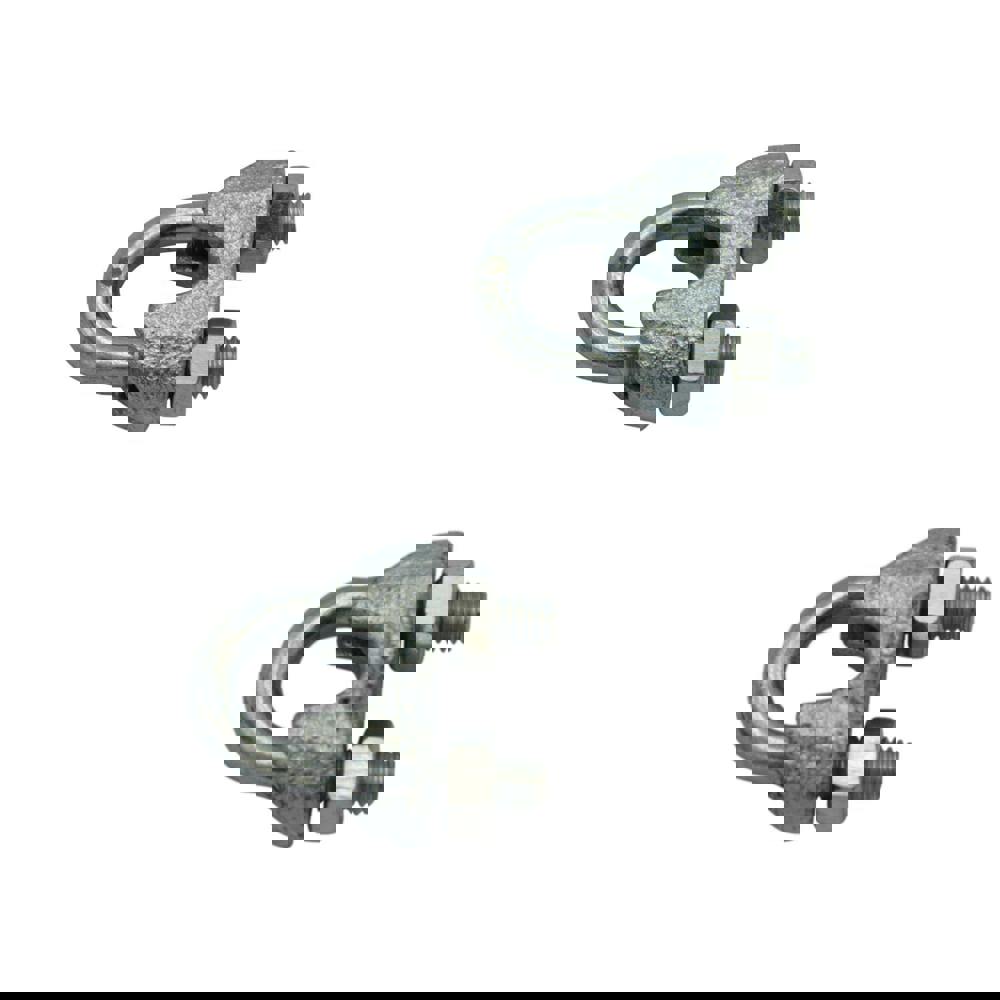

26MM Wire Rope Grips X2 - DIN741 Commercial Bulldog Cable Clip

Designed for secure wire rope terminations, these DIN741 commercial wire rope grips from Rackhams are supplied as a set of 2, sized to suit 26mm wire rope. Finished in galvanised metal for corrosion resistance, they’re a practical choice for applications where wire rope needs to be formed into a loop, including use aboard boats, in public areas and for yacht rigging.

For best results, correct fitting and ongoing checks are essential. Follow the recommended orientation and tightening guidance to help maintain a secure hold during service.

Key features

• DIN741 commercial wire rope grips
• Suitable for 26mm wire rope
• Galvanised finish for corrosion resistance
• Pack quantity: 2
• Designed for creating loops in wire rope

Sizing

• A: 49mm
• B: 26mm
• C: 33mm
• D: 13mm
• E: 93mm
• F: 37mm
• G: 65mm

Care

Prior to fitting, grease the threads on the nuts and bolts. During service, periodically check the torque setting and re-tighten if necessary.

Safety information

• Space grips at least 6 times the diameter of the rope
• Fit with the ‘U’ bolt on the unloaded end of the rope and ensure correct orientation
• Tighten each nut evenly and in turn to achieve the recommended torque settings
• Leave unused for 24 hours, then re-check torque settings and re-tighten if required
• After the first application of load, re-check torque settings and re-tighten if required
• Periodically re-check torque settings during service
