400L Soakaway Crate Kit with Geotextile Membrane & Tape | Pennine Drainage System | Spudulica

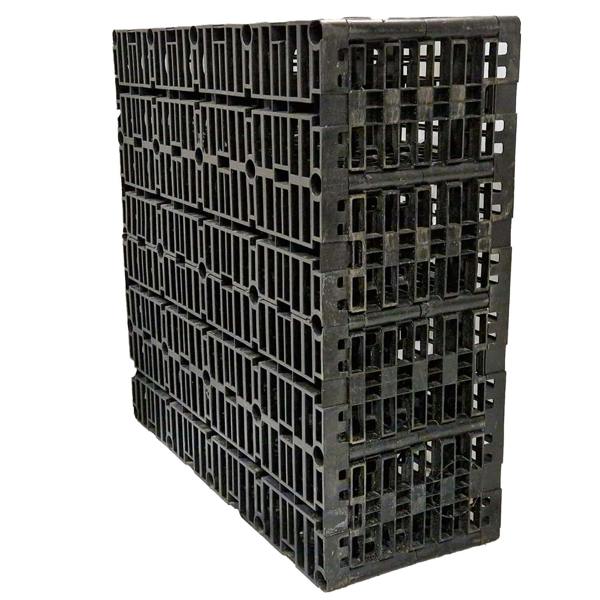

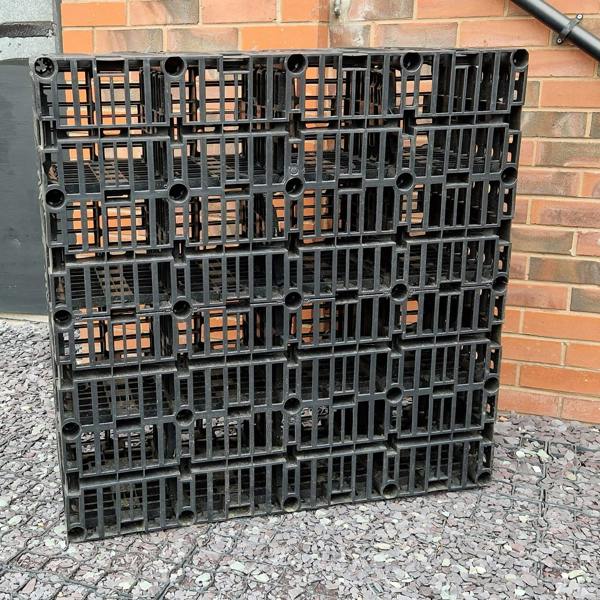

From Spudulica, this high load-bearing large soakaway kit is built around the Pennine 400L crate system for managing excess rainwater. Designed to help reduce flooding and waterlogging, it allows surface water to be absorbed and dispersed into the ground, making it suitable for drainage and attenuation projects where reliable underground water management is required.

The modular crate design offers flexibility when configuring a system to suit different site requirements, while the included non-woven geotextile and geotextile tape are supplied to wrap the connected crates securely. This helps water flow into the installed crates while reducing the risk of soil or debris filling the void. With a high vertical load capacity and suitability for HGV traffic, the kit is appropriate for both light and heavy-duty applications.

Key features

• Supports up to 100 tonnes/m² vertical load
• Suitable for both light and heavy-duty applications, including HGV traffic
• Modular design for flexible size and shape configuration
• Non-woven geotextile and geotextile tape included
• Geotextile is supplied to cover connected crates in their smallest configuration
• Material: Recycled polypropylene
• Recyclable at the end of its use

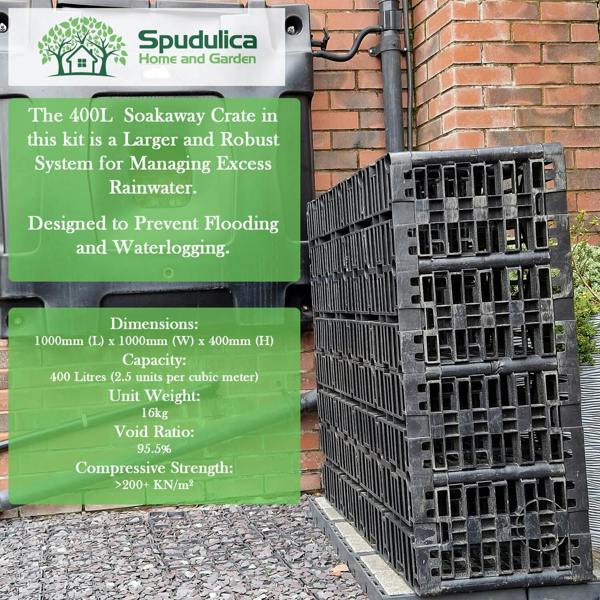

Specifications

• Capacity: 400 litres
• Unit weight: 16kg
• Void ratio: 95.5%
• Compressive strength: >200+ KN/m²
• Lateral strength: >70+ KN/m²

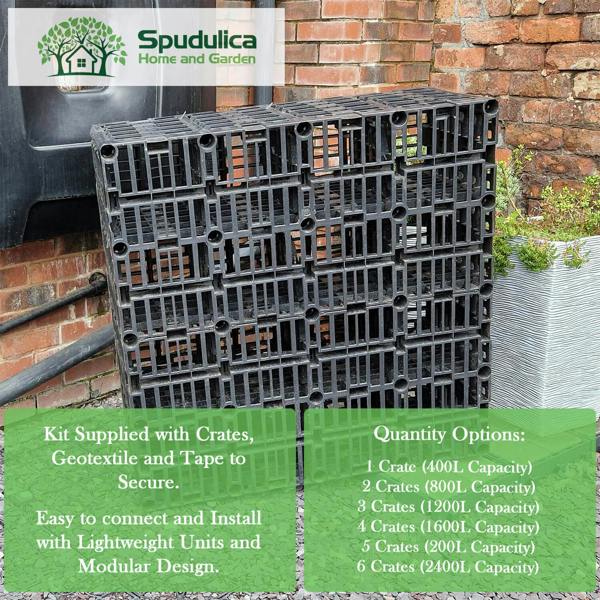

Sizing

• 1000mm L x 1000mm W x 400mm H
• 1 Crate: 400L capacity
• 2 Crates: 800L capacity
• 3 Crates: 1200L capacity
• 4 Crates: 1600L capacity
• 5 Crates: 2000L capacity
• 6 Crates: 2400L capacity

What's included

• Spudulica geotextile tape
• Spudulica non-woven geotextile sized for your kit
• The required number of 400L crates for the selected kit capacity

Please note

If the crates are used separately, the supplied geotextile may not be sufficient.

Delivery information

Palletised kerbside delivery
