Shallow Soakaway Crate Kits | Low Depth Drainage System with Crates & Geotextile | Spudulica

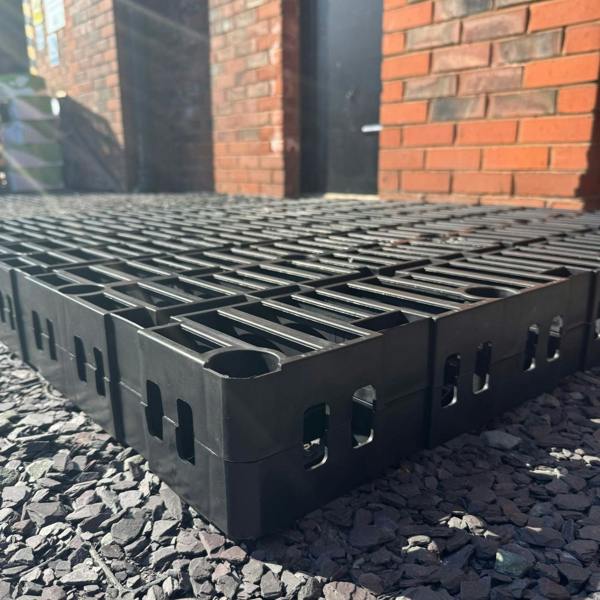

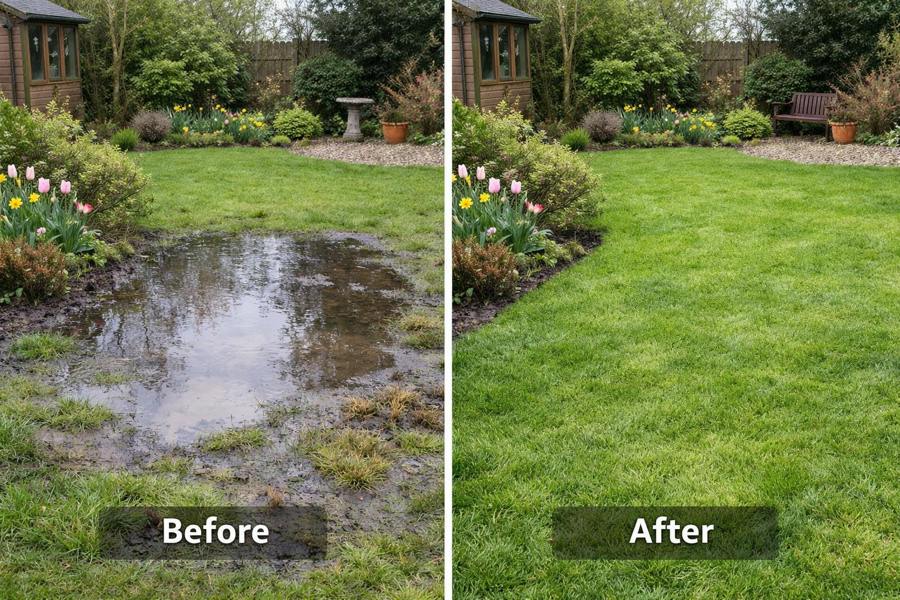

From Spudulica, this Shallow Soakaway Kit Solutions set is designed to help manage surface water in areas where a lower dig depth is needed. Built around Pennine shallow 100L soakaway crates, the kit channels gathered water below the surface and into the ground, helping to clear lawns and landscaped spaces more effectively and reduce standing water.

Its shallow-dig format is suited to installations with limited cover depth, including pedestrian and landscaped areas. The included cut-to-size 100gsm non-woven geotextile membrane and joining tape support a secure installation, while the crate design offers a 91% void and high lateral strength. Multiple capacity options are available, with larger kits made up of multiple 100L crates.

Key features

• 91% void
• High lateral strength
• Suitable for little cover depth, for example 250mm
• Designed for pedestrian and landscaped areas

Sizing

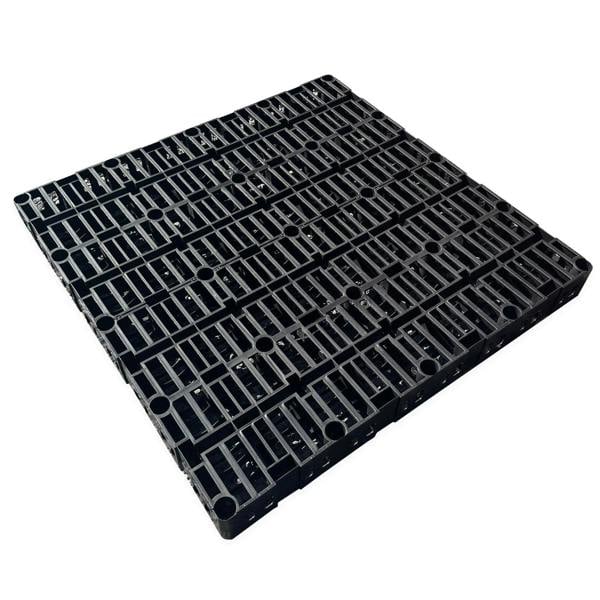

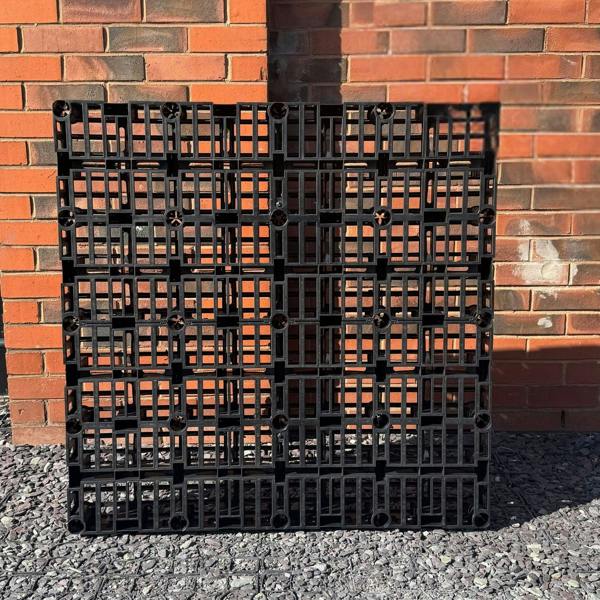

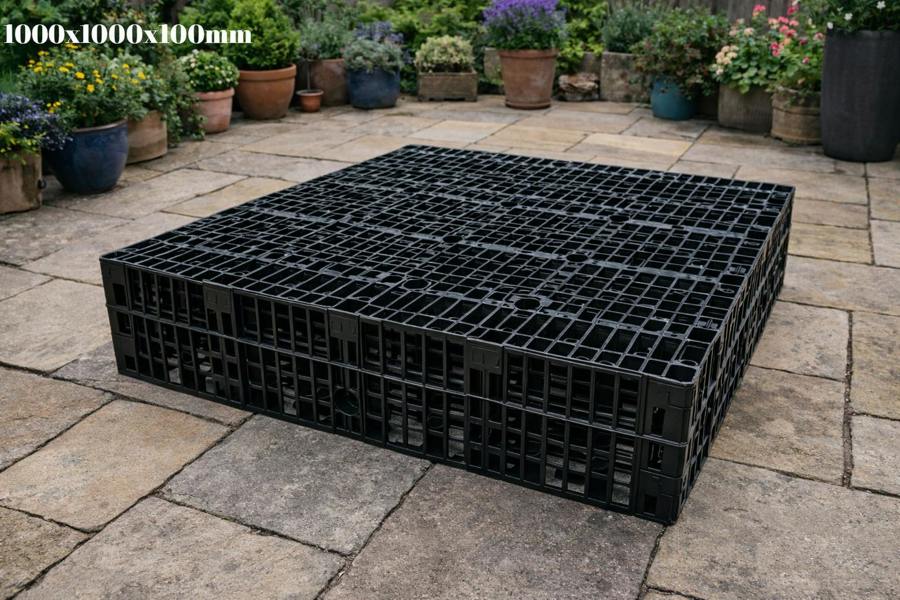

• Crate dimensions: 1000mm x 1000mm x 100mm
• Capacities available: 100L, 200L, 300L, 400L, 500L, 600L, 800L, 900L and 1000L
• Crate storage volume: 100L
• Crate weight: 8kg approx.

What's included

• Pennine 100L crate
• Spudulica 100gsm non-woven geotextile membrane, cut to size for the kit

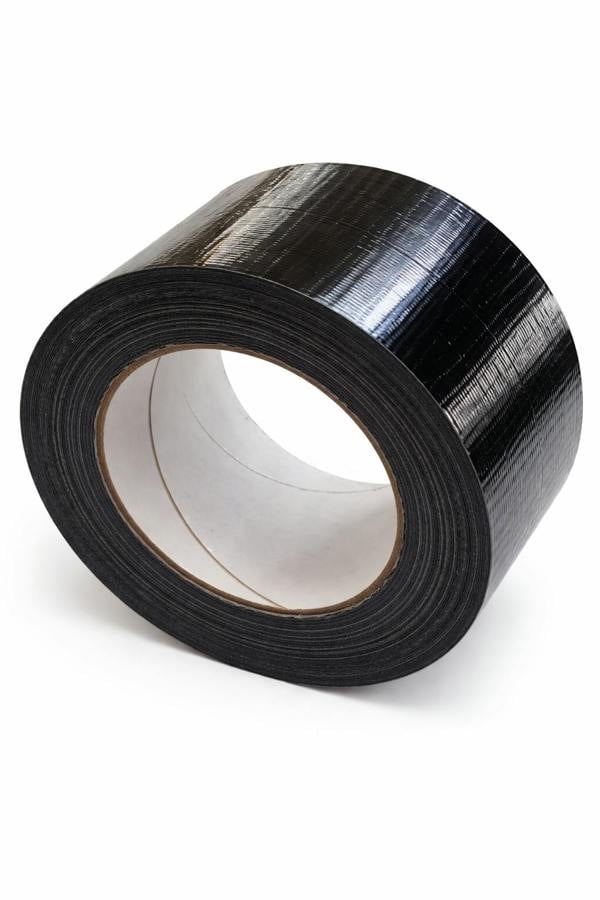

• Joining tape to suit

Please note

• Before installation, carry out a percolation test to ensure the ground is suitable for a soakaway

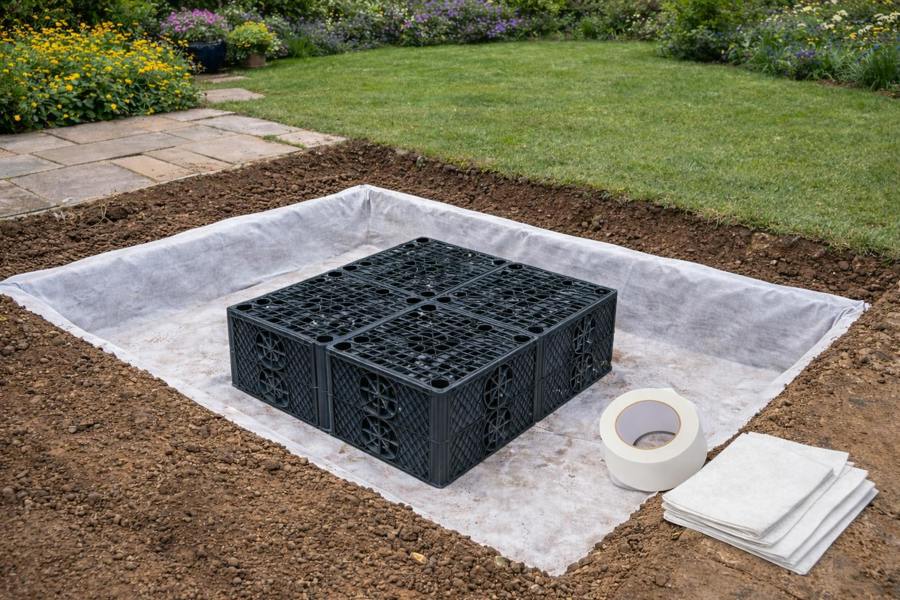

• The geotextile is sized for the kit with crates laid laterally side by side along a length, with the short sides next to each other
• For 100L crates in the smallest size, the geotextile is calculated as a 2.25m width and linear length piece
• If crates are separated, the supplied geotextile may not be sufficient

Rackhams Reference : QV7P49RUD2
