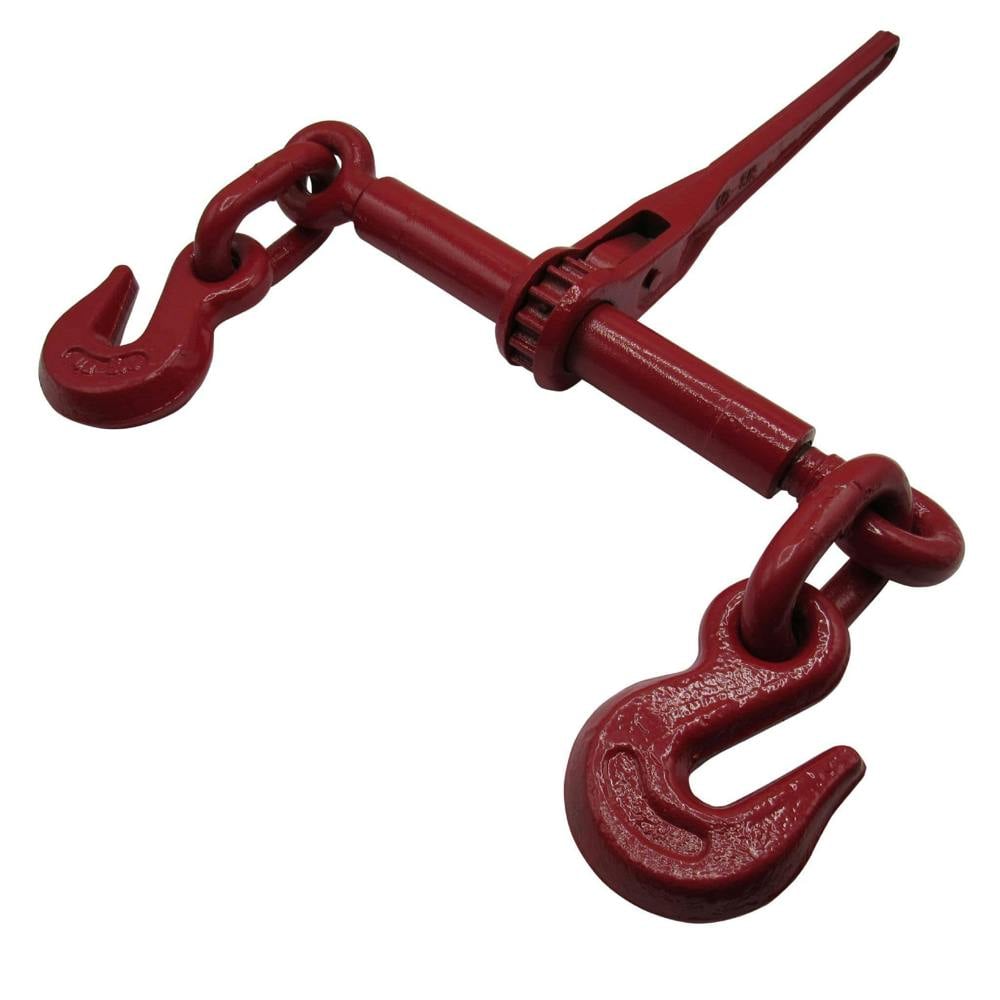

5/16" - 3/8" Drop Forged Ratchet Loadbinder - Chain Binder Tightening

Designed for chain lashings, these Ratchet Load Binders provide controlled tensioning for heavy load securing across transport and haulage, plant and machine moving, and a wide range of agricultural applications. Operation is straightforward: pull on the ratchet handle to remove slack from the chain, helping you secure goods efficiently for onward travel.

Drop forged for strength and finished in red paint, each load binder is built for demanding working environments where durability and versatility matter.

Key features

• Ratchet Load Binder for use with chain lashings
• Suitable for heavy load securing
• Easy-to-use ratchet handle for removing chain slack
• Drop forged construction
• Painted red finish
• Suitable for transport and haulage, plant and machine moving, and agricultural applications

Sizing

• 6MM: A 235mm, B 40.3mm, C 10.25mm, D 170mm, E 405mm, F 8mm
• 8MM: A 390mm, B 65mm, C 13.5mm, D 250mm, E 585mm, F 8 - 10mm
• 10MM: A 375mm, B 61.96mm, C 15.89mm, D 255mm, E 685mm, F 15.50mm
• 12MM: A 375mm, B 62.23mm, C 16.37mm, D 255mm, E 740mm, F 17.31mm

Specifications

• Breaking load (6MM): 4.1 Ton
• Breaking load (8MM): 8.5 Ton
• Breaking load (10MM): 15 Ton
• Breaking load (12MM): 20.5 Ton
