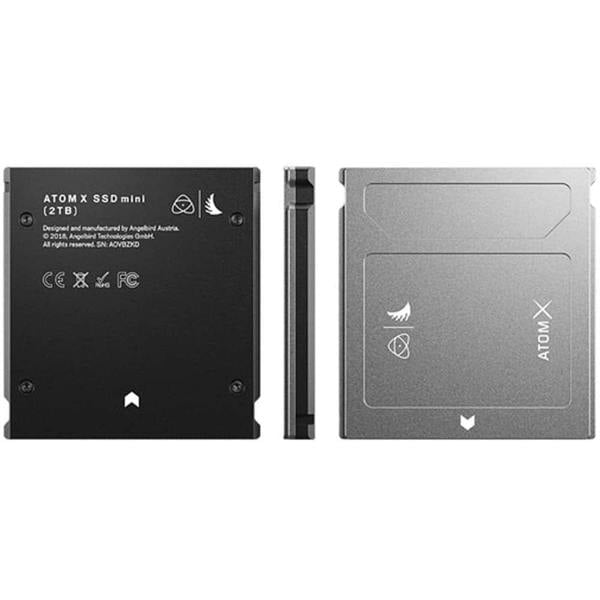

Angelbird AtomX SSDmini 2TB

Built for demanding Atomos recording workflows, the Angelbird AtomX SSDmini 2TB is a custom recording SSD that combines a compact format with sustained high-speed performance. This official Atomos recording SSD is 20% smaller than a typical SATA SSD and supports recording workflows up to 8K, making it a strong fit for professional video capture across compatible monitor-recorders.

Consistent write performance is central to its specification, with a sustained write speed of 500 MB/s and stable stream technology supporting reliable, uninterrupted high-resolution recording across the drive’s full capacity. It supports Apple ProRes, ProRes RAW, Avid DNx and CDNG, with codec and resolution support varying by host device. Protection against high temperatures, stress, x-rays, electromagnetic fields, overload and ESD adds further resilience for production environments.

Key features

• 2TB capacity
• Custom recording SSD for Atomos workflows up to 8K
• 20% smaller than a typical SATA SSD
• Sustained write speed: 500 MB/s
• Supports Apple ProRes, ProRes RAW, Avid DNx and CDNG
• Stable stream technology
• Temperature sensor, TRIM, ECC, EMS protection, built-in cache, SMART and NCQ
• CE, FCC, REACH and RoHS certified
• Model number: AB-ATOMXMINI2000PK

Specifications

Performance

• Max. read speed: 560 MB/s
• Max. write speed: 540 MB/s
• Sustained read speed: 520 MB/s
• Sustained write speed: 500 MB/s
• Endurance: up to 6,000 TBW
• MTBF: 2,400,000 hours
• Data retention: 10 years at 25 C

Compatibility

• Compatible with Ninja V, Ninja V+, Ninja Flame, Ninja Inferno, Neon, Shogun 7, Shogun Flame, Shogun Inferno, Sumo 19, Shogun Studio 1/2
• Sumo 19 and Shogun Studio 1/2 require Adapter Handle
• Compatible with Atomos products that use the Master Caddy and Master Caddy II guide rail systems
• Apple ProRes / Avid DNx: up to 4k60p, 2k240p
• Apple ProRes RAW: up to 8k30p, 6k30p, 5. 7k30p, 4k120p, 2k240p
• CDNG: up to 4k30p, 2k120p

Technical

• Form factor: SSD mini
• Interface: SATA 3. 1, 6 Gb/s - backwards compatible
• Over provisioning: 9 %
• DC input voltage: 5 V ± 10 %
• Power usage (idle | max): 0. 35 W / 3. 5 W
• Built-in EDC - ECC function

Environmental

• Shock resistance (non-operating): 1500 G
• Shock resistance (operating): 50 G
• Vibration resistance (non-operating): 20 G
• Vibration resistance (operating): 3. 1 G
• Operating temperature: -20 C | 70 C
• Storage temperature: -40 C | 85 C
• Operating humidity: 5 % to 95 % non-condensing

Sizing

• 80. 0mm W x 75. 5mm D x 9. 3mm H

In the box

AtomX SSDmini

Support & warranty

• 3-year limited warranty if activated within 30 days of purchase
• Personalised customer care
• Technical support
• Free data recovery services on both the hard drive and software from the Austrian Angelbird tech team

Safety information

• Overload protection
