Berkfield Electric Winch 1360 KG Plate Roller Fairlead Wireless Remote Control

For vehicle recovery, the Berkfield electric winch combines a maximum line pull of 1360 kg with a 1.2 HP DC 12 V permanent magnet motor for intermittent duty application. The free spool clutch is operated by a pull-and-turn knob, disengaging the gearbox so the wire rope can be pulled out without electric power.

A tension plate helps reduce backlash and snaring when pulling out the wire rope. Differential planetary gearing with a 153:1 gear ratio supports controlled operation, while the supplied mounting plate, roller fairlead, and both wireless and wired remote controls provide a practical setup for recovery use.

Key features

• Maximum line pull: 1360 kg
• 1.2 HP, DC 12 V permanent magnet motor
• Suitable for intermittent duty application
• 153:1 gear ratio
• Differential planetary gearing
• Wire rope length: 9 m
• Maximum current: 145 Amp
• Weight: 6.5 kg

Specifications

• Control: wire remote switch and wireless remote control switch
• Drum diameter: 31.75 mm

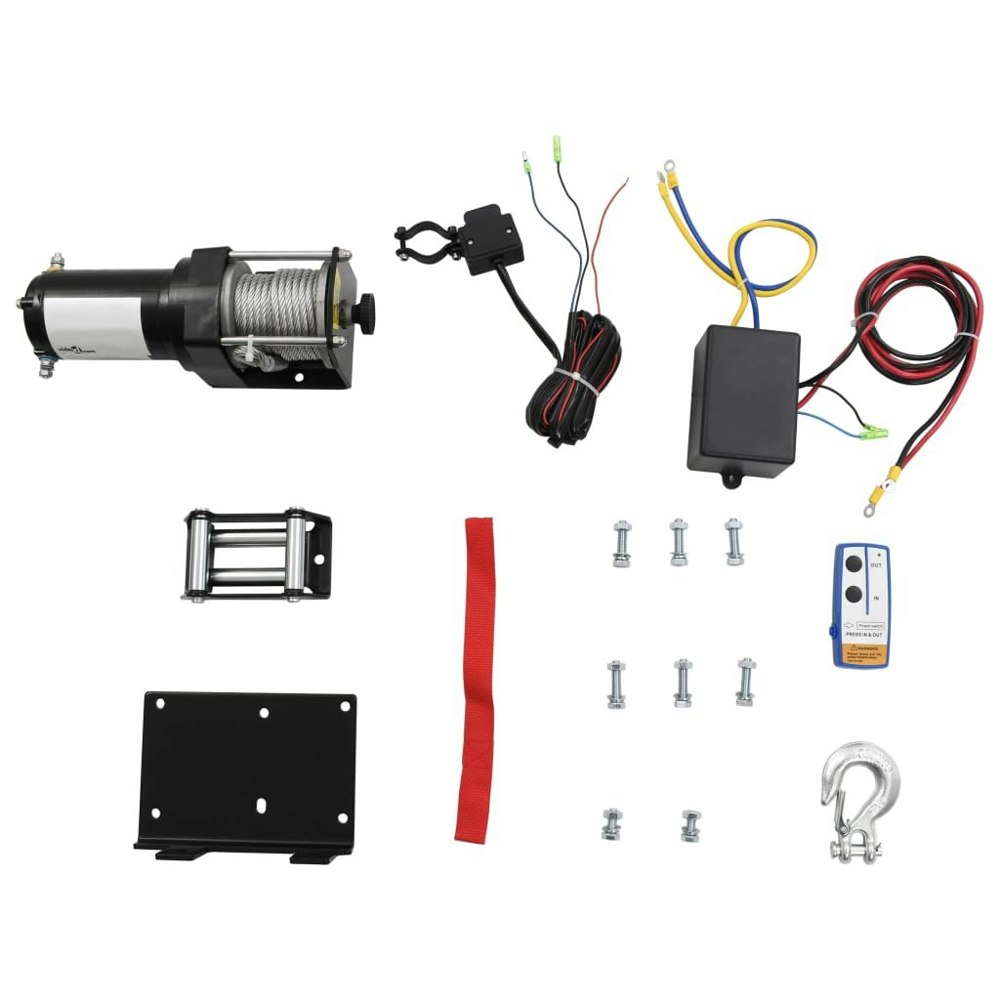

What's included

• 1 x mounting plate
• 1 x roller fairlead
• 1 x wireless remote control
• 1 x wire remote control
• 1 x hook with cable
• Power cable
• Mounting accessories such as screws and nuts

Sizing

• Dimensions: 285 x 105 x 105 mm (L x W x H)

About this product

Who is it for

Suited to users carrying out vehicle recovery with an electric winch setup for intermittent duty application.

When and where to use it

Suitable for vehicle recovery where controlled wire rope operation and remote control access are required.
