Berkfield Electric Winch 1360 KG with Plate Roller Fairlead

For vehicle recovery, the Berkfield electric winch combines a 1360 kg maximum line pull with a 12 V permanent magnet motor and differential planetary gearing. The free spool clutch is operated by a pull-and-turn knob, disengaging the gearbox so the wire rope can be pulled out without electric power.

A tension plate helps reduce backlash and snaring when extending the 9 m wire rope. This winch is suitable for intermittent duty application and is supplied with a mounting plate and roller fairlead for installation.

Key features

• Maximum line pull of 1360 kg
• 1.2 HP, DC 12 V permanent magnet motor
• Maximum current: 145 Amp
• Gear ratio: 153:1
• Differential planetary gearing
• Wire rope length: 9 m
• Winch weight: 5.5 kg
• Net weight with accessories: 9 kg

Specifications

• Drum diameter: 31.75 mm
• Includes mounting plate and roller fairlead

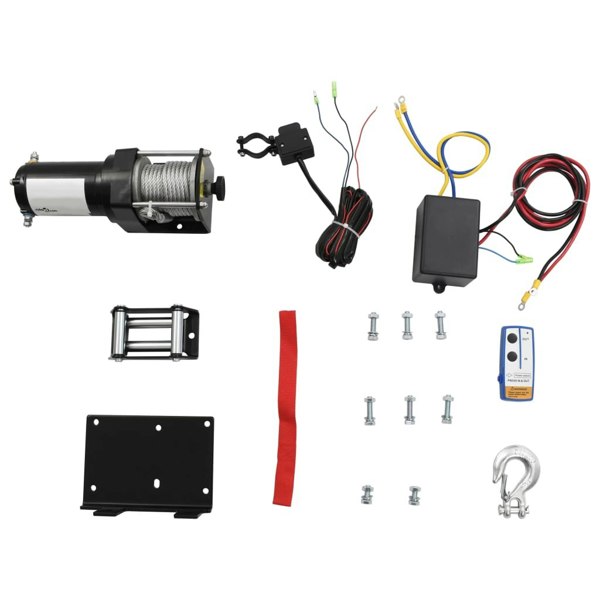

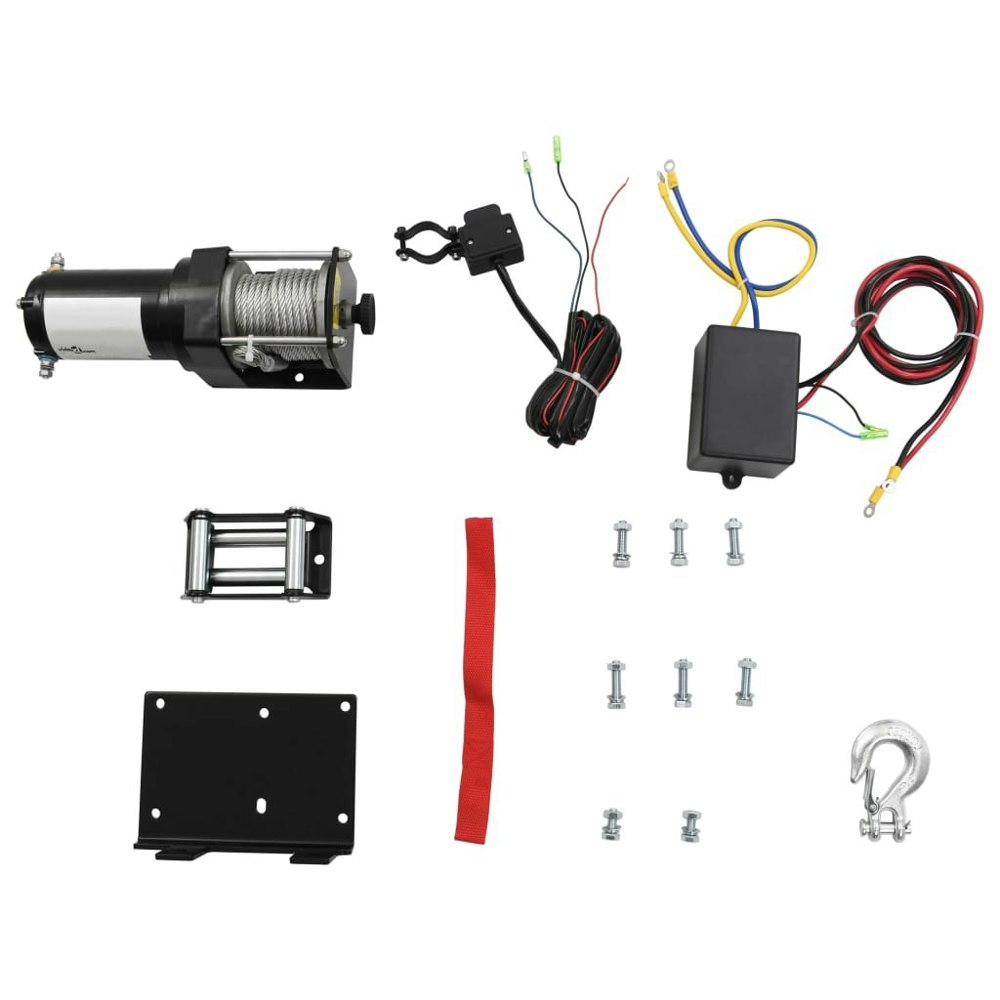

What's included

• 1 x mounting plate
• 1 x roller fairlead
• 1 x hook with cable
• Power cable
• Mounting accessories such as screws and nuts

Sizing

• 285 x 105 x 105 mm (L x W x H)

About this product

Who is it for

Suited to users carrying out vehicle recovery with a winch intended for intermittent duty application.

When and where to use it

Suitable for vehicle recovery where controlled wire rope extension and powered pulling are required.

Rackhams Reference : 6AQA4K8456
