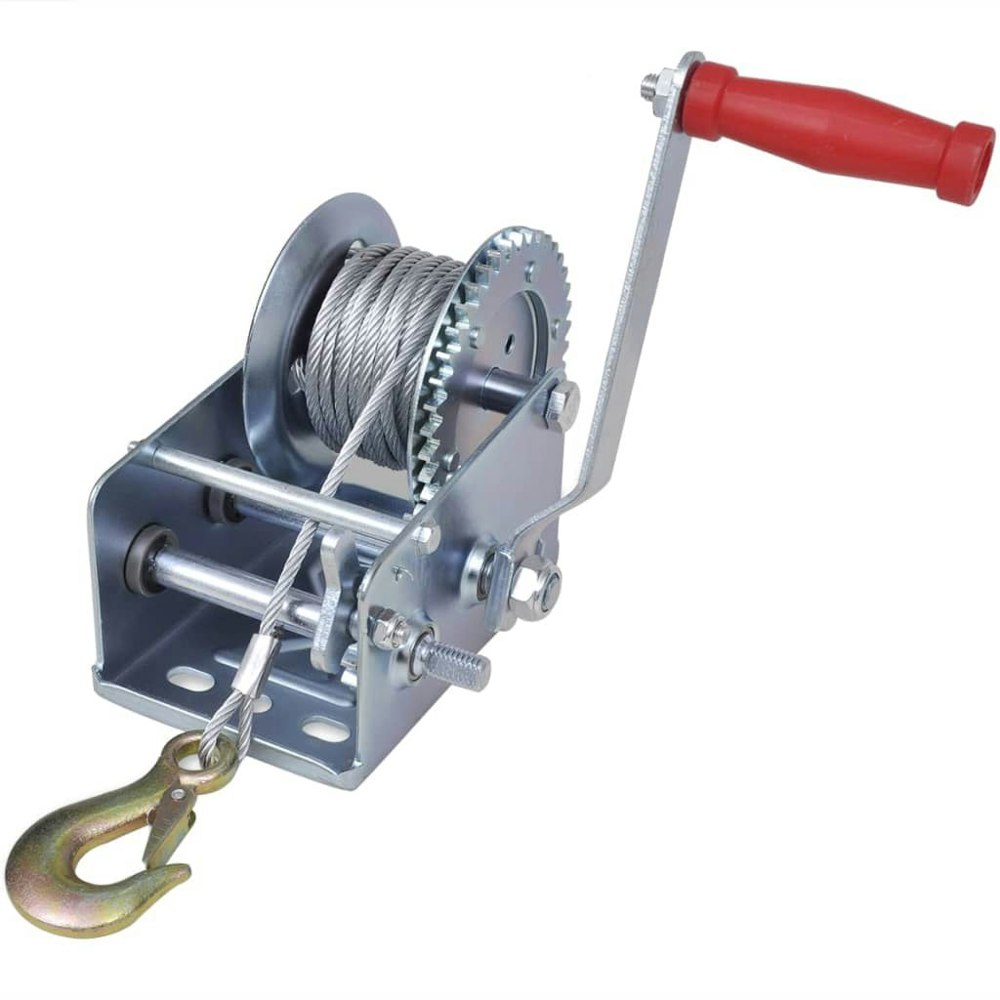

Berkfield Hand Winch 1130 kg

The Berkfield hand winch has a maximum load capacity of 1130 kg / 2500 lbs and is fitted with a 10 m cable for pulling large or heavy items. Built from iron, it has a sturdy construction suited to pickup trucks, trailers and other mobile applications.

Its handle operates across 2 separate axes, with a choice of 2 gear ratios. This allows either faster pulling with more force required or slower pulling with less force required when handling heavier loads. The cable diameter is 5 mm, and the hook length is 103 mm.

Key features

• Maximum load capacity: 1130 kg / 2500 lbs
• Iron construction
• Cable length: 10 m
• Cable diameter: 5 mm
• Gear ratio: 4 : 1 / 8 : 1
• 2 ways / 2 speeds
• 2 separate axes for the respective gear ratios

Sizing

• 40 x 29.5 x 17 cm (L x W x H)
• Hook length: 103 mm

About this product

Who is it for

Suited to users fitting pulling equipment to pickup trucks, trailers and other mobile applications.

When and where to use it

Suitable for pulling large or heavy items in mobile towing and trailer-based applications.

Rackhams Reference : RAQ86GHFL8
