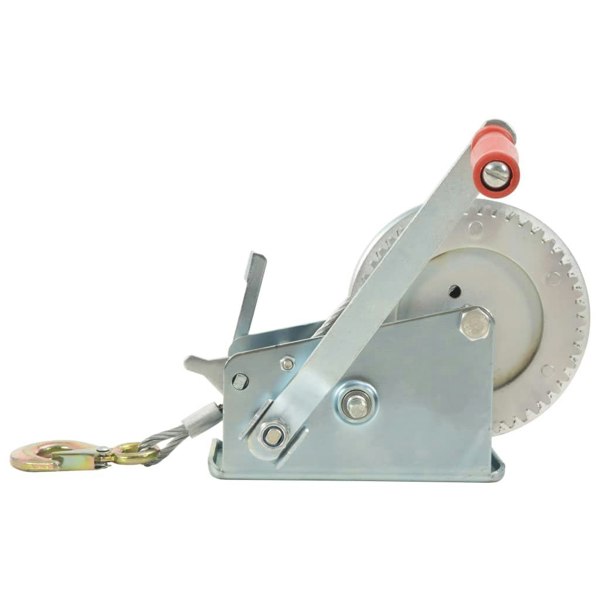

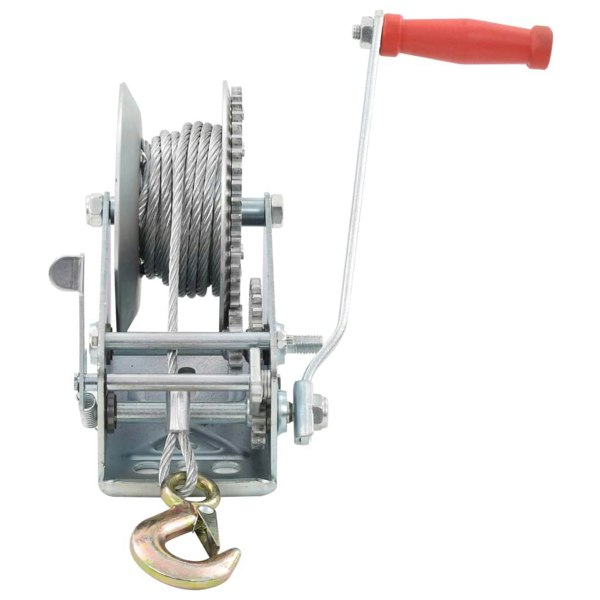

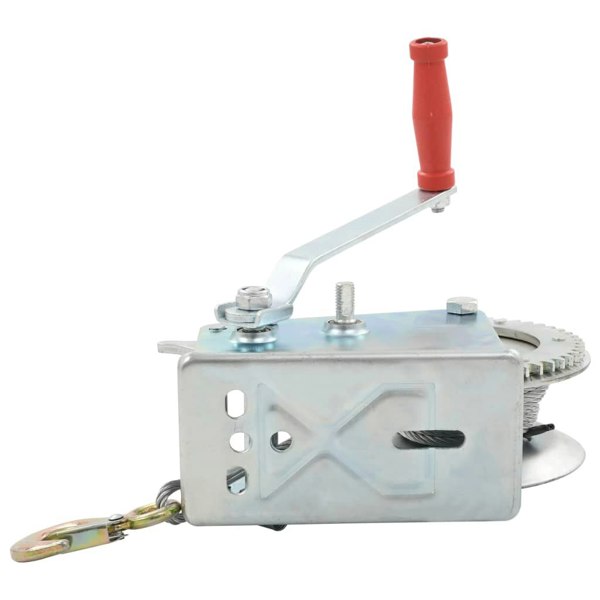

Berkfield Hand Winch 1360 kg

The Berkfield hand winch has a maximum load capacity of 1360 kg / 3000 lbs and is built from iron for sturdy, durable use. With a 10 m cable and a 6 mm cable diameter, it is suited to pulling large or heavy items in mobile applications.

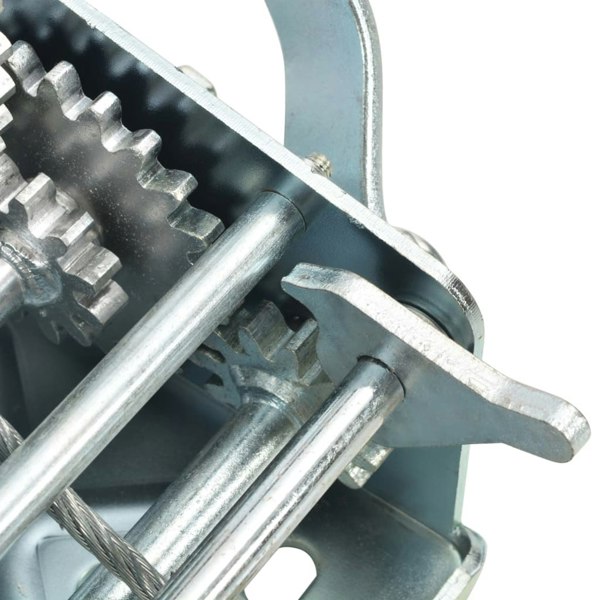

Its two-speed, two-way design uses 2 separate axes with gear ratios of 4 : 1 and 8 : 1. This allows a faster pull when more force can be applied, or a slower pull when better suited to heavier loads. It is suitable for use on pickup trucks, trailers and other mobile applications.

Key features

• Maximum load capacity: 1360 kg / 3000 lbs
• Iron construction
• Cable length: 10 m
• Cable diameter: 6 mm
• Gear ratio: 4 : 1 / 8 : 1
• 2 ways / 2 speeds
• 2 separate axes for the respective gear ratios

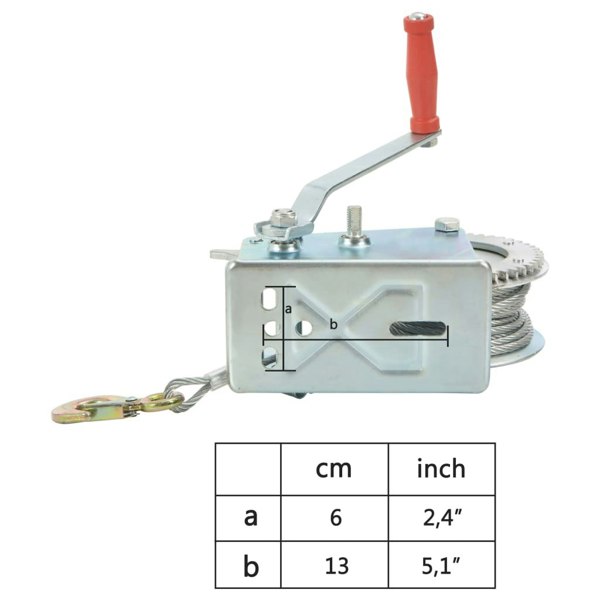

Sizing

• 40 x 30 x 18.5 cm (L x W x H)

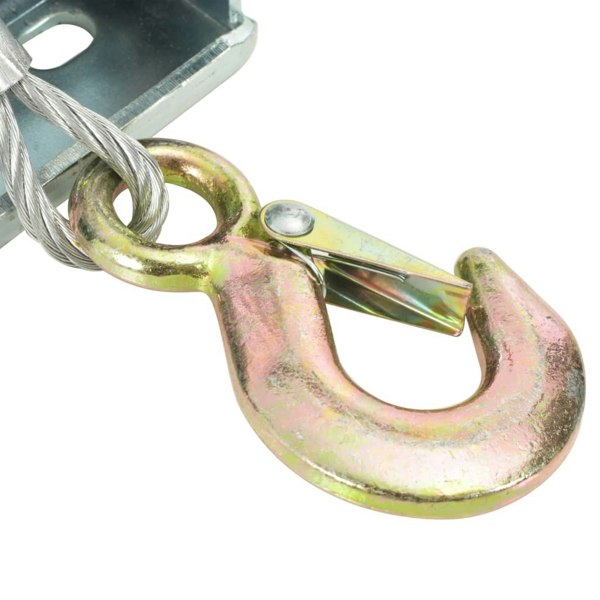

• Hook length: 103 mm

About this product

Who is it for

Suitable for users needing a hand winch for pickup trucks, trailers and other mobile applications involving large or heavy items.

When and where to use it

Intended for pulling tasks in mobile applications where controlled manual operation is required.

Rackhams Reference : 77CDIQYEHM
