Brennenstuhl Corner PIR Motion Detector - Movement Sensor Corner Motion Sensor - Black

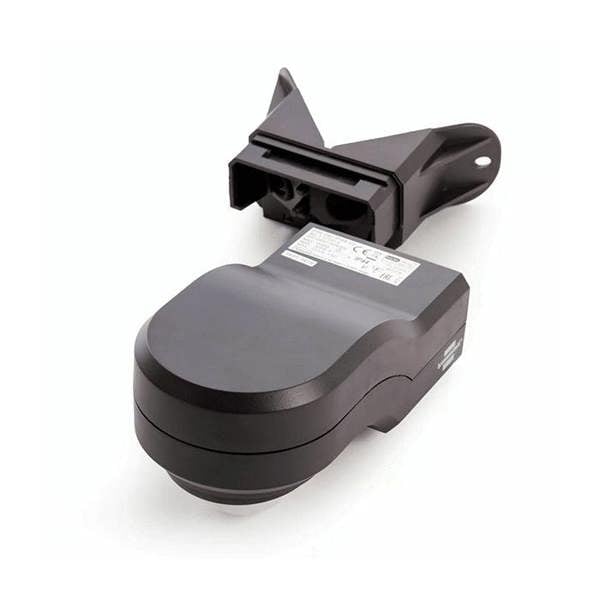

From Brennenstuhl, the Corner PIR Motion Detector is a mains-powered movement sensor designed for flexible placement indoors or outdoors. With an IP44 rating and a dedicated corner attachment, it’s made to suit corner mounting and can also be fitted to a ceiling or wall, helping you direct detection precisely where it’s needed.

Using PIR sensing, it offers a 240 detection angle with a 12-metre range. Operation can be tailored to your space, with adjustable response brightness from 10 to 150 lux and an adjustable duty cycle between 10 seconds and 4 minutes. The unit can also be adjusted vertically and horizontally. Switching capacity is rated up to 1,000 Watt (bulbs), 300 Watt (energy-saving lamp) and 100 Watt (LED).

Key features

• Corner attachment designed for corner mounting
• Suitable for indoor and outdoor use with an IP44 rating
• 240 detection angle with a 12-metre detection range
• Adjustable duty cycle from 10 seconds to 4 minutes
• Adjustable response brightness from 10 to 150 lux
• Adjustable vertically and horizontally
• Switching capacity: max. 1,000 Watt (bulbs), 300 Watt (energy-saving lamp), 100 Watt (LED)

Specifications

• Sensor type: PIR
• Fitting type: Ceiling or wall-mounted
• Power source: Mains-powered
• IP rating: IP44
• WEEE regulated: WEEE regulated
• FSC or PEFC certified: Yes
• Contains wood and/or paper: No
• Fittings & fixings included: 92
• Energy rating post 2021: 14

Sizing

• 120mm diameter
• 220mm depth
• 120mm height
• 80mm width
• Product weight: 240
