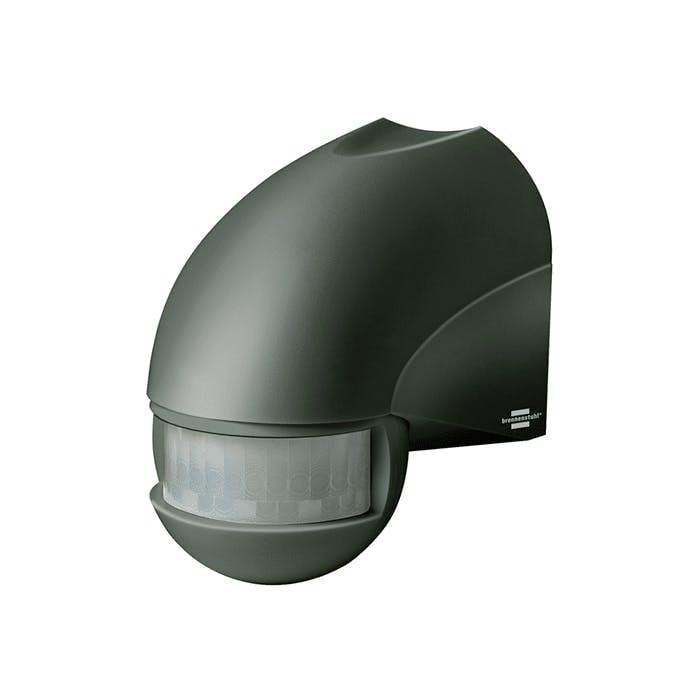

Brennenstuhl PIR Motion Detector Security Light Movement Sensor 180 Degree - Black

From Brennenstuhl, this PIR Motion Detector is a mains-powered motion sensor designed for responsive, hands-free lighting control. Suitable for both indoor and outdoor use, it can be mounted on a ceiling or wall to help automate lighting in entrances, pathways and other frequently used areas.

Using PIR technology, it detects movement across a 180 angle with a 12 metre range, switching lights on when someone enters the detection zone and turning them off again afterwards. For a more tailored setup, the sensor adjusts vertically and horizontally, with adjustable response brightness and an adjustable duty cycle from 10 seconds to 4 minutes. Finished in black and rated IP44, it’s built for everyday use in exposed locations, while supporting a maximum switching capacity of 1,000 Watt (bulbs), 300 Watt (energy-saving lamp) and 100 Watt (LED).

Key features

• PIR sensor with 180 detection angle and 12 metre detection range
• Suitable for indoor and outdoor locations
• Ceiling or wall mounting
• Adjustable vertically and horizontally
• Adjustable response brightness
• Adjustable duty cycle from 10 seconds to 4 minutes
• Maximum switching capacity: 1,000 Watt (bulbs), 300 Watt (energy-saving lamp), 100 Watt (LED)
• IP44 rating

Sizing

• 90mm diameter
• 65mm W x 100mm D x 90mm H
• Weight: 200

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : 9B46DXUCB6
