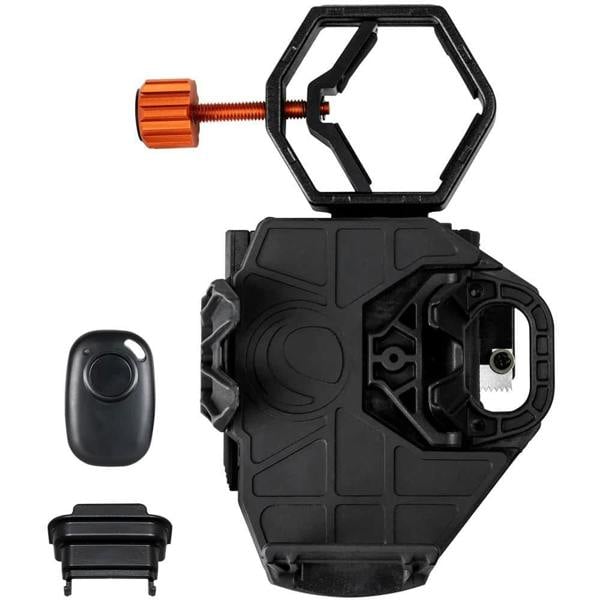

Celestron NexGO DX Smartphone Adapter with BlueTooth Remote

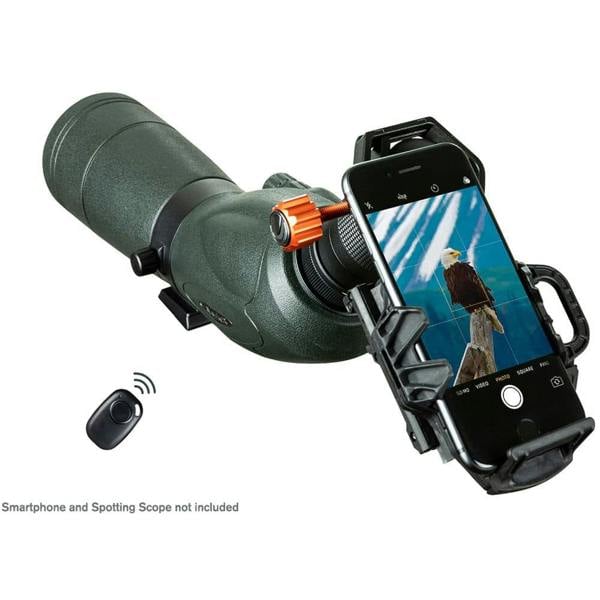

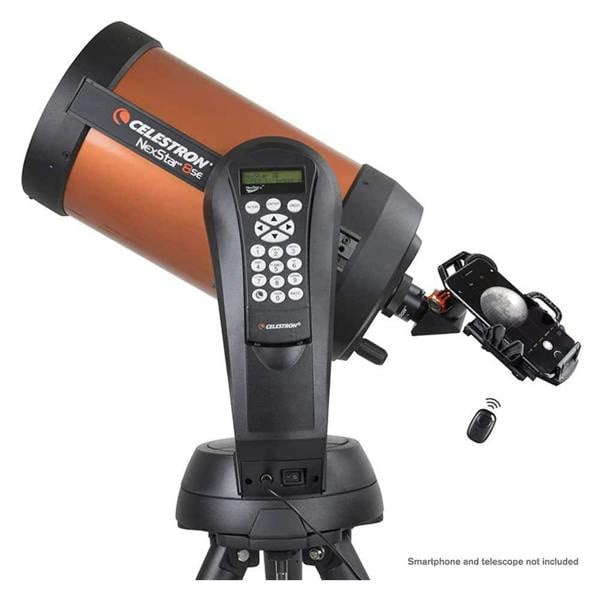

For a straightforward route into digiscoping and astroimaging, the Celestron NexGO DX Smartphone Adapter Kit brings together a smartphone eyepiece adapter and a Bluetooth remote shutter controller in one compact setup. This telescope accessory is compatible with telescopes, binoculars, spotting scopes, monoculars and microscopes, with an eyepiece clamp range of 25. 4mm to 44. 45mm (1. 0-inch to 1. 75-inch), including most 1. 25-inch telescope eyepieces.

Precise alignment is handled by rack and pinion X- and Y-axis fine adjustment knobs, allowing the phone camera to be centred accurately over the eyepiece. The spring-loaded phone clamp fits smartphones from 58mm to 103mm wide, and the adjustable platform typically accommodates phones with their case on. A foldable construction makes the adapter easier to store and carry, while the cast metal, reinforced plastic and aluminium build gives it a robust feel for regular outdoor use. A smartphone booster is included for older or smaller phones 5-inch tall and under.

Key features

• Smartphone adapter kit with Bluetooth remote shutter controller
• Compatible with telescopes, binoculars, spotting scopes, monoculars and microscopes
• Eyepiece clamp range: 25. 4mm - 44. 45mm (1. 0-inch - 1. 75-inch)
• Fits most telescopes with 1. 25-inch eyepieces
• Rack and pinion X- and Y-axis fine adjustment system for accurate alignment
• Spring-loaded phone clamp with 58mm - 103mm range

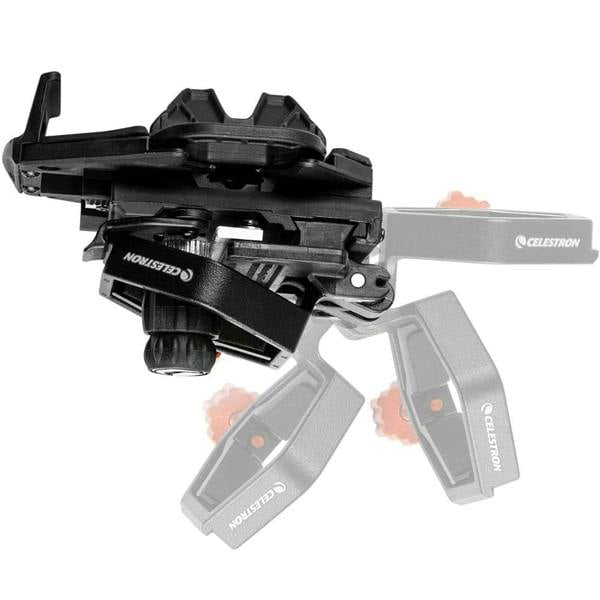

• Foldable design for storage and transport
• 2-year warranty
• Model number: 81038-CGL

Specifications

Compatibility

• Compatible optics: Telescopes, binoculars, spotting scopes, monoculars and microscopes
• Eyepiece clamp style: Traditional clamp style with adjustment knob
• Eyepiece clamp range: 25. 4mm - 44. 45mm (1. 0-inch - 1. 75-inch)
• Phone clamp style: Easy loading with internal springs
• Phone clamp range: 58mm - 103mm (2. 28-inch - 4. 06-inch)

Construction

• Fine adjustment style: X, Y motion via rack and pinion system
• Materials: Cast metal, reinforced plastic, aluminium
• Weight: 362. 87g

Sizing

• Open dimensions: 196. 5mm x 101. 6mm x 76. 2mm
• Closed dimensions: 146mm x 120. 6mm x 76. 2mm

In the box

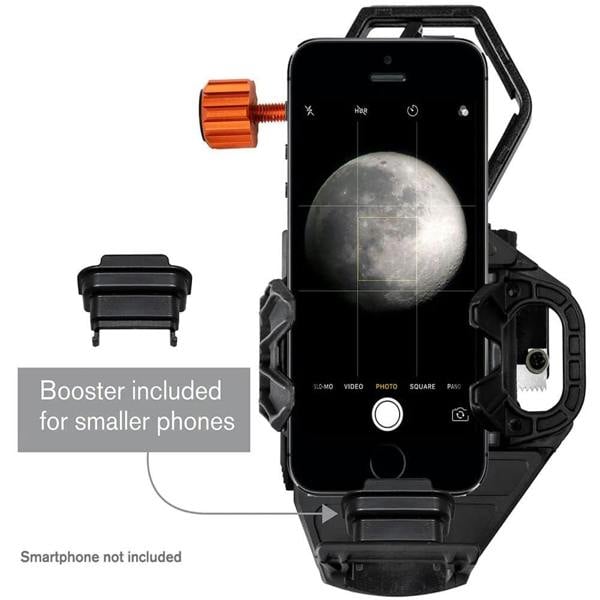

• Smartphone booster for smaller or older phones 5-inch tall and under
• Bluetooth remote shutter controller

Support & warranty

2-year warranty.

Safety information

Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result. Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it. Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
