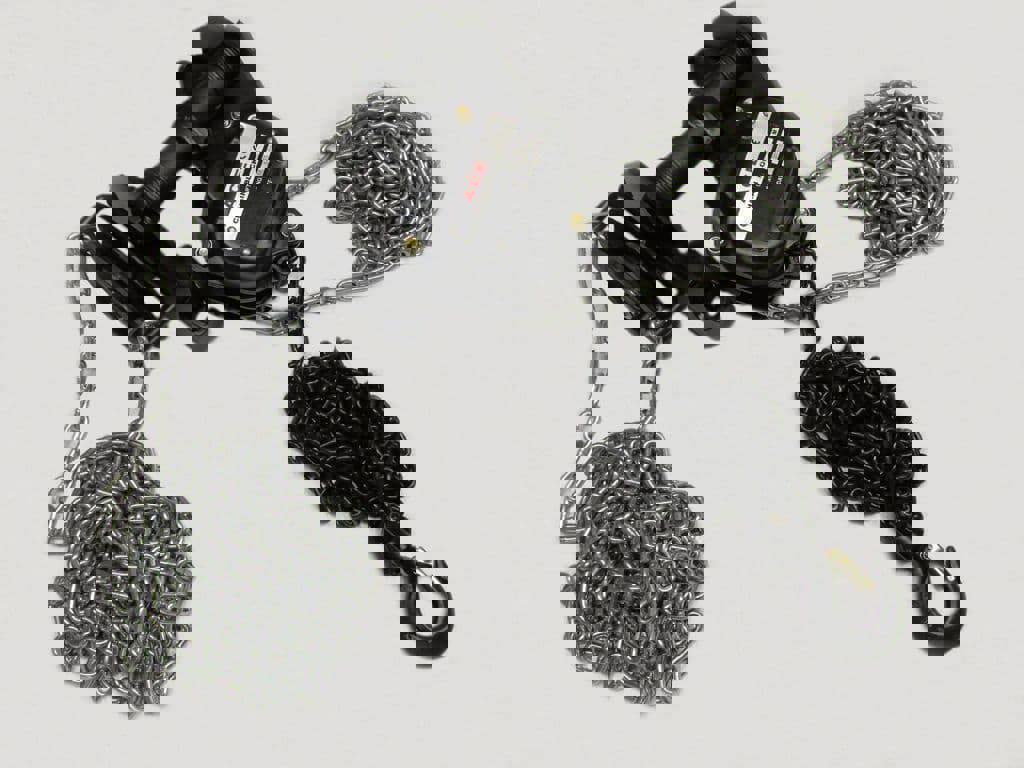

Chain Block and Geared Trolley Combination 2T 3M (Beam Girder Lift Tackle Manual)

Designed for controlled lifting and positioning, this Combination Chain Block with Geared Trolley from Rackhams offers a practical all-in-one solution for use on steel beams. With a safe working load of 2 ton (2000KGS) and a 3 metre (10 foot) lift, it provides a dependable manual set-up for moving loads with precision via the hand chain and gear combination.

The geared trolley attaches to steel beams to create an adjustable lifting point for the chain block, allowing the unit to be moved smoothly along the beam. A chain guide supports smooth chain operation, while drop forged, heat treated safety hooks are specified for safety and durability. The unit conforms to BS EN 13157: 2004+A1: 2009 and is supplied with a test certificate (sent via email).

Key features

• Safe working load: 2 ton (2000KGS)
• Lift: 3 metre (10 foot)
• Hand chain EWL: 2.7M
• Hand chain EWL (gear trolley): 2.7M
• Chain falls: 2
• Chain guide for smooth chain operation
• Drop forged, heat treated safety hooks
• Conforms to BS EN 13157: 2004+A1: 2009

Sizing

• Load chain diameter: 6MM
• Trolley length x width: 275MM x 340MM
• Overall height: 340MM
• Recommended beam size: 80MM-168MM
