Wire Rope Pulling Hoist Winch 1600KG (ACE 1.6T Lifting 2.5T Puller with 20M Rope)

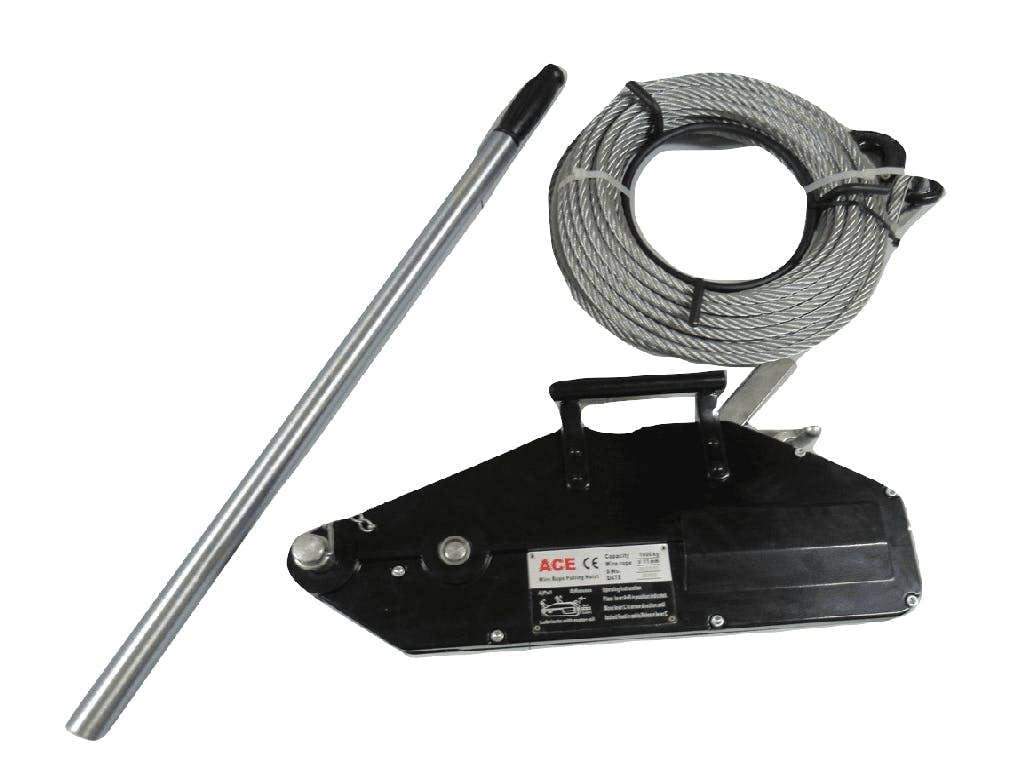

Designed for demanding lifting and pulling tasks, the Wire Rope Pulling Hoist Winch is a portable wire rope hoist suited to a wide range of applications, including construction, oil and chemical companies, mines, quarries, agricultural and forestry work. Built with an aluminium body housing steel mechanisms, it is supplied with 20 metres of steel wire rope and a detachable, extendable aluminium handle for controlled operation on site.

Engineered for practical handling, the hoist supports pulling, lifting, lowering and securing loads, with a hook and safety catch to help prevent loads slipping during lifting or pulling. Overload protection is included to support a high level of personal safety during operation. For added reassurance, the hoist conforms to BS EN 13157: 2004 + A1: 2009 and is supplied with a test certificate via email. Spare shear pins can be included if required; these act as a safety mechanism to help prevent exceeding the safe working load and are made from brass.

Key features

• Aluminium body with steel mechanisms
• Supplied with 20 metres of steel wire rope
• Detachable, extendable aluminium handle
• Hook with safety catch
• Overload protection
• Conforms to BS EN 13157: 2004 + A1: 2009
• Test certificate supplied via email
• Optional spare brass shear pins

Sizing

• 800kg: lifting capacity 0.8T; pulling capacity 1.25T; wire rope diameter 8.3mm; 426mm L x 64mm W x 238mm H
• 1600kg: lifting capacity 1.6T; pulling capacity 2.5T; wire rope diameter 11mm; 545mm L x 97mm W x 284mm H
• 3200kg: lifting capacity 3.2T; pulling capacity 5.6T; wire rope diameter 16mm; 660mm L x 116mm W x 325mm H
• 5400kg: lifting capacity 5.4T; pulling capacity 8T; wire rope diameter 20mm; 930mm L x 150mm W x 385mm H
