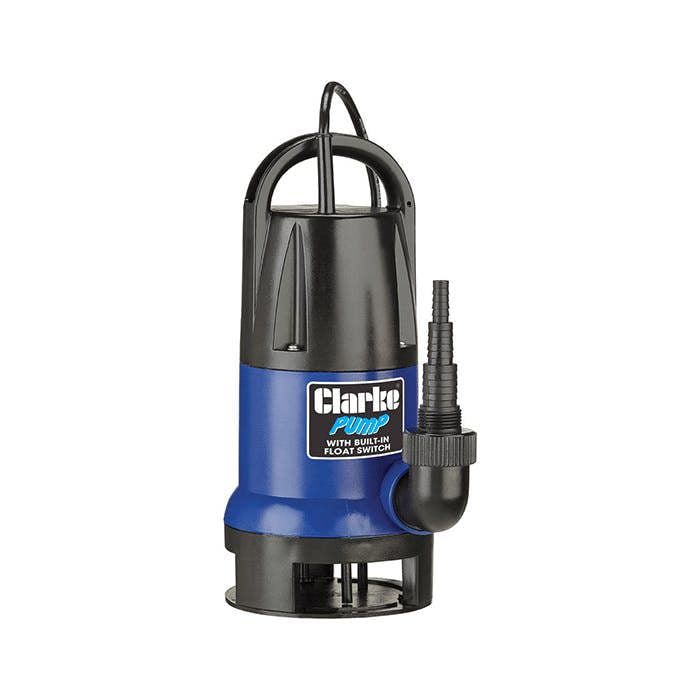

Clarke International Clarke PSV5A 750W 217Lpm 8m Head Water Pump With Integrated Float Switch 230V

For demanding drainage tasks where space is limited, Clarke’s PSV5A submersible pump pairs a 750W motor with an integrated float switch to help control pumping in confined areas. Designed for heavy duty work around pits, sumps, ditches and footings, it can be used with clean or dirty water and handles particles up to 35mm in diameter.

Operation can be set to manual or auto mode. In auto mode, the integrated float switch turns the motor off once the water level drops to a defined level, supporting unattended draining. A rated maximum flow rate of 217 l/min combines with a minimum/maximum head of 0m/8m, and the pump is suitable for a maximum immersion depth of 7m. Flexible positioning is supported by a 10 metre cable, while the 1 1/2" BSP outlet is supplied with an elbow and 4 step adaptor for common hose connections.

Key features

• 750W mains-powered submersible pump for heavy duty draining applications
• Suitable for clean or dirty water
• Handles particles up to 35mm in diameter
• Integrated float switch designed for confined spaces
• Selectable manual or auto mode
• Rated maximum flow rate 217 l/min
• Minimum/maximum head 0m/8m
• Maximum immersion depth 7m
• 10 metre cable for flexible positioning

Specifications

General

• Product type submersible pump
• Pack quantity 1
• Contains wood and/or paper no
• FSC or PEFC certified yes
• Model name/number PSV5A

Power

• Power source mains-powered
• Power voltage supply 230-240V

Performance

• Maximum flow rate (l/h) 217. 00
• Minimum/maximum head 0m/8m
• Maximum immersion depth (m) 7. 00

Connections

Outlet size 11/2" BSP with elbow and 4 step adaptor; 1" BSP/Hose, ¾" hose, ½" hose

Dimensions and weight

• Product diameter (mm) 157. 00
• Product height (mm) 351. 00
• Product width (mm) 203. 00
• Product weight 5. 00

Cable

Cable length 10. 00

Support & warranty

1 year warranty

Rackhams Reference : 2W61UBSTM7
