Crane Fork Self Leveling 5T (Adjusting Pallet Balance Lifting Ton Tonne)

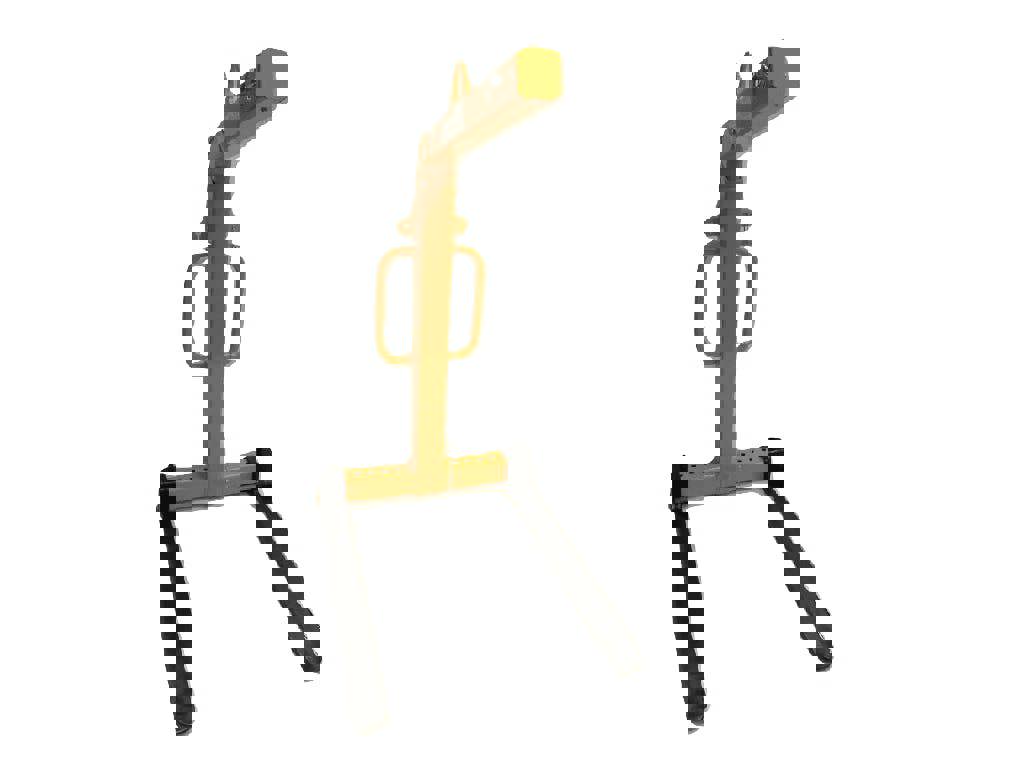

Designed for controlled pallet handling, the Crane Fork Self Levelling 5T is a self adjusting lifting fork for use with lifting equipment where a steady, balanced load is essential. Its self stabilising design uses a sliding eyelet on a diagonal bar, helping the centre of mass remain below the connection point to keep the load steady during lifting.

Adjustability is built in for day-to-day flexibility. Removable pins lock into place to set the fork width and hook height for different loads, while the 1m fork length supports consistent positioning. A yellow finish improves visibility and is described as abrasion resistant and durable. The fork is designed to reduce the need for slings and awkward hook-ups, supporting more straightforward lifting set-ups.

Key features

• Self adjusting lifting fork with self balancing design
• Adjustable fork width secured with removable locking pins
• Sliding eyelet mechanism designed to help keep loads steady
• Yellow finish for improved visibility
• Conforms to EN1315S:2003
• Test certificate supplied via email

Specifications

• Material: Heavy duty steel

Sizing

• Fork length: 1m
• Fork width: 400mm - 900mm
• Effective height: 1.3m - 2m
• Hook height: 1655mm - 2355mm

Safety information

• Do not exceed the safe working load
• Keep the load below the fork length (1m) to allow the device to work properly
• A minimum load of 20% is required for the self balancing feature to function
