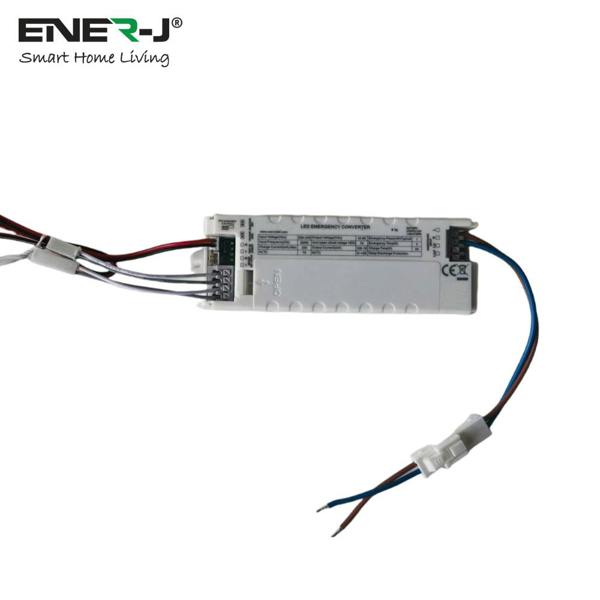

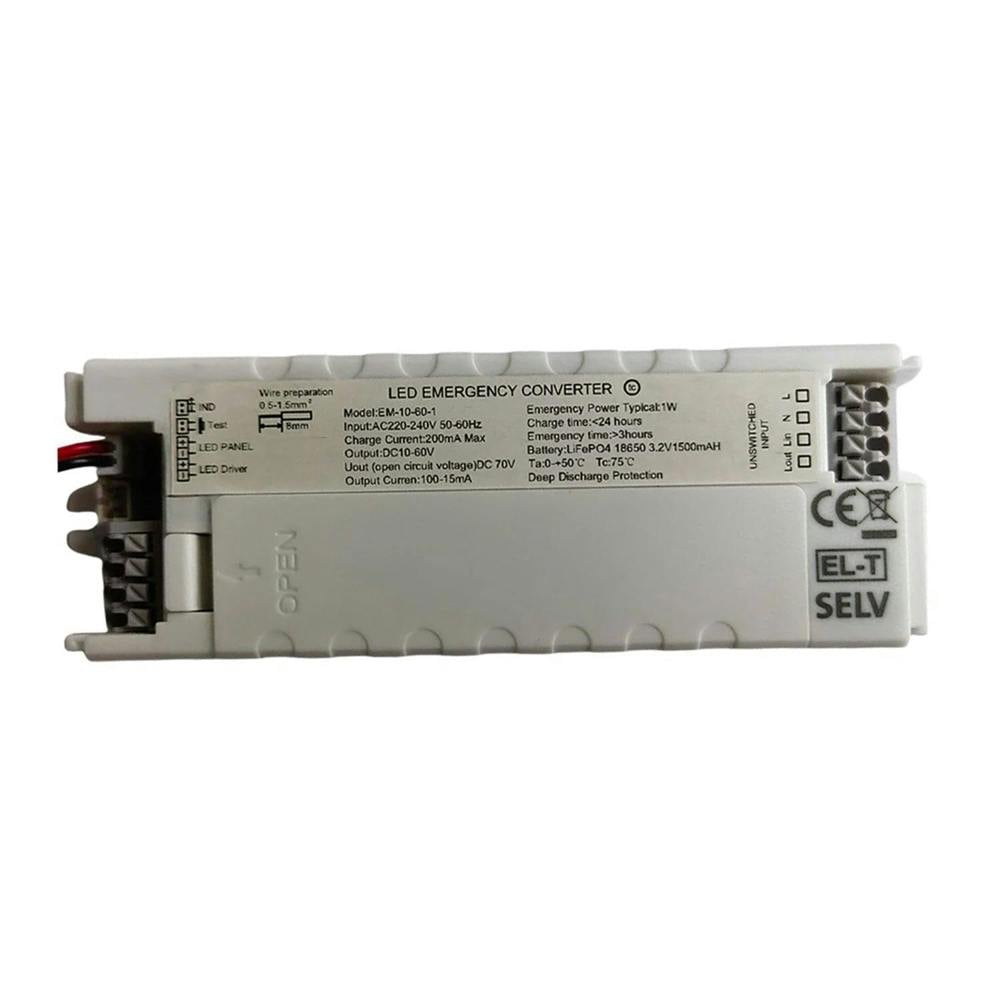

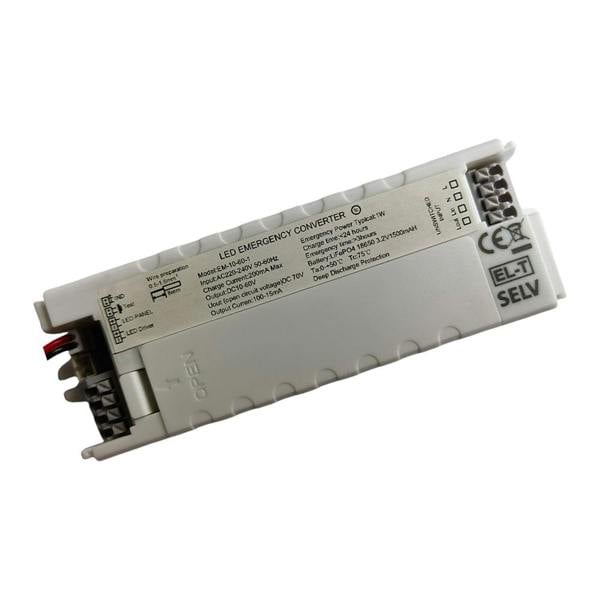

ENER-J Plug and Play Emergency Module (T564), Compatible with T561 LED Bulkhead

ENER-J brings straightforward emergency conversion to the T561 LED bulkhead with this plug-and-play emergency module. Designed to install directly into the compatible fitting without rewiring, it provides maintained emergency lighting during a power cut with 1W output for up to 3 hours.

Built for internal applications such as corridors, stairwells and utility spaces, the module includes a LiFePO4 3. 2V 1800mAh battery, green LED charging indicator, and selectable manual or auto test modes. Automatic diagnostics, low standby power consumption and integrated protection against over-current, over-discharge and surge conditions support dependable operation.

Key features

• Compatible with ENER-J T561 LED bulkhead
• Plug-and-play installation without rewiring
• Emergency duration up to 3 hours
• Emergency output power 1W
• Standby power consumption less than 3W
• IP20 when installed within bulkhead
• Model: T564

Specifications

• Rated input voltage: 220–240VAC, 50/60Hz
• Max input current: 0. 06A at 230VAC
• Inrush current: 30A (cold start, 100µs pulse)
• Power factor: 0. 5 or above at 230VAC
• Battery charging current: 200mA maximum
• Battery charging time: up to 24 hours
• Output current: 100–15mA normal / 20–5mA emergency
• Output voltage range: 10–60V DC normal; 50–180V DC emergency
• Battery type: LiFePO4 3. 2V, 1800mAh
• Driver requirements: surge current 8A or below; input 3A or below; output 2A or below
• Charging indicator: green LED on = charging; off = fault
• Test mode: manual or auto test selectable
• Operating temperature: -25C to +60C
• Storage temperature: -40C to +80C
• Relative humidity: 85% or below

Please note

• Compatible with ENER-J T561 LED bulkhead only
• IP20 rating applies when installed within the bulkhead

Support & warranty

Battery warranty: 3 years.
