ENER-J Superhero 9-in-1 CCT & Wattage Switchable LED Bulkhead with Plug-and-Play Microwave Sensor & Emergency Module, IP65, IK10, 315 mm

Combining a bulkhead luminaire with plug-and-play sensor and emergency functions, the ENER-J Superhero 9-in-1 LED Bulkhead offers a flexible solution for indoor and outdoor settings. Wattage can be switched between 12 W, 15 W and 18 W, while built-in CCT selection allows 3000 K, 4000 K or 6000 K output from the same fitting.

Its polycarbonate housing and opal diffuser are paired with IP65 protection and IK10 impact resistance, making it suitable for corridors, stairwells, bathrooms, utility rooms and public areas. A push-fit connector supports straightforward installation, while the T563 microwave sensor and T564 emergency module add motion and daylight sensing, plus emergency illumination for up to 3 hours during a power outage.

Key features

• Switchable wattage: 12 W / 15 W / 18 W

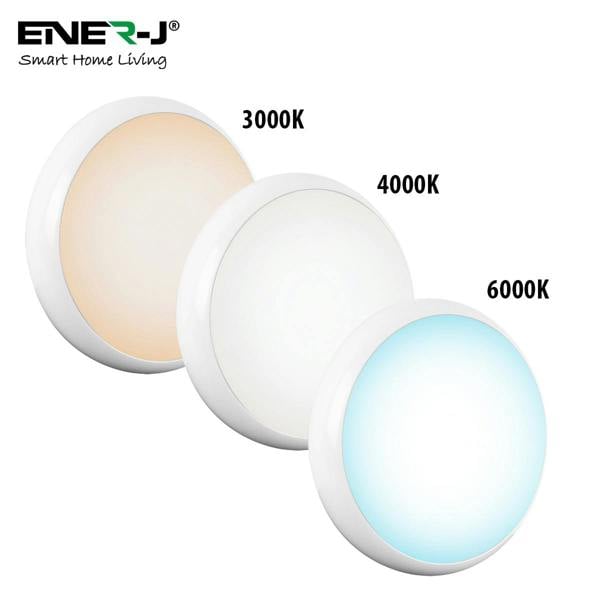

• Switchable colour temperature: 3000 K / 4000 K / 6000 K
• Material: polycarbonate housing with opal diffuser
• IP65 rated
• IK10 impact resistant

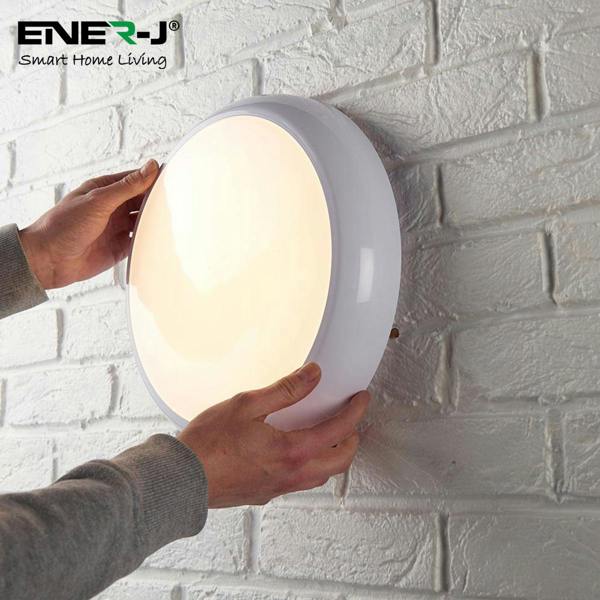

• Push-fit connector installation
• Class II, no earth required

Specifications

Bulkhead

• Applications: indoor/outdoor, corridors, stairwells, bathrooms, public areas, utility rooms

Microwave sensor

• Input voltage: 230 V AC
• Standby power: < 0. 2 W
• Hold time settings: 5 s / 1 min / 3 min / 10 min
• Detection area: 25 % / 50 % / 75 % / 100 %
• Daylight threshold: 5 Lux / 10 Lux / 25 Lux / Disabled
• Detection radius: ≤ 3. 5 m @ 0. 3 m/s; ≤ 2. 5 m @ 1 m/s (at 3 m height)
• Detection angle: 150
• Mounting height: standard 3 m (max 5 m)
• Operating temperature: –25 C to +60 C
• Storage temperature: –40 C to +80 C
• Humidity: < 85 % RH

Emergency module

• Input voltage: 220–240 V AC, 50/60 Hz
• Standby power: < 3 W
• Charging current: 200 mA
• Charging time: up to 24 hours
• Emergency output power: 1 W
• Emergency duration: up to 3 hours
• Battery type: LiFePO₄ 3. 2 V 1800 mAh
• Operating temperature: –25 C to +60 C
• Storage temperature: –40 C to +80 C
• Relative humidity: ≤ 85 %
• IP20 rated when installed within bulkhead
• Test modes: manual / auto test selectable
• Indicator: green LED charging / fault display

Sizing

Ø 315 mm

What's included

• LED bulkhead
• T563 microwave sensor
• T564 emergency module

Support & warranty

• 5-year warranty for the luminaire
• 3-year battery warranty for the emergency module

Please note: Colours shown are as accurate as possible, though may vary slightly depending on your screen settings.

Rackhams Reference : U3ZZVBNS4I
