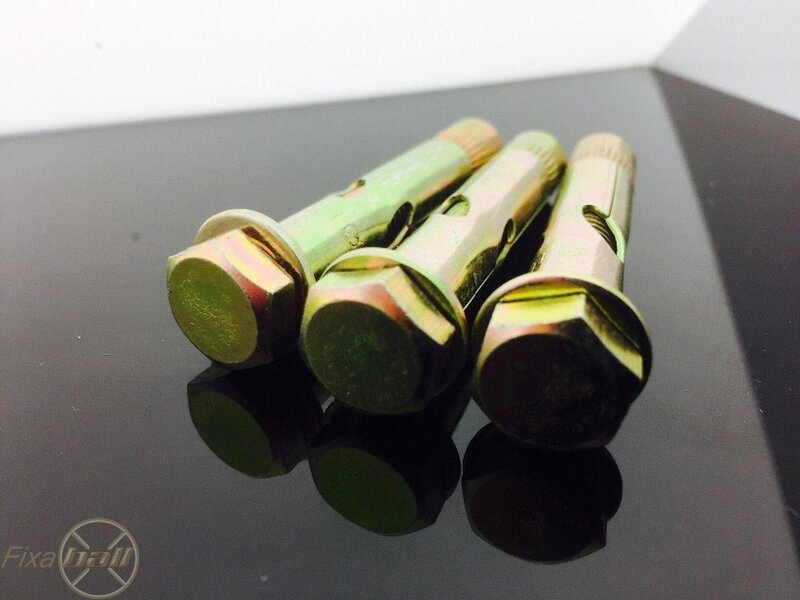

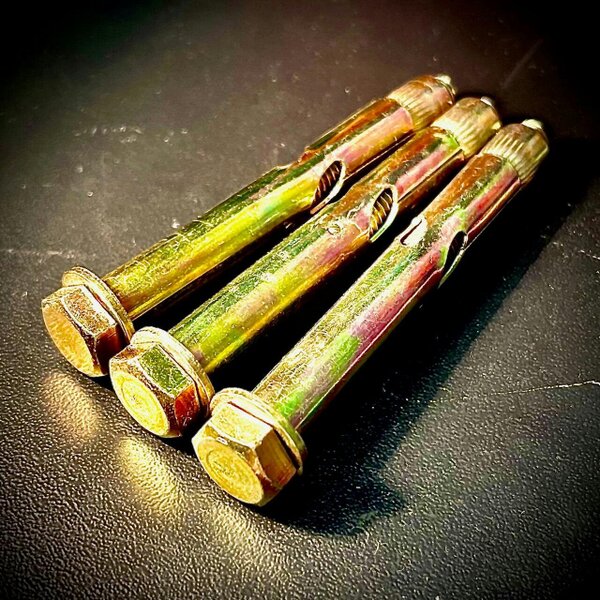

Fixaball 10mm Diameter Sleeve Masonry Concrete Anchor Bolt Type ZYP

For masonry fixings in brick, block, concrete and non-porous stone, this Fixaball sleeve anchor is a bolt-type expansion anchor with a 10mm diameter and zinc-plated finish. It is suited to secure fixing applications where an M8 thread diameter is required.

The anchor is installed by drilling the correct hole size, cleaning the hole, inserting the anchor and tightening the nut to set it. Length options available are 45mm, 55mm, 80mm and 100mm.

Key features

• 10mm diameter
• Zinc-plated finish
• Bolt-type sleeve masonry anchor
• Suitable for brick, block, concrete and non-porous stone
• Thread diameter: M8
• Available lengths: 45mm, 55mm, 80mm and 100mm
• Model number: ZYP

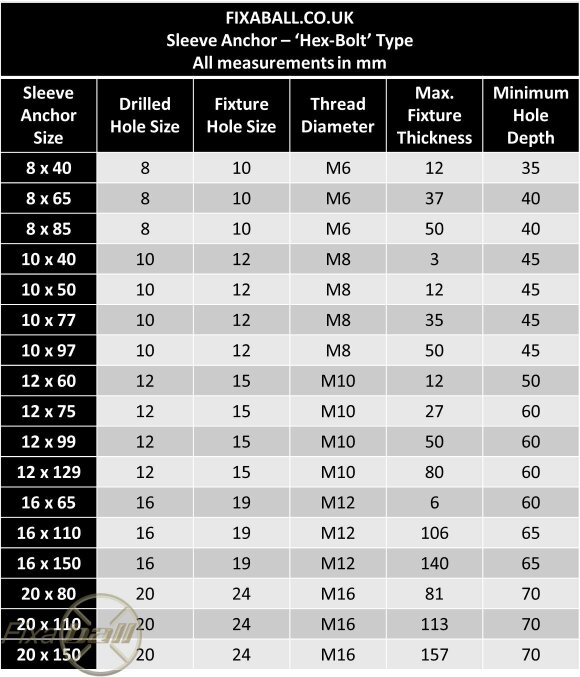

Specifications

• Drilled hole size: 10
• Fixture hole size: 12
• Minimum hole depth: 45

Available options

• 45mm
• 55mm
• 80mm
• 100mm

Sizing

• 10 x 40
• 10 x 50
• 10 x 77
• 10 x 97

Safety information

• Use the correct drill hole size before installation.
• Clean the hole before inserting the anchor.
