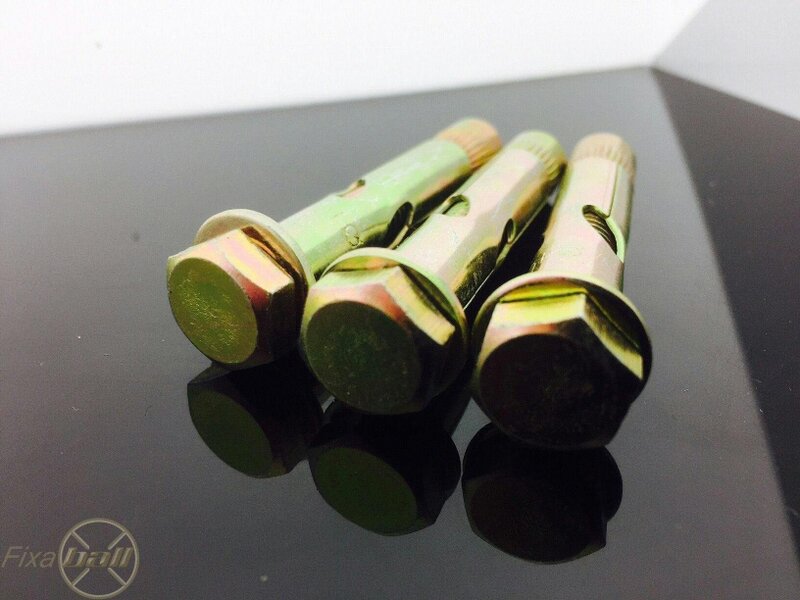

Fixaball 8mm Sleeve Masonry Concrete Anchor Bolt Type ZYP

For masonry fixings in brick, block, concrete and non-porous stone, the Fixaball sleeve masonry anchor bolt type provides an expansion fixing with a zinc plated finish. This M6 anchor has an 8mm diameter and is available in multiple lengths to suit different fixture thicknesses.

It is set by placing the anchor into a correctly drilled and cleaned hole, then tightening the nut to expand the sleeve. Suitable for a range of masonry substrates, it offers a straightforward fixing option where the stated hole sizes and installation dimensions are followed.

Available options

• 8 x 40
• 8 x 70
• 8 x 90

Key features

• 8mm diameter
• M6 thread diameter
• Zinc plated finish
• Suitable for brick, block, concrete and non-porous stone

Specifications

• Drilled hole size: 8
• Fixture hole size: 10
• Thread diameter: M6

Sizing

• 8 x 40
• 8 x 70
• 8 x 90

Safety information

• Drill the correct size hole.
• Clear and clean the hole before installation.
• Place the anchor in the hole before tightening the nut to set it.

Rackhams Reference : 2F3H9Z1QBN
