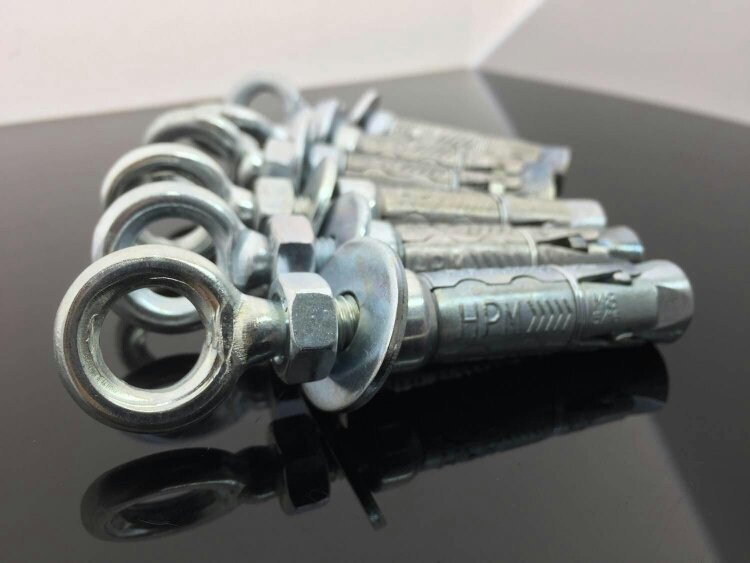

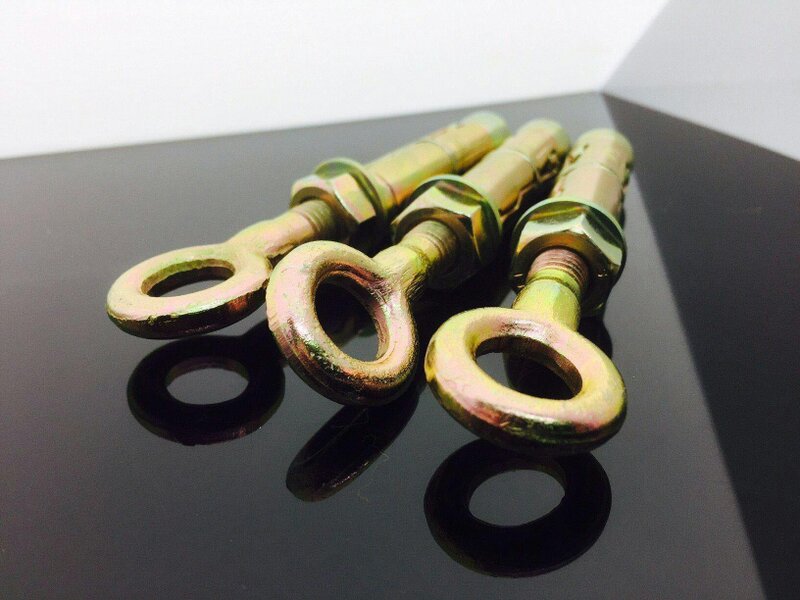

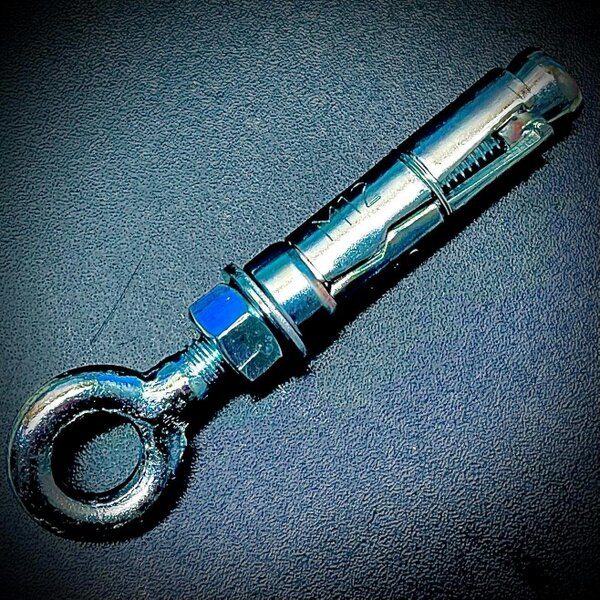

Fixaball Eye Bolt Masonry Shield Anchor BZP Zinc Cast M6 M8 M10 M12

For masonry fixings in brick, block and non-porous stone, the Fixaball eye bolt shield anchor provides a forged expansion anchor with a zinc finish. This heavy duty masonry anchor is available in M6, M8, M10 and M12 sizes, making it suitable for a range of fixing requirements where an eye bolt shield anchor is needed.

Installation is straightforward: drill the correct size hole, clean the hole, insert the anchor, then tighten the nut to set it in place. All measurements are metric and given in mm.

Available options

• M6
• M8
• M10
• M12

Key features

• Forged eye bolt masonry shield anchor
• Expansion anchor for masonry, brick, block and non-porous stone
• Zinc finish
• Available diameters: M6, M8, M10, M12

Specifications

M6

• Eye/hole diameter: 9 - 9. 5
• Hole diameter: 12
• Hole depth: 50
• Fixture/material clearance hole: 7 - 8
• Center spacing between holes: 120
• Minimum distance from edge of material: 80
• Tensile/pull load: 3. 5 k/N (tonnes)
• Shear load: 2. 1 k/N (tonnes)
• Torque to tighten: 6. 5 Nm

M8

• Eye/hole diameter: 10 - 13
• Hole diameter: 14
• Hole depth: 55
• Fixture/material clearance hole: 9 – 10
• Center spacing between holes: 150
• Minimum distance from edge of material: 100
• Tensile/pull load: 4. 8 k/N (tonnes)
• Shear load: 4. 4 k/N (tonnes)
• Torque to tighten: 15 Nm

M10

• Eye/hole diameter: 14 - 15
• Hole diameter: 16
• Hole depth: 65
• Fixture/material clearance hole: 11 – 12
• Center spacing between holes: 180
• Minimum distance from edge of material: 120
• Tensile/pull load: 6. 2 k/N (tonnes)
• Shear load: 6. 1 k/N (tonnes)
• Torque to tighten: 27 Nm

M12

• Eye/hole diameter: 16 - 20
• Hole diameter: 20
• Hole depth: 85
• Fixture/material clearance hole: 13 – 14
• Center spacing between holes: 250
• Minimum distance from edge of material: 160
• Tensile/pull load: 9. 7 k/N (tonnes)
• Shear load: 12. 4 k/N (tonnes)
• Torque to tighten: 50 Nm

Sizing

• M6 eye size: 10mm
• M8 eye size: 15mm
• M10 eye size: 17mm
• M12 eye size: 19mm

Safety information

All specifications are true with correct installation.
