Fixaball Full Hex Nuts Fine Pitch Self Colour Gr8 DIN934 M8 - M24

For applications requiring non-standard metric thread pitches, these Fixaball full hexagon nuts are supplied in fine, extra fine and super fine pitch options across selected sizes from M8 to M24. They are manufactured in steel grade 8 with a self-colour finish and conform to DIN 934.

This range covers a variety of thread and pitch combinations for matching metric fasteners where a standard pitch nut is not suitable. Full hexagonal form allows use with the corresponding spanner sizes listed for selected diameters.

Available options

• M8 x 1. 00 fine pitch
• M10 x 1. 00 extra fine pitch
• M10 x 1. 25 fine pitch
• M12 x 1. 0 super fine pitch
• M12 x 1. 25 extra fine pitch
• M12 x 1. 50 fine pitch
• M14 x 1. 5 fine pitch
• M16 x 1. 50 fine pitch
• M20 x 1. 50 fine pitch
• M22 x 1. 50 super fine pitch
• M22 x 2. 0 super fine pitch
• M24 x 1. 50 fine pitch
• M24 x 2. 0 super fine pitch

Key features

• Full hexagon nuts
• Steel grade 8
• Self-colour finish
• DIN 934

Specifications

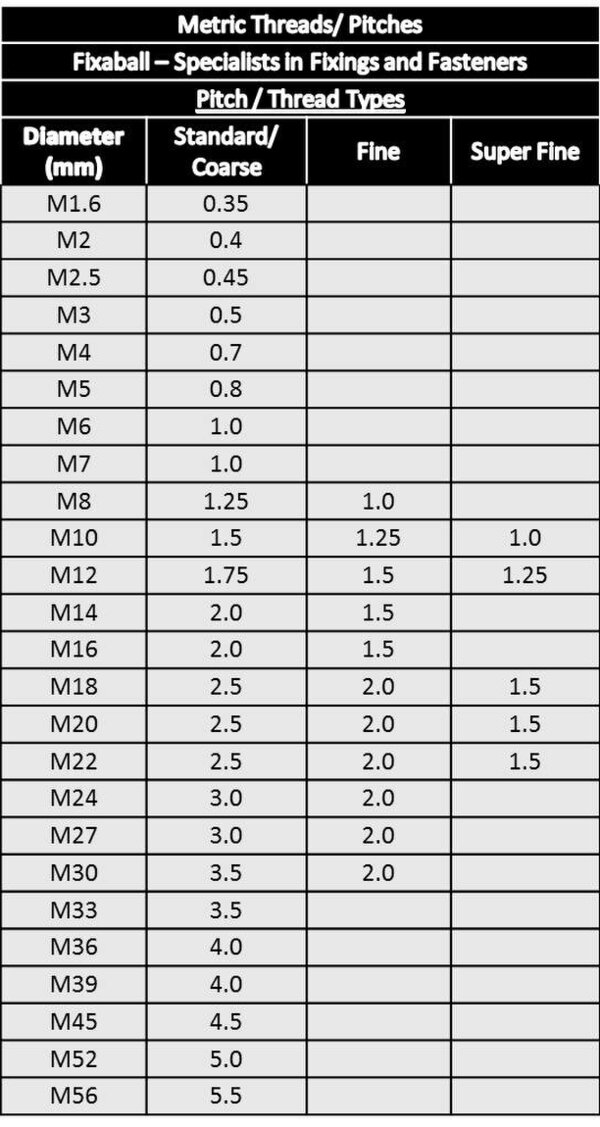

• Thread types available: fine, extra fine and super fine pitch
• Metric thread sizes available: M8, M10, M12, M14, M16, M20, M22 and M24

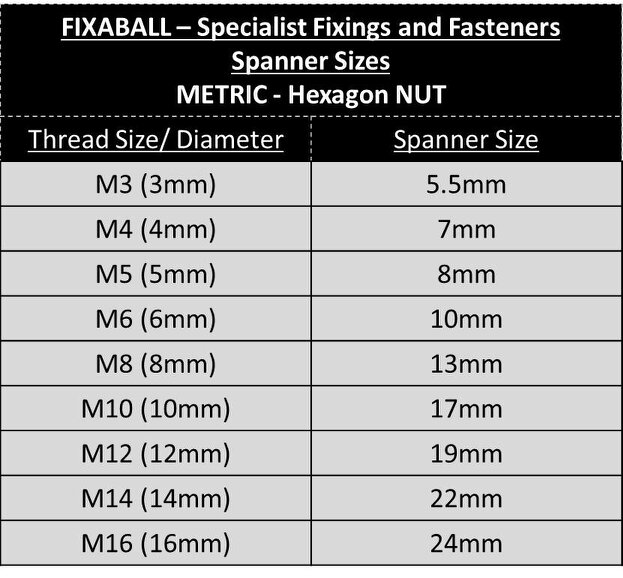

• Spanner sizes listed for selected diameters: M8 13mm, M10 17mm, M12 19mm, M14 22mm, M16 24mm

Rackhams Reference : WW3EXIT35U
