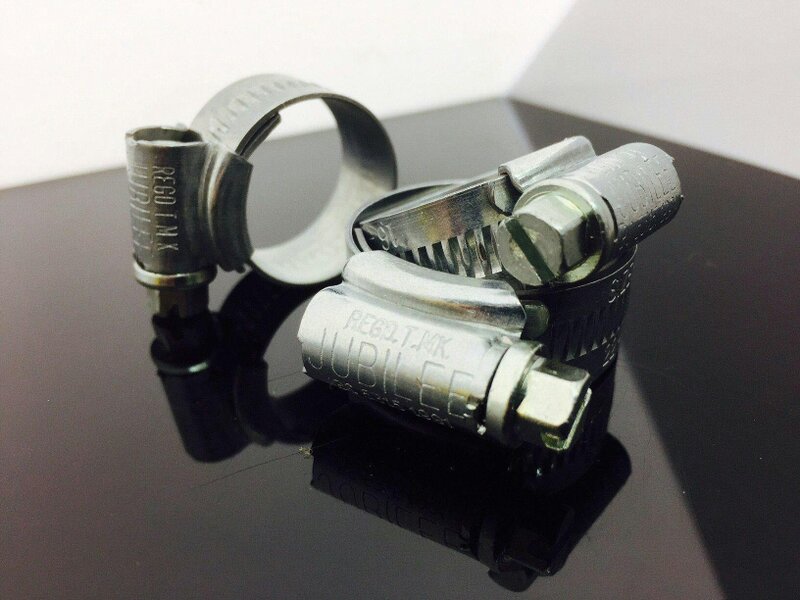

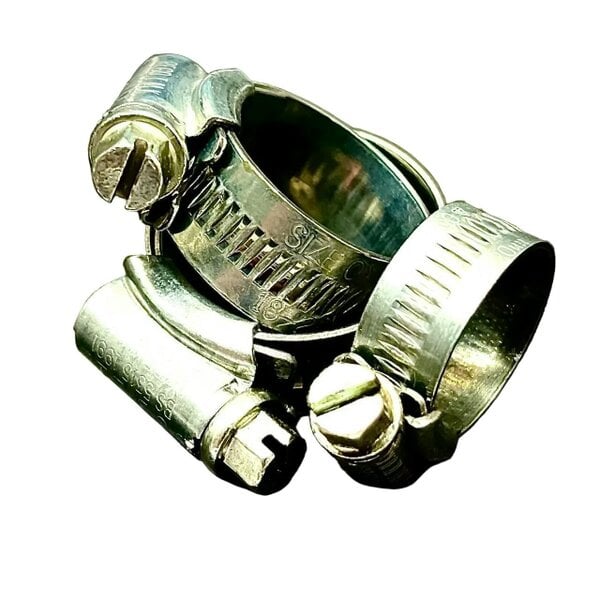

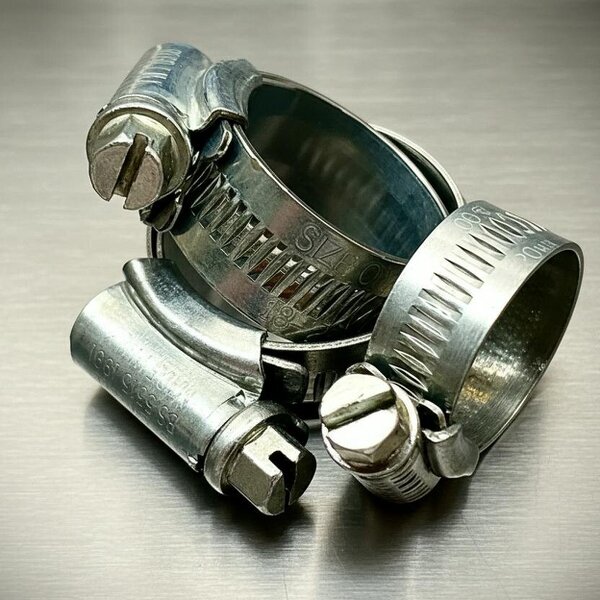

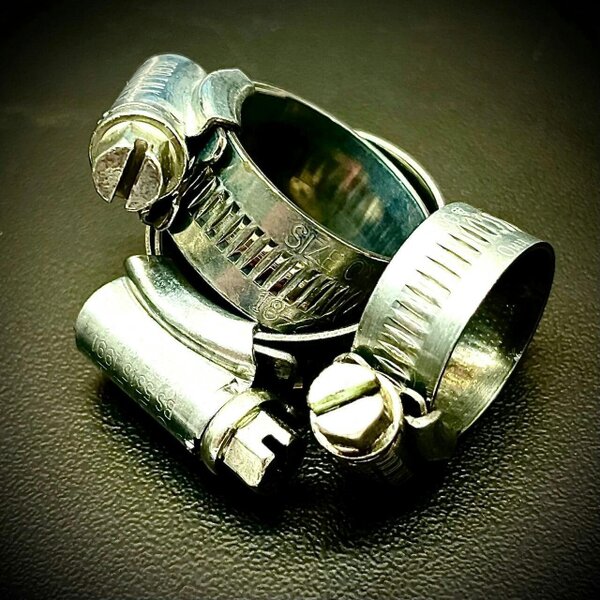

Fixaball Genuine Jubilee Hose Fuel Liquid Gas Clip Clamps Zinc BZP

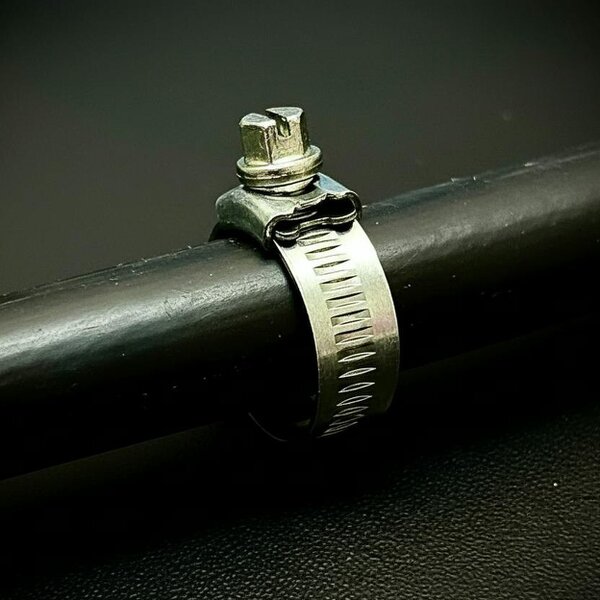

For securing hoses to rigid circular pipework or solid spigots, these Fixaball Genuine Jubilee hose clips are supplied in zinc electro-plated mild steel and made to BS 5315. The worm gear adjustment changes the band diameter to suit the selected size, with options covering diameters from 9.5mm to 120mm.

Suitable for hose, fuel, liquid and gas applications, this range includes multiple clip sizes with band widths of 9.9mm or 13mm depending on diameter. Larger sizes use wider bands, and each size has its own stated torque and maximum pressure figures.

Available options

• 000: 9.5-12mm
• M00: 11-16mm
• 00: 13-20mm
• 0: 16-22mm
• 0X: 18-25mm
• 1A: 22-30mm
• 1: 25-35mm
• 1X: 30-40mm
• 1M: 32-45mm
• 2A: 35-50mm
• 2: 40-55mm
• 2X: 45-60mm
• 3: 55-70mm
• 3X: 60-80mm
• 4: 70-90mm
• 4X: 85-100mm
• 5: 90-120mm

Key features

• Material and finish: zinc electro-plated mild steel
• Standard: BS 5315
• Suitable for hose, fuel, liquid and gas applications
• Band width: 9.9mm or 13mm, depending on size

Specifications

Size 000

• Band width: 9.9mm
• Recommended torque: 3.4 Nm
• Maximum torque: 4.5 Nm
• Maximum pressure: 203 Psi / Bar
• Minimum diameter: 9.5mm
• Maximum diameter: 12mm

Size M00

• Band width: 9.9mm
• Recommended torque: 3.4 Nm
• Maximum torque: 4.5 Nm
• Maximum pressure: 203 Psi / Bar
• Minimum diameter: 11mm
• Maximum diameter: 16mm

Size 00

• Band width: 9.9mm
• Recommended torque: 3.4 Nm
• Maximum torque: 4.5 Nm
• Maximum pressure: 203 Psi / Bar
• Minimum diameter: 13mm
• Maximum diameter: 20mm

Size 0

• Band width: 13mm
• Recommended torque: 4.2 Nm
• Maximum torque: 5.6 Nm
• Maximum pressure: 203 Psi / Bar
• Minimum diameter: 16mm
• Maximum diameter: 22mm

Size 0X

• Band width: 13mm
• Recommended torque: 4.2 Nm
• Maximum torque: 5.6 Nm
• Maximum pressure: 203 Psi / Bar
• Minimum diameter: 18mm
• Maximum diameter: 25mm

Size 1A

• Band width: 13mm
• Recommended torque: 5.1 Nm
• Maximum torque: 6.8 Nm
• Maximum pressure: 203 Psi / Bar
• Minimum diameter: 22mm
• Maximum diameter: 30mm

Size 1

• Band width: 13mm
• Recommended torque: 5.1 Nm
• Maximum torque: 6.8 Nm
• Maximum pressure: 102 Psi / Bar
• Minimum diameter: 25mm
• Maximum diameter: 35mm

Size 1X

• Band width: 13mm
• Recommended torque: 5.1 Nm
• Maximum torque: 6.8 Nm
• Maximum pressure: 102 Psi / Bar
• Minimum diameter: 30mm
• Maximum diameter: 40mm

Size 1M

• Band width: 13mm
• Recommended torque: 5.1 Nm
• Maximum torque: 6.8 Nm
• Maximum pressure: 102 Psi / Bar
• Minimum diameter: 32mm
• Maximum diameter: 45mm

Size 2A

• Band width: 13mm
• Recommended torque: 5.9 Nm
• Maximum torque: 7.9 Nm
• Maximum pressure: 102 Psi / Bar
• Minimum diameter: 35mm
• Maximum diameter: 50mm

Size 2

• Band width: 13mm
• Recommended torque: 5.9 Nm
• Maximum torque: 7.9 Nm
• Maximum pressure: 102 Psi / Bar
• Minimum diameter: 40mm
• Maximum diameter: 55mm

Size 2X

• Band width: 13mm
• Recommended torque: 5.9 Nm
• Maximum torque: 7.9 Nm
• Maximum pressure: 102 Psi / Bar
• Minimum diameter: 45mm
• Maximum diameter: 60mm

Size 3

• Band width: 13mm
• Recommended torque: 6.7 Nm
• Maximum torque: 9 Nm
• Maximum pressure: 102 Psi / Bar
• Minimum diameter: 55mm
• Maximum diameter: 70mm

Size 3X

• Band width: 13mm
• Recommended torque: 6.7 Nm
• Maximum torque: 9 Nm
• Maximum pressure: 44 Psi / Bar
• Minimum diameter: 60mm
• Maximum diameter: 80mm

Size 4

• Band width: 13mm
• Recommended torque: 6.7 Nm
• Maximum torque: 9 Nm
• Maximum pressure: 44 Psi / Bar
• Minimum diameter: 70mm
• Maximum diameter: 90mm

Size 4X

• Band width: 13mm
• Recommended torque: 6.7 Nm
• Maximum torque: 9 Nm
• Maximum pressure: 44 Psi / Bar
• Minimum diameter: 85mm
• Maximum diameter: 100mm

Size 5

• Band width: 13mm
• Recommended torque: 6.7 Nm
• Maximum torque: 9 Nm
• Maximum pressure: 44 Psi / Bar
• Minimum diameter: 90mm
• Maximum diameter: 120mm

Rackhams Reference : DBA3635IJ2
