Fixaball M12 Hex Bolt High Tensile 8.8 Galvanised DIN 931

For structural fastening applications, Fixaball M12 hex bolts are supplied in high tensile steel grade 8.8 with a galvanised finish and a partially threaded DIN 931 pattern. These hexagon head bolts are intended for use with a nut and washer, with a plain shank and metric coarse thread.

This range covers multiple M12 lengths, making it suitable where a specific bolt length is required within the DIN 931 format. The thread pitch for M12 is 1.75, and the listed spanner size is 19mm.

Available options

• M12 x 45
• M12 x 50
• M12 x 60
• M12 x 65
• M12 x 70
• M12 x 75
• M12 x 80
• M12 x 90
• M12 x 100
• M12 x 110
• M12 x 130
• M12 x 150

Key features

• Thread size: M12
• Material grade: high tensile steel grade 8.8
• Finish: galvanised
• Partially threaded hexagon head bolt
• Standard: DIN 931
• ISO 4014 reference stated
• Metric coarse thread pitch: 1.75
• Spanner size: 19mm

Specifications

• Width across flat (s) DIN 931: 18.67 min, 19.00 max
• Width across flat (s) ISO 4014: 17.73 min, 18.00 max
• DIN 931 thread length for lengths ≥125: 30
• DIN 931 thread length for lengths >125≥200: 36
• DIN 931 thread length for lengths ≥200: 49
• ISO 4014 thread length for lengths ≥125: 30

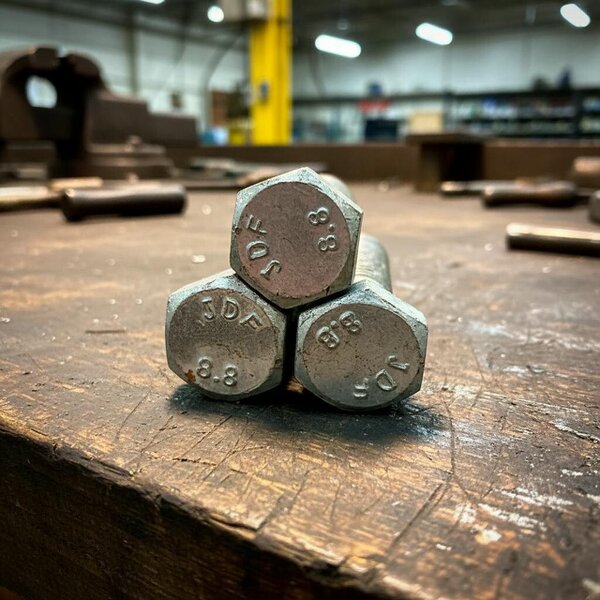

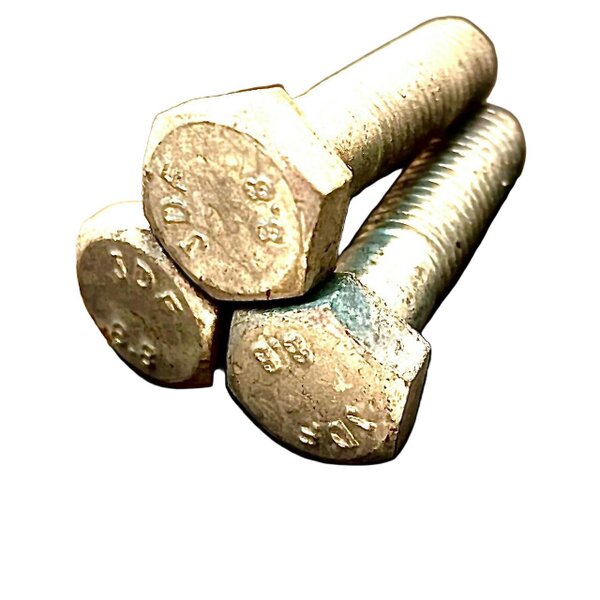

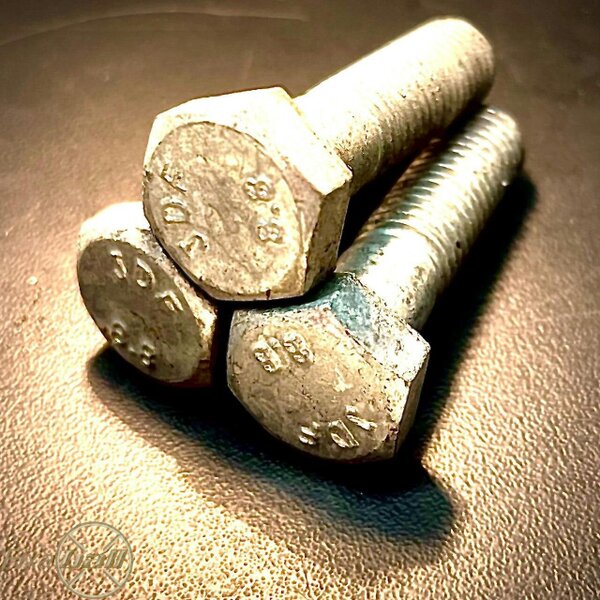

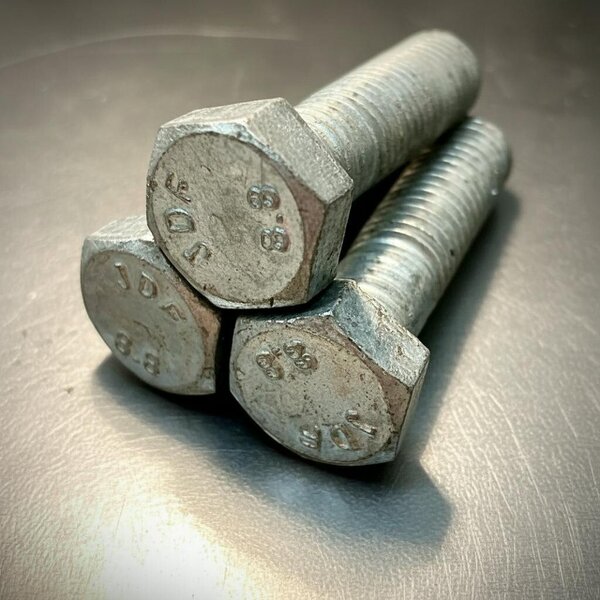

Image is for illustrative purposes only.
