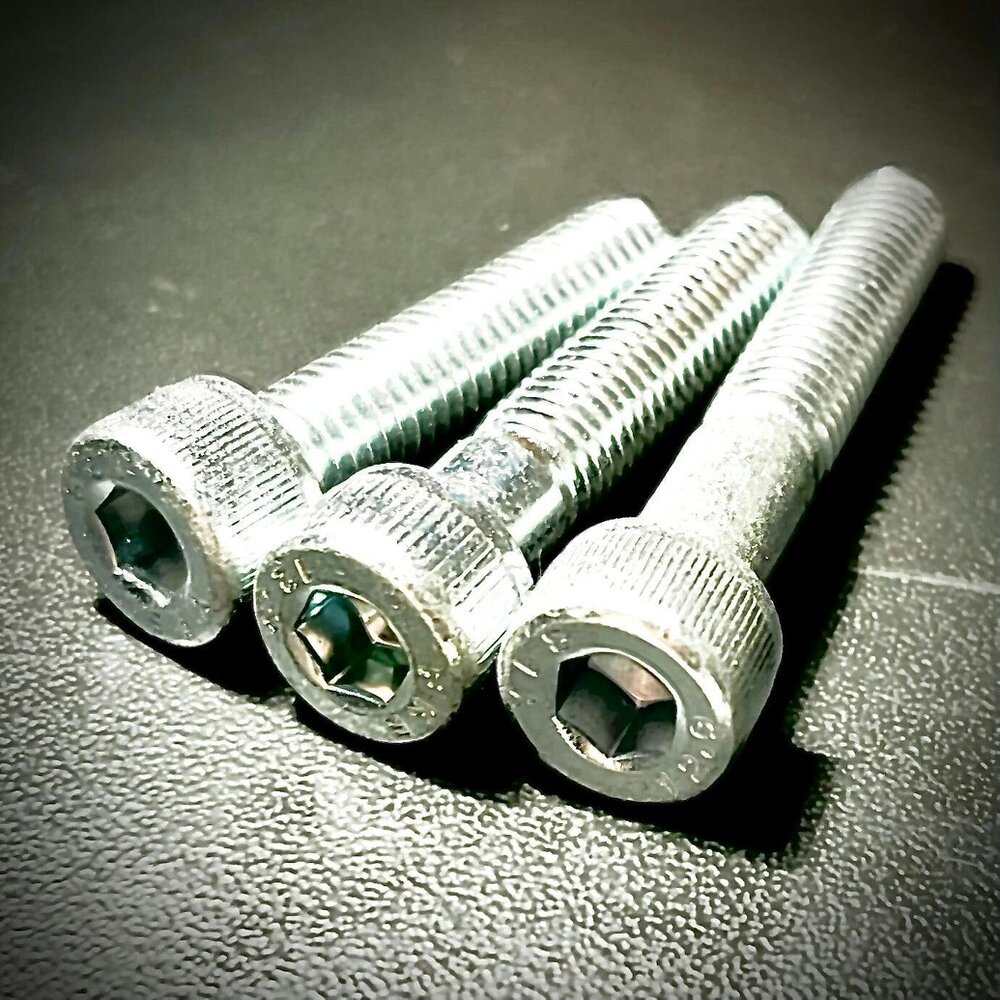

Fixaball M16 Socket Cap Allen Screw Bolt High Tensile 12.9 BZP

For high-tensile fastening applications, this Fixaball M16 socket cap screw bolt features a standard coarse M16 x 2.0mm metric thread and a bright zinc plated finish. Made from Grade 12.9 high tensile steel, it is produced to DIN 912 and ISO 4762 standards.

The cylindrical cap head has a 24mm diameter, a 16mm head height, and takes a 14mm Allen key. Length options include fully threaded and partially threaded versions, with bolt length measured excluding the head.

Available options

• 25mm length, fully threaded
• 30mm length, fully threaded
• 35mm length, fully threaded
• 40mm length, fully threaded
• 50mm length, fully threaded
• 55mm length, fully threaded
• 60mm length, fully threaded
• 65mm length, partially threaded
• 75mm length, partially threaded
• 80mm length, partially threaded
• 90mm length, partially threaded
• 100mm length, partially threaded
• 120mm length, partially threaded
• 130mm length, partially threaded
• 140mm length, partially threaded
• 150mm length, partially threaded
• 190mm length, partially threaded

Key features

• High tensile steel Grade 12.9
• Bright zinc plated finish
• Metric coarse thread: M16 x 2.0mm pitch
• Standards: DIN 912, ISO 4762

Specifications

• Head diameter: 24mm
• Head height: 16mm
• Allen key size: 14mm
• Bolt lengths do not include the head

Sizing

• 25mm
• 30mm
• 35mm
• 40mm
• 50mm
• 55mm
• 60mm
• 65mm
• 75mm
• 80mm
• 90mm
• 100mm
• 120mm
• 130mm
• 140mm
• 150mm
• 190mm
