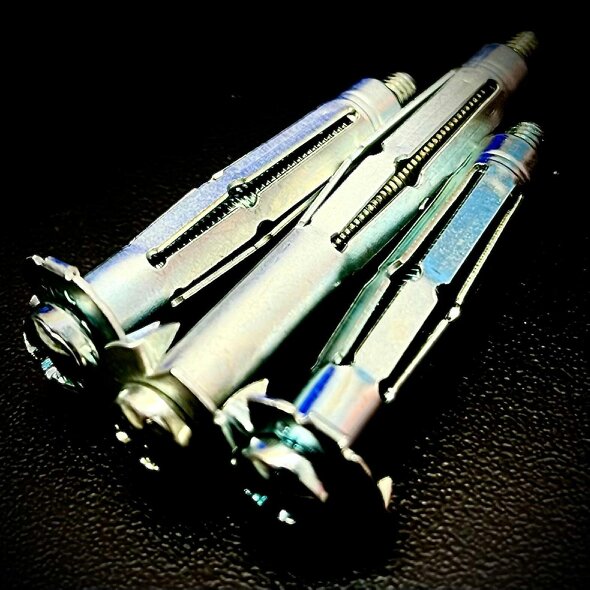

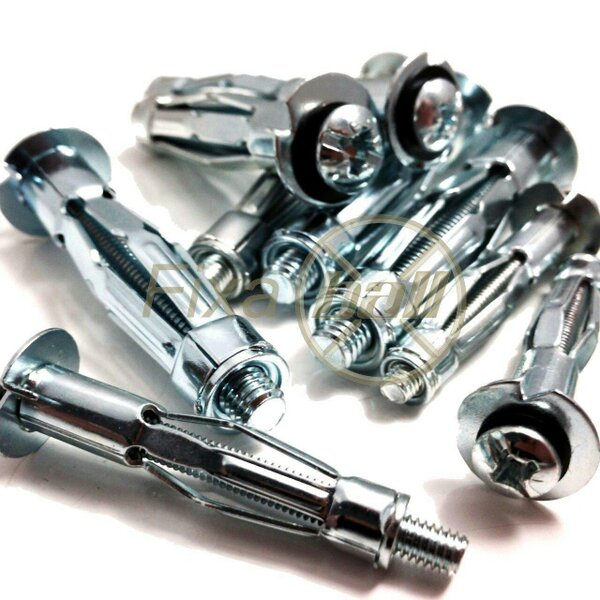

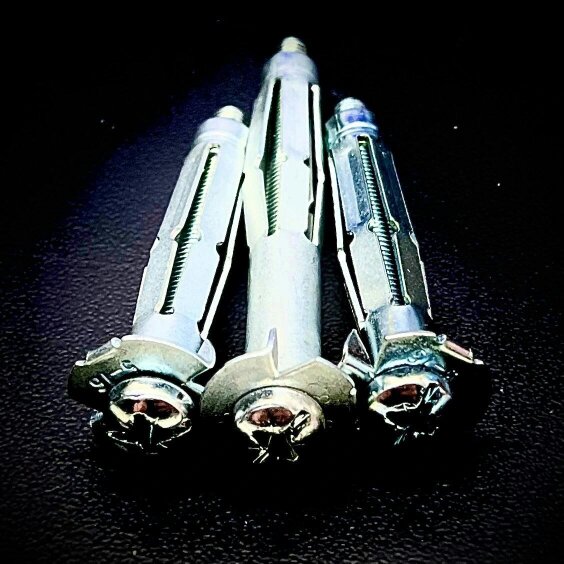

Fixaball M5 Hollow Wall Anchor Brolly Cavity Wall Anchor

For plasterboard and drywall cavity fixing, these Fixaball M5 hollow wall anchors provide a heavy duty brolly fixing option for most cavity wall situations. Each anchor features a combination screw head that accepts both slot and pozi drivers, while two anti-rotation teeth help prevent spinning during installation.

The fixing can be set either with a spring loaded setting tool or by tightening and removing the screw. Strengthened anchor wings are included for maximum load capacity. Available in multiple M5 size options, these anchors suit different fixture thicknesses and grab ranges.

Key features

• M5 / 5mm hollow wall anchors
• Suitable for most cavity wall situations
• Combination screw head accepts slot or pozi drivers
• 2 anti-rotation teeth help prevent the anchor from spinning
• Strengthened anchor wings for maximum load capacity

Available options

• 5mm x 45mm hollow wall anchors
• 5mm x 60mm hollow wall anchors
• 5mm x 70mm hollow wall anchors

Specifications

• Hole diameter: M5 - 8mm hole
• Setting method: spring loaded setting tool or tightening and removing the screw
• Driver type: slot or pozi

Sizing

• 5mm x 45mm, 9mm hole, 5-10mm grab
• 5mm x 60mm, 9mm hole, 5-13mm grab
• 5mm x 70mm, 9mm hole, 17-25mm grab

Care and maintenance

Insert the anchor so the points on the shoulder enter the face of the plasterboard. Tighten the screw to set the anchor legs in position, then remove the screw, align the fixture and replace the screw until tight.
