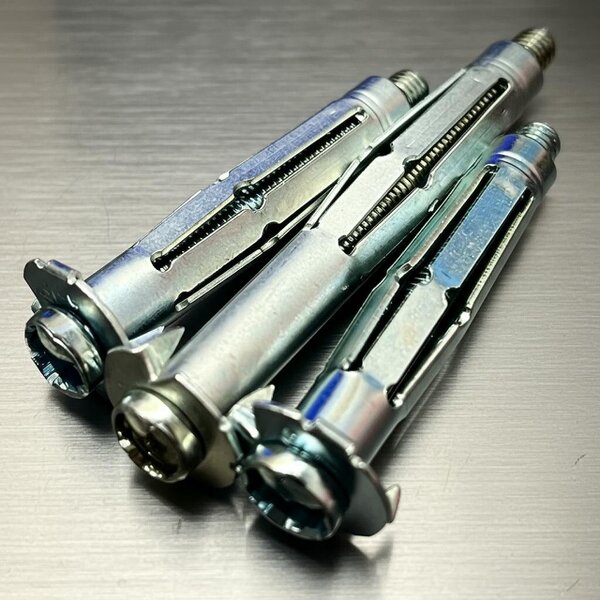

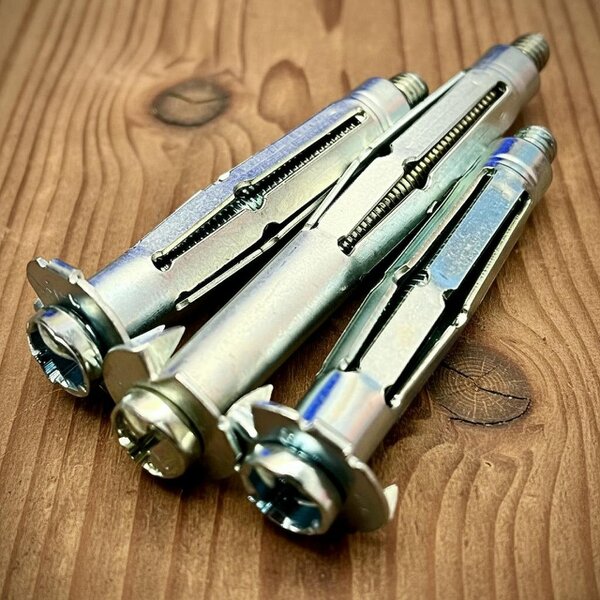

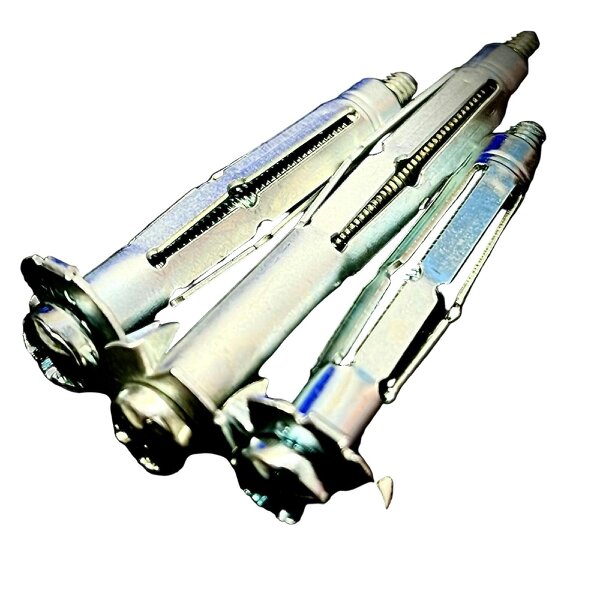

Fixaball M6 Hollow Wall Anchor Brolly Cavity Wall Anchor

For plasterboard and drywall cavity fixing, the Fixaball M6 hollow wall anchor provides a heavy duty brolly fixing for a range of cavity wall situations. It features a combination screw head that accepts both slot and pozi drivers, while 2 anti-rotation teeth help prevent the anchor from spinning during installation.

The fixing can be set in place with a spring loaded setting tool or by tightening and removing the screw. Strengthened anchor wings provide maximum load capacity. Available in two size options, it suits different grab ranges and fixture thicknesses.

Available options

• 6mm x 60mm hollow wall anchor - 10mm hole x 7-13mm grab
• 6mm x 70mm hollow wall anchor - 10mm hole x 16-24mm grab

Key features

• M6 / 6mm heavy duty hollow wall anchor
• Suitable for most cavity wall situations
• Combination screw head accepts slot or pozi drivers
• 2 anti-rotation teeth help prevent spinning
• Strengthened anchor wings give maximum load capacity
• Can be set using a spring loaded setting tool or by tightening and removing the screw

Specifications

• Hole diameter: M6 - 10mm hole
• Fixture thickness: 7-16mm for M6x60
• Fixture thickness: 16-24mm for M6x70

Sizing

• M6x60 - 60mm
• M6x70 - 70mm

Care and maintenance

Insert the anchor so the points on the shoulder enter the face of the plasterboard. Tighten the screw to set the anchor legs, remove the screw, then align the fixture and replace the screw until tight.

Rackhams Reference : TQFNY6Q61A
