Fixaball M6 Wall Shield Anchor Stud Nut Masonry Concrete Brick

For masonry fixings that need a projecting threaded section during installation, this Fixaball M6 shield anchor uses a nut and stud configuration with a 6mm thread diameter. It is a heavy duty expansion fixing for concrete, brick, block and non-porous stone, with a protruding threaded bar that acts as a locator when positioning fixtures or materials.

The assembly comprises a 3 part shield, threaded bar, nut and washer. Tightening the nut expands the anchor at 3 points within the substrate. Max joining thicknesses available are 10mm, 25mm and 50mm.

Key features

• Thread diameter: M6 / 6mm
• Nut and stud type projecting bolt masonry shield anchor
• Suitable for concrete, brick, block and non-porous stone
• 3 part shield with threaded bar, nut and washer
• Threaded bar grade: 8.8
• Expands at 3 points as the nut is tightened

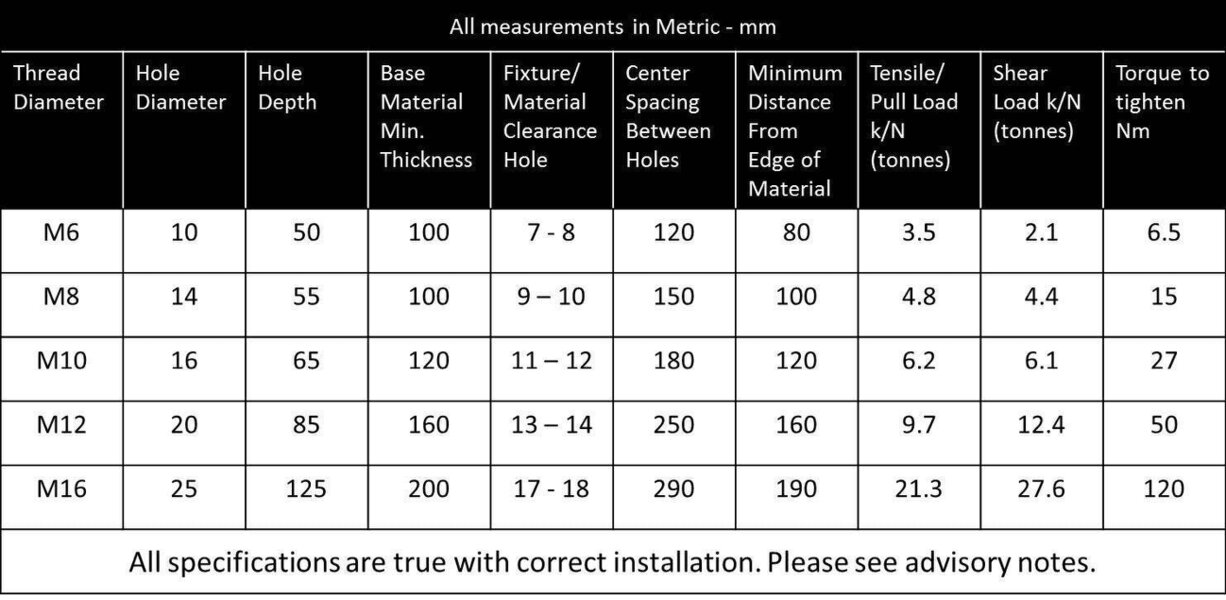

Specifications

• Hole diameter: 12
• Hole depth: 50
• Fixture / material clearance hole: 7 - 8
• Center spacing between holes: 120
• Minimum distance from edge of material: 80
• Tensile / pull load: 3.5 k/N
• Shear load: 2.1 k/N
• Torque to tighten: 6.5 Nm

Available options

• Max joining thickness: 10mm
• Max joining thickness: 25mm
• Max joining thickness: 50mm

Care and maintenance

Take care not to damage the thread during installation.

Safety information

• Use the correct sized drilled hole.
• Clear and clean the hole before fitting, using a brush and air pump.
• Performance figures apply with correct installation.
• The fixing performance depends on the grade of the material it is fixed into.

Rackhams Reference : I6W1DQCMY2
