Fixaball M8 Through Bolts Heavy Duty Masonry Anchor BZP ETA Approved

For secure fixing into non-cracked concrete, masonry and non-porous stone, these Fixaball M8 through bolts are supplied in a zinc finish and offered in a range of lengths. They are suitable for brick, blocks and concrete where a through fixing is required.

The fixing passes through the fixture once positioned, with holes matching the anchor diameter. Reduced embedment can help avoid contact with rebars or reinforcement cages, while the cold formed body provides consistent dimensional accuracy and material stability.

Key features

• Thread size: M8
• Material and finish: zinc
• Suitable for non-cracked concrete, masonry, brick, blocks and non-porous stone
• ETA approved
• Cold formed body for dimensional accuracy and material stability

Available options

• 50mm
• 65mm
• 75mm
• 90mm
• 100mm
• 115mm
• 130mm

Specifications

• Anchor hole size: 8mm
• Hole diameter: 9
• Installation temperature range for base material: -5 / + 40 ºC
• 80 ºC for a short period of time

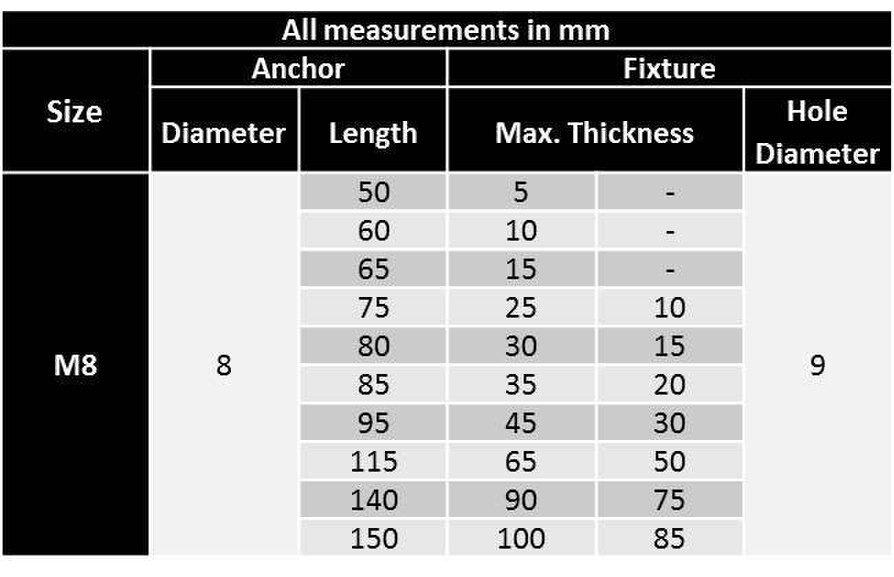

Sizing

• 8mm x 50mm
• 8mm x 65mm
• 8mm x 75mm
• 8mm x 90mm
• 8mm x 100mm
• 8mm x 115mm
• 8mm x 130mm

Safety information

• Check the concrete strength before installation to ensure its class or standard is suitable.
• The concrete base must be compact with insignificant porosity.
• Minimum installation depth values must always be respected for anchor depth, anchor-to-anchor distances and anchor-to-edge distances.
• Drill to the specified minimum depth and diameter, perpendicular to the base material surface.
• Take special care when drilling near reinforcement areas to avoid damage.
• Clean holes thoroughly to remove dust and debris with a suitably sized brush.
• When temperature is below 0ºC, ensure water does not seep into the hole.
• Do not apply any intermediate layer between the material being fixed and the washer, including sealing products.
• Apply the specified torque with a torque wrench.
• If holes in the material being fixed are larger than required, a thicker washer of bigger diameter is necessary.
