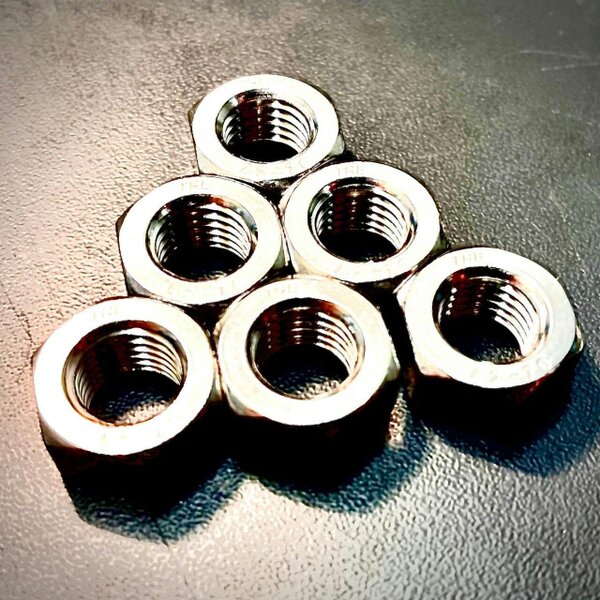

Fixaball Metric Fine Pitch Full Hex Nuts A2 304 Stainless Steel DIN934

Available from Fixaball, these full hexagonal nuts are manufactured in A2/304 stainless steel and produced to DIN 934. The range covers metric fine, extra fine and super fine pitch thread options, including 1.0mm, 1.25mm, 1.5mm and 2.0mm pitches across selected sizes.

Suitable for use with matching metric threaded fasteners, this selection includes fine pitch variants from M8 through to M30. The hexagonal form allows use with the correct spanner size across the flat faces.

Key features

• A2/304 stainless steel
• Full hexagonal nut
• DIN 934
• Metric fine, extra fine and super fine pitch options
• Available pitch options include 1.0mm, 1.25mm, 1.5mm and 2.0mm

Available options

• M8 x 0.75
• M8 x 1.0
• M10 x 1.0
• M10 x 1.25
• M12 x 1.0
• M12 x 1.25
• M12 x 1.5
• M14 x 1.5
• M16 x 1.5
• M18 x 1.5
• M20 x 1.5
• M20 x 2.0
• M22 x 1.5
• M24 x 1.5
• M24 x 2.0
• M27 x 1.5
• M27 x 2.0
• M30 x 1.5

Specifications

• M8 standard/coarse pitch: 1.25
• M8 fine pitch: 1.0
• M10 standard/coarse pitch: 1.5
• M10 fine pitch: 1.25
• M10 super fine pitch: 1.0
• M12 standard/coarse pitch: 1.75
• M12 fine pitch: 1.5
• M12 super fine pitch: 1.25
• M14 standard/coarse pitch: 2.0
• M14 fine pitch: 1.5
• M16 standard/coarse pitch: 2.0
• M16 fine pitch: 1.5
• M18 standard/coarse pitch: 2.5
• M18 fine pitch: 2.0
• M18 super fine pitch: 1.5
• M20 standard/coarse pitch: 2.5
• M20 fine pitch: 2.0
• M20 super fine pitch: 1.5
• M22 standard/coarse pitch: 2.5
• M22 fine pitch: 2.0
• M22 super fine pitch: 1.5
• M24 standard/coarse pitch: 3.0
• M24 fine pitch: 2.0
• M27 standard/coarse pitch: 3.0
• M27 fine pitch: 2.0
• M30 standard/coarse pitch: 3.5
• M30 fine pitch: 2.0

Rackhams Reference : Z7E8RS7R7J
