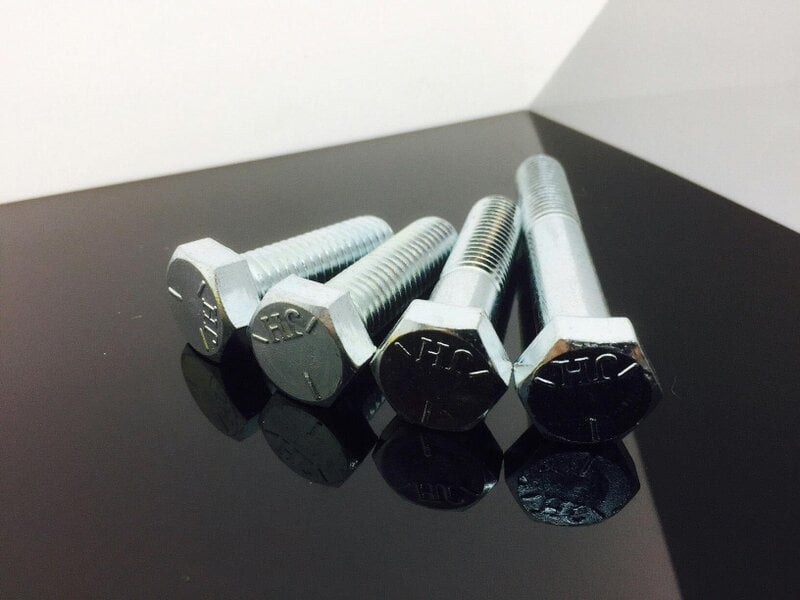

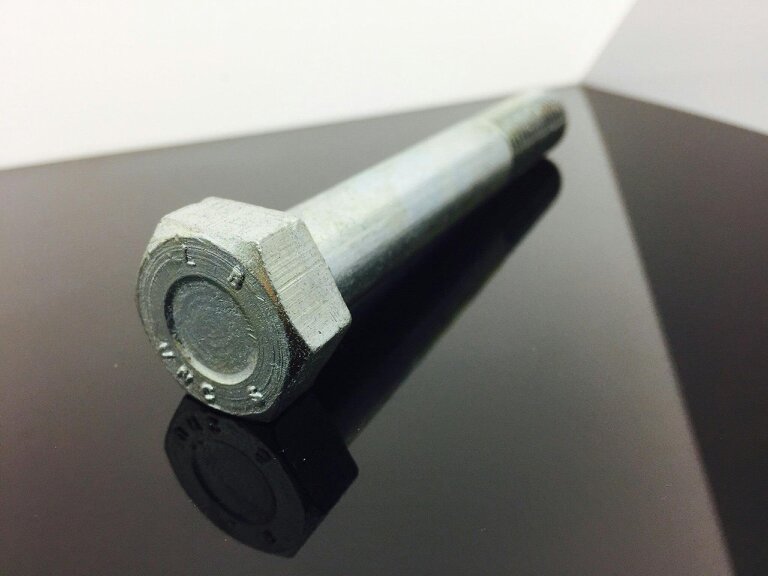

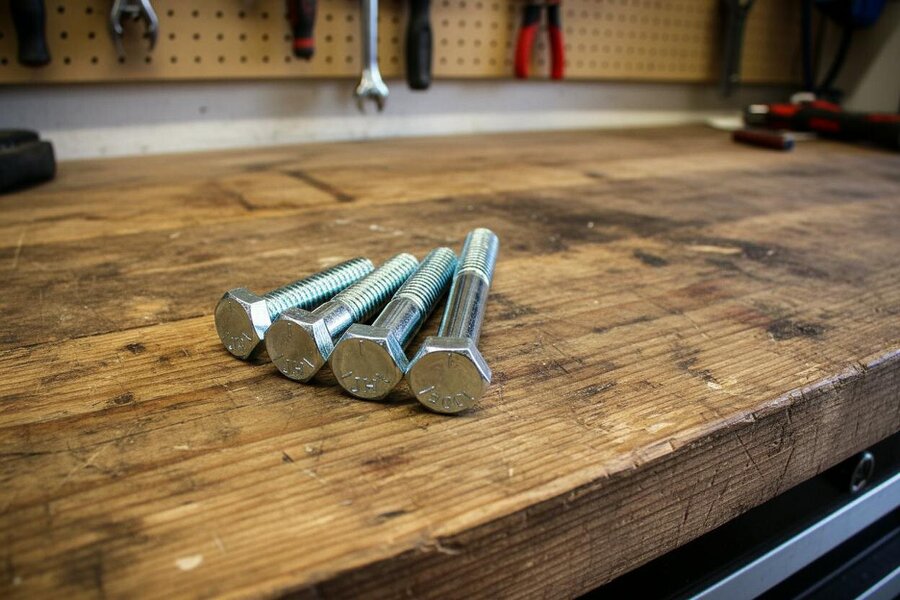

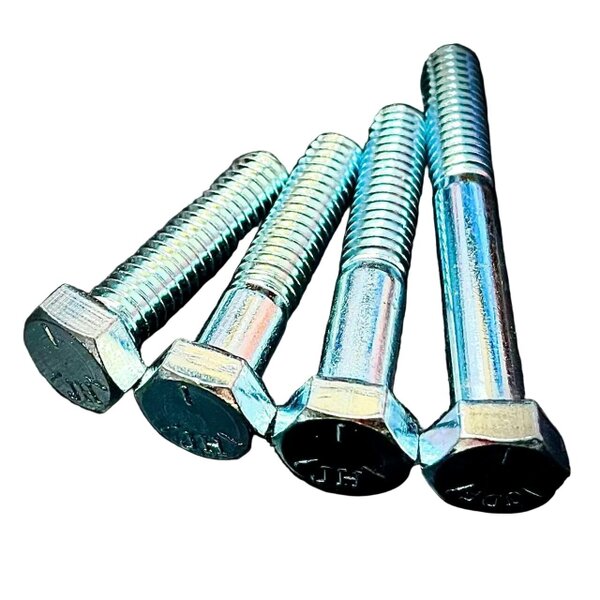

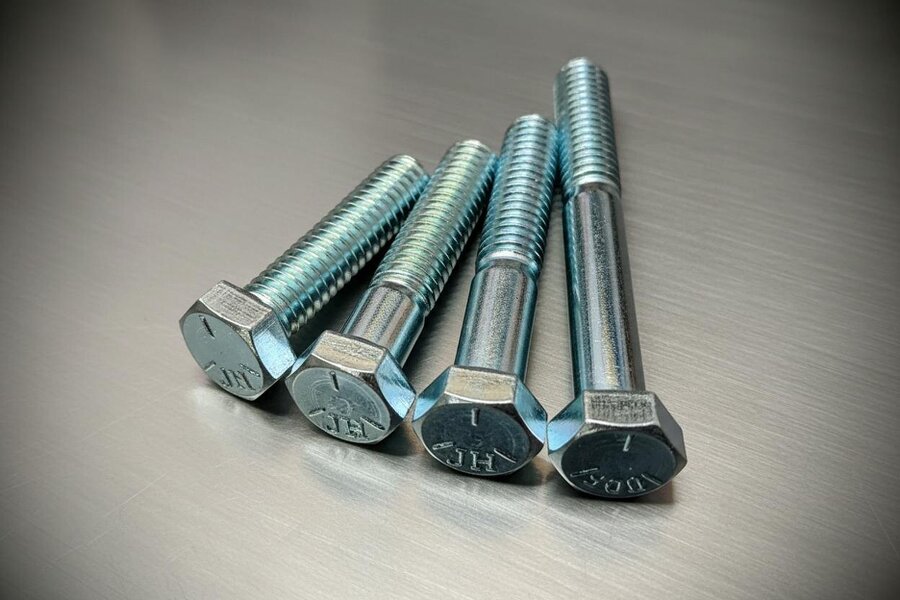

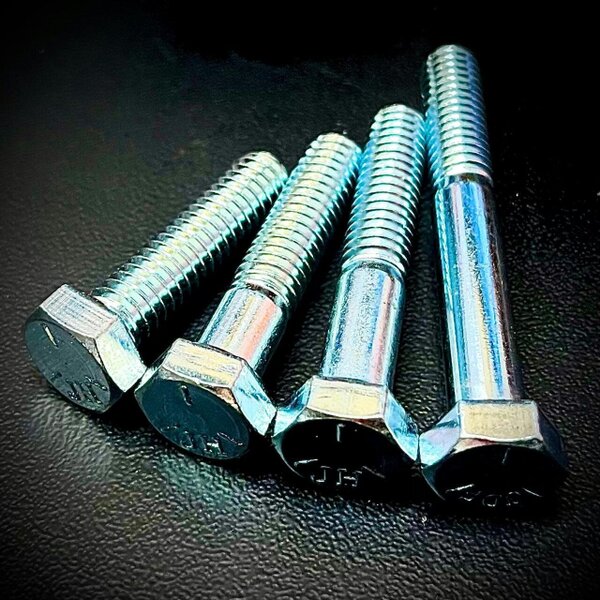

Fixaball UNC 5/16" Hex Bolt Set Screws High Tensile 8.8 Zinc BZP

Available in a range of lengths, these Fixaball UNC 5/16" hexagon head fasteners are supplied in high tensile Grade 5 steel with a zinc BZP Cr3 finish. The thread specification is 5/16" UNC with 18 T.P.I, with shorter sizes offered as fully threaded sets and longer sizes as partially threaded bolts.

UNC and UNF high tensile standard fasteners are marked with a "5", comparable with metric high tensile 8.8. This range suits applications requiring either a fully threaded hexagon set screw or a part plain shank hexagon bolt, depending on the selected length.

Available options

• 5/16"-18 x 1/2" (FT)
• 5/16"-18 x 5/8" (FT)
• 5/16"-18 x 3/4" (FT)
• 5/16"-18 x 1" (FT)
• 5/16"-18 x 1 1/4" (FT)
• 5/16"-18 x 1 1/2" (PT)
• 5/16"-18 x 1 3/4" (PT)
• 5/16"-18 x 2" (PT)
• 5/16"-18 x 2 1/4" (PT)
• 5/16"-18 x 2 1/2" (PT)
• 5/16"-18 x 2 3/4" (PT)
• 5/16"-18 x 3" (PT)
• 5/16"-18 x 3 1/4" (PT)
• 5/16"-18 x 3 1/2" (PT)
• 5/16"-18 x 3 3/4" (PT)
• 5/16"-18 x 4" (PT)
• 5/16"-18 x 4 1/2" (PT)
• 5/16"-18 x 5" (PT)
• 5/16"-18 x 5 1/2" (PT)
• 5/16"-18 x 6" (PT)
• 5/16"-18 x 7" (PT)

Key features

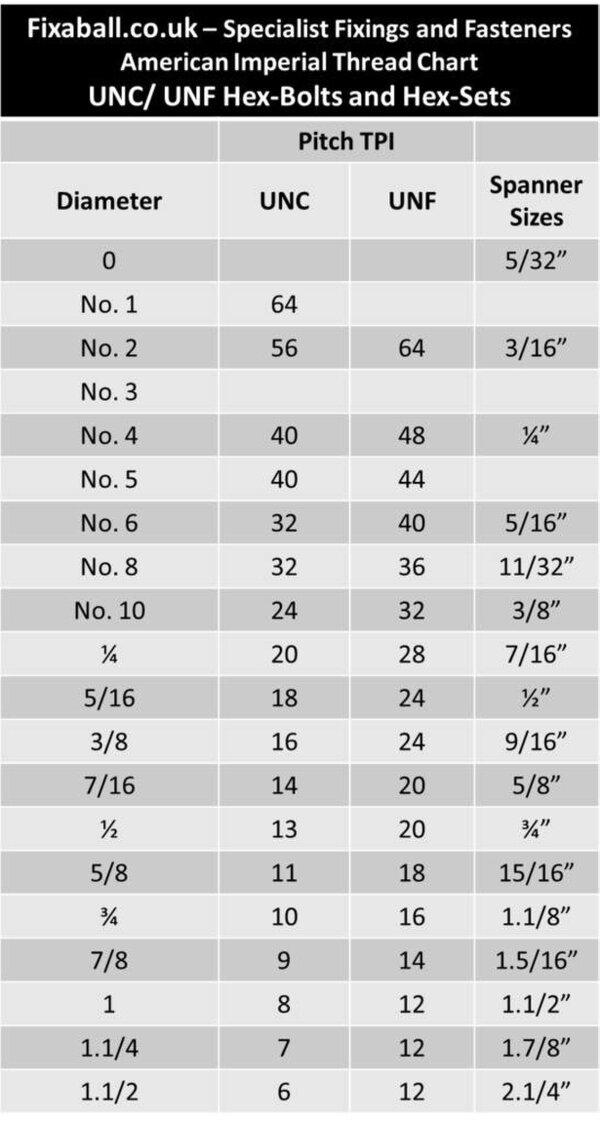

• Thread size: UNC 5/16"
• Thread pitch: 18 T.P.I (threads per inch)
• High tensile Grade 5 steel
• Comparable with metric high tensile 8.8
• Zinc BZP Cr3 finish
• Fully threaded set screws in selected shorter lengths
• Partially threaded bolts in selected longer lengths

Specifications

• UNC and UNF high tensile standard is marked with a "5"

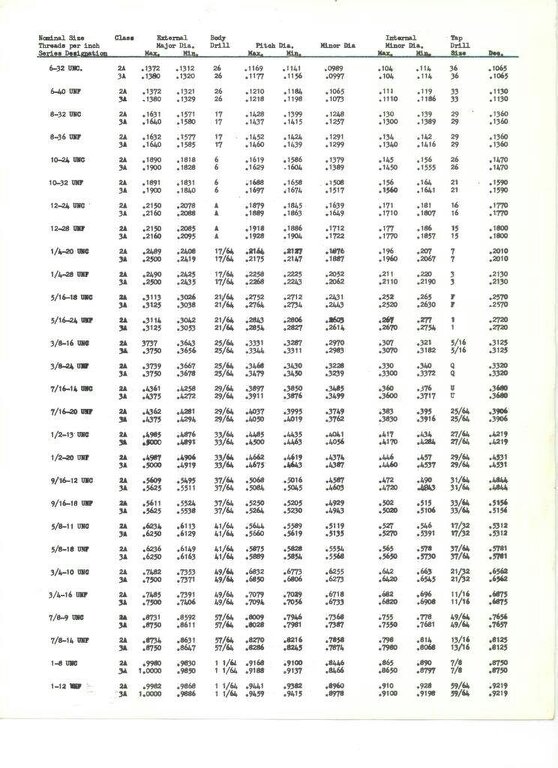

• Unified National Coarse (UNC) thread form with a 60 degree flank angle, rounded roots and flat crests
• Unified thread based on inch sizes

Sizing

• 5/16"-18 x 1/2"
• 5/16"-18 x 5/8"
• 5/16"-18 x 3/4"
• 5/16"-18 x 1"
• 5/16"-18 x 1 1/4"
• 5/16"-18 x 1 1/2"
• 5/16"-18 x 1 3/4"
• 5/16"-18 x 2"
• 5/16"-18 x 2 1/4"
• 5/16"-18 x 2 1/2"
• 5/16"-18 x 2 3/4"
• 5/16"-18 x 3"
• 5/16"-18 x 3 1/4"
• 5/16"-18 x 3 1/2"
• 5/16"-18 x 3 3/4"
• 5/16"-18 x 4"
• 5/16"-18 x 4 1/2"
• 5/16"-18 x 5"
• 5/16"-18 x 5 1/2"
• 5/16"-18 x 6"
• 5/16"-18 x 7"
