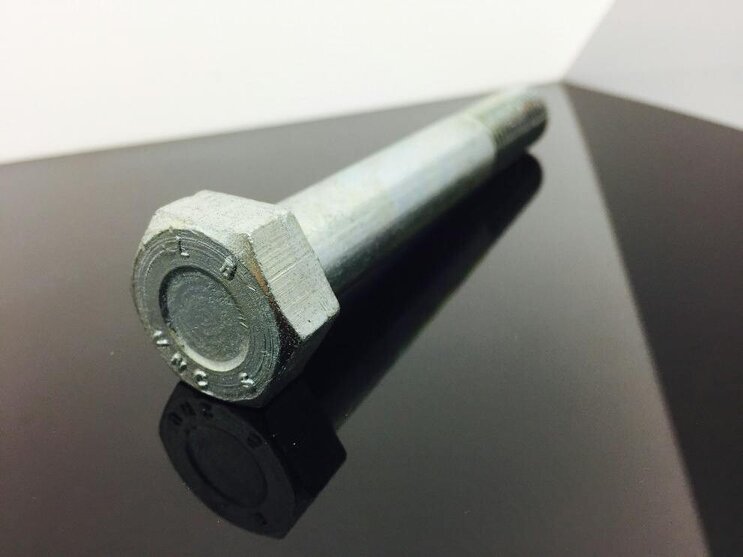

Fixaball UNC 7/16" Hex Bolt Set Screws High Tensile 8.8 Zinc BZP

For inch-based fastening applications, these Fixaball UNC 7/16" hexagon head bolts and set screws are supplied in high tensile grade 5 steel, comparable with 8.8, with a zinc/BZP/Cr3 finish. They feature a 7/16", 14 T.P.I. UNC thread and are available in both fully threaded and partially threaded forms to suit different fixing requirements.

Partially threaded versions are supplied as hexagon bolts, while fully threaded versions are supplied as hexagon set screws. DIN 931 compliance is stated for this range.

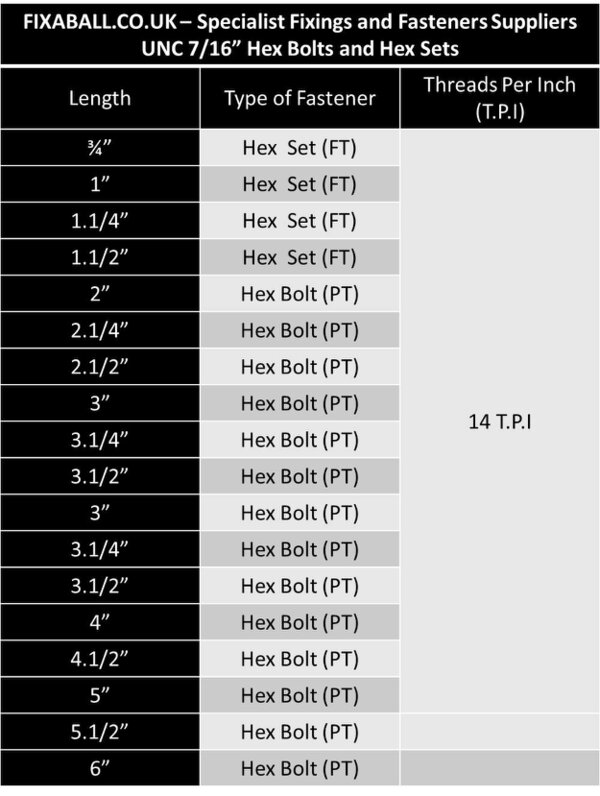

Available options

• 7/16"-14 x 3/4" (FT)
• 7/16"-14 x 1" (FT)
• 7/16"-14 x 1 1/4" (FT)
• 7/16"-14 x 1 1/2" (FT)
• 7/16"-14 x 1 3/4" (PT)
• 7/16"-14 x 2" (PT)
• 7/16"-14 x 2 1/4" (PT)
• 7/16"-14 x 2 1/2" (PT)
• 7/16"-14 x 2 3/4" (PT)
• 7/16"-14 x 3" (PT)
• 7/16"-14 x 3 1/4" (PT)
• 7/16"-14 x 3 1/2" (PT)
• 7/16"-14 x 4" (PT)
• 7/16"-14 x 4 1/2" (PT)
• 7/16"-14 x 5" (PT)
• 7/16"-14 x 5 1/2" (PT)

Key features

• UNC 7/16", 14 T.P.I. thread
• Hexagon head
• High tensile 5 grade steel (8.8)
• Zinc / BZP / Cr3 finish
• Available as FT fully threaded set screws and PT partially threaded bolts
• DIN 931

Specifications

• UNC and UNF high tensile standard is marked with a 5
• Unified National Coarse (UNC) thread form with a 60 degree flank angle, rounded roots and flat crests
• Unified thread based on inch sizes

Sizing

• 7/16"-14 x 3/4"
• 7/16"-14 x 1"
• 7/16"-14 x 1 1/4"
• 7/16"-14 x 1 1/2"
• 7/16"-14 x 1 3/4"
• 7/16"-14 x 2"
• 7/16"-14 x 2 1/4"
• 7/16"-14 x 2 1/2"
• 7/16"-14 x 2 3/4"
• 7/16"-14 x 3"
• 7/16"-14 x 3 1/4"
• 7/16"-14 x 3 1/2"
• 7/16"-14 x 4"
• 7/16"-14 x 4 1/2"
• 7/16"-14 x 5"
• 7/16"-14 x 5 1/2"

Rackhams Reference : RFYD4WN16F
