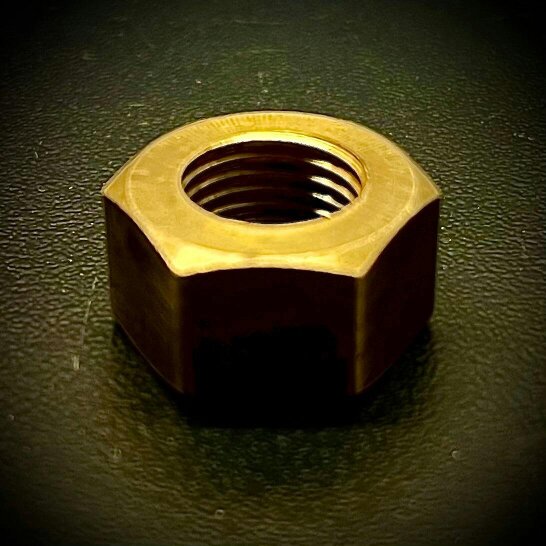

Fixaball UNF Full Hexagon Nut Brass 1/2" 5/8"

For Unified thread applications, this Fixaball full hexagon nut is supplied in solid brass and offered in UNF sizes 1/2" and 5/8". The hexagonal form suits use with matching threaded fasteners where a full nut is required.

Available thread options are 1/2" - 20 tpi and 5/8" - 18 tpi. This product follows Unified thread standards.

Available options

• 1/2" - 20 tpi
• 5/8" - 18 tpi

Key features

• Solid brass
• Full hexagon nut
• Unified National Fine (UNF) thread form
• Thread option: 1/2" - 20 tpi
• Thread option: 5/8" - 18 tpi

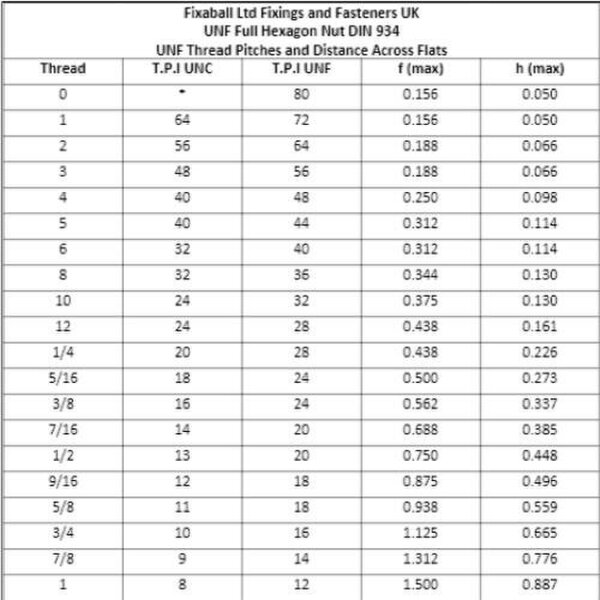

Specifications

• Thread form with a 60 degree flank angle, rounded roots and flat crests
• 1/2: T. P. I UNC 13
• 1/2: T. P. I UNF 20
• 1/2: f (max) 0. 750
• 1/2: h (max) 0. 448
• 5/8: T. P. I UNC 11
• 5/8: T. P. I UNF 18
• 5/8: f (max) 0. 938
• 5/8: h (max) 0. 559

Rackhams Reference : CYEQS39NH9
