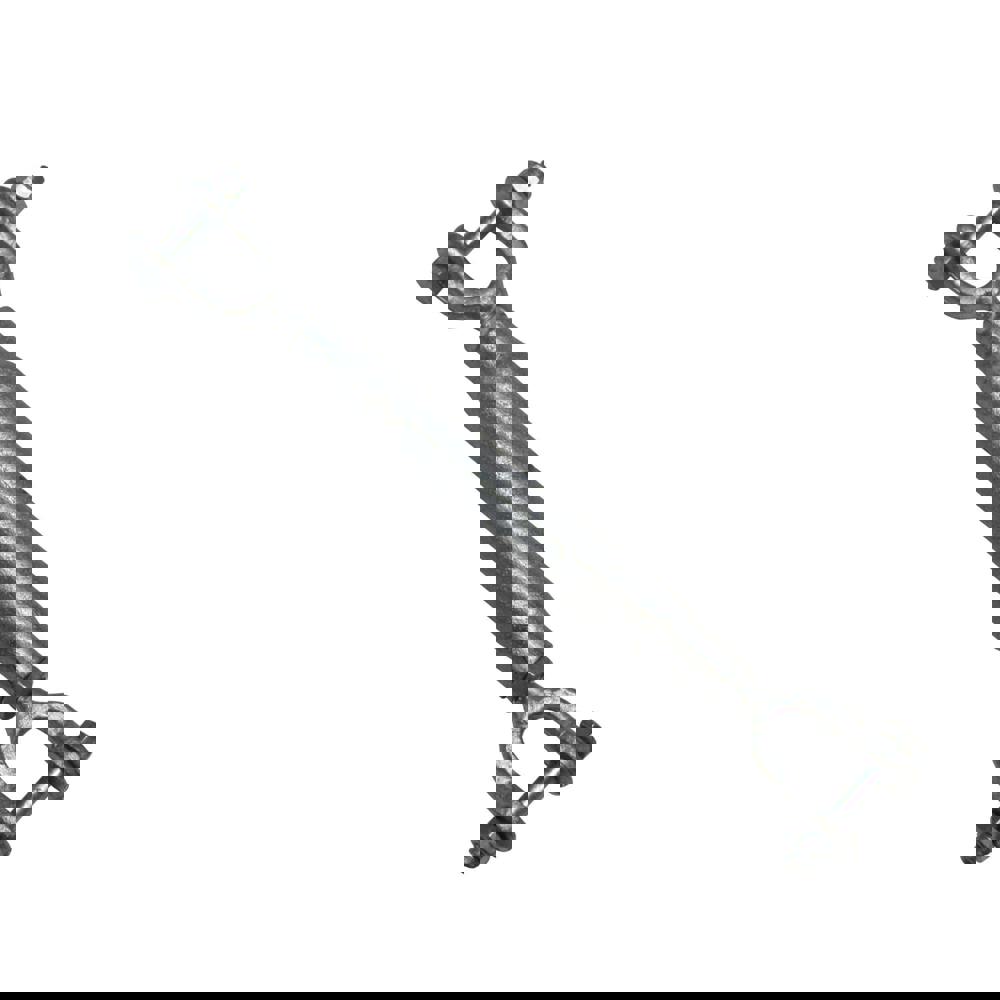

Galvanised Straining Rigging Screw Jaw Jaw 20MM (Closed Body Turnbuckle Wire Rope Tensioner)

Designed for controlled tensioning, the Galvanised Jaw & Jaw Rigging Screw is a practical choice for tightening wire rope across engineering and construction projects. With jaw-and-jaw ends, it also suits on-board boat use and applications within the caravan industry, including tethering your vehicle where secure adjustment is required.

Available in a wide range of sizes from 6mm up to 64mm, this galvanised rigging screw can be selected to match the scale of your set-up, whether you are working on general straining tasks or more demanding tensioning requirements.

Key features

• Galvanised rigging screw for adding tension to wire rope
• Jaw and jaw ended design
• Suitable for engineering and construction applications
• Suitable for use on board boats
• Suitable for caravan industry use, including tethering a vehicle
• Sizes available from 6mm to 64mm

Sizing

• 6mm: A 6mm, B 105mm, C 144mm, D 5.7mm, E 8mm, F 225mm
• 8mm: A 8mm, B 118mm, C 168mm, D 8mm, E 11mm, F 250mm
• 10mm: A 10mm, B 137mm, C 192mm, D 9mm, E 12mm, F 300mm
• 12mm: A 12mm, B 167mm, C 245mm, D 12mm, E 14mm, F 375mm
• 16mm: A 16mm, B 213mm, C 325mm, D 16mm, E 17mm, F 480mm
• 20mm: A 20mm, B 235mm, C 435mm, D 24.5mm, E 25mm, F 655mm
• 22mm: A 22mm, B 300mm, C 510mm, D 24.5mm, E 25mm, F 790mm
• 25mm: A 25mm, B 310mm, C 540mm, D 31mm, E 31.5mm, F 800mm
• 32mm: A 32mm, B 380mm, C 725mm, D 37mm, E 39mm, F 1100mm
• 38mm: A 38mm, B 405mm, C 850mm, D 47mm, E 49mm, F 1200mm
• 44mm: A 44mm, B 405mm, C 875mm, D 54mm, E 54mm, F 1270mm
• 52mm: A 52mm, B 420mm, C 890mm, D 63mm, E 63mm, F 1350mm
• 64mm: A 64mm, B 410mm, C 910mm, D 64mm, E 64mm, F 1370mm
