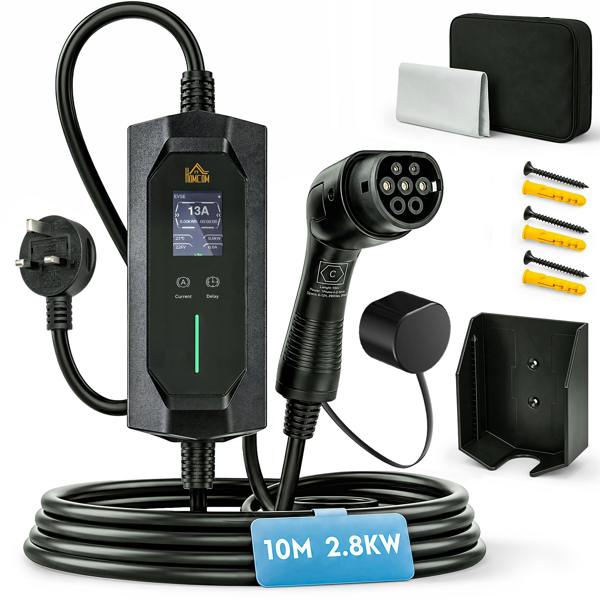

HOMCOM EV Charger Type 2 to 3 Pin Plug, 10 m, 2.8 kW, 6-13 A

For Type 2 electric and plug-in hybrid vehicles, this HOMCOM EV charger provides adjustable AC charging from 1.3 kW to 2.8 kW with selectable current settings of 6A, 8A, 10A and 13A. A 10 m cable gives added reach to charging points, while the LCD screen displays real-time charging information during use.

Built with a PC shell, copper core and TPU cable, it is rated IP65 and operates in temperatures from -30C to +50C. The charger includes a 1-12 hour delay timer in 1-hour increments for off-peak charging, and it supports both ground-free mode for temporary outlets and grounded mode. Protection functions cover over-temperature, over-current, over and under-voltage, leakage, short circuits and surges.

Key features

• Compatible with EVs and PHEVs with Type 2 (IEC 62196-2) inlet
• Rated 2.8 kW, 13 A, AC 200-250 V

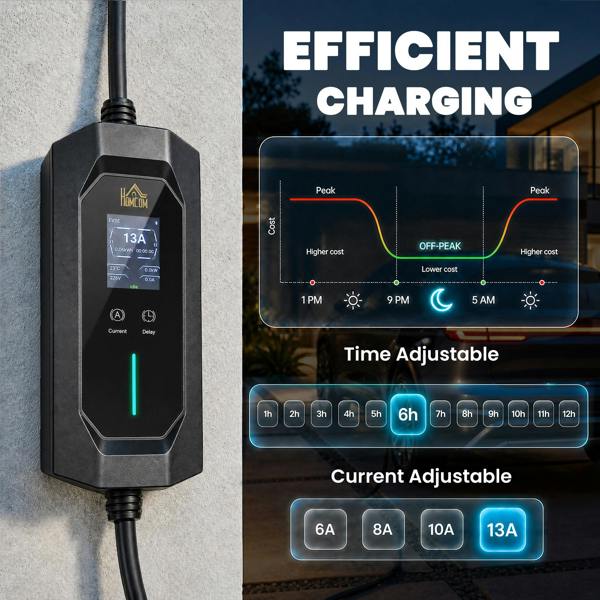

• Adjustable current settings: 6A, 8A, 10A and 13A
• Adjustable power range: 1.3 kW-2.8 kW
• 1-12 h delay timer in 1-h increments
• IP65 protection rating
• PC shell, copper core and TPU cable

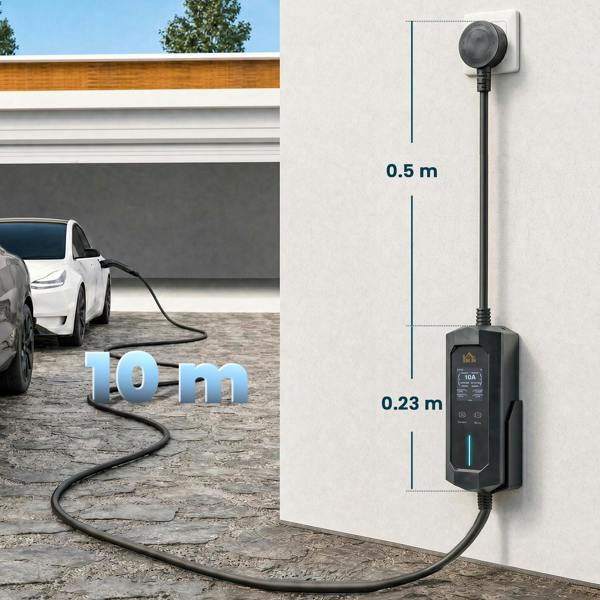

• 10 m cable length
• LCD screen with real-time charging monitoring
• Model number: C20-115V70BK

Specifications

• Working temperature: -30C to +50C
• Control box dimensions: 23L x 9.5W x 5.5H cm

Compliance and regulatory information

• CE certified
• RoHS certified
• Fitment: EVs and PHEVs with Type 2 (IEC 62196-2) inlet

Safety information

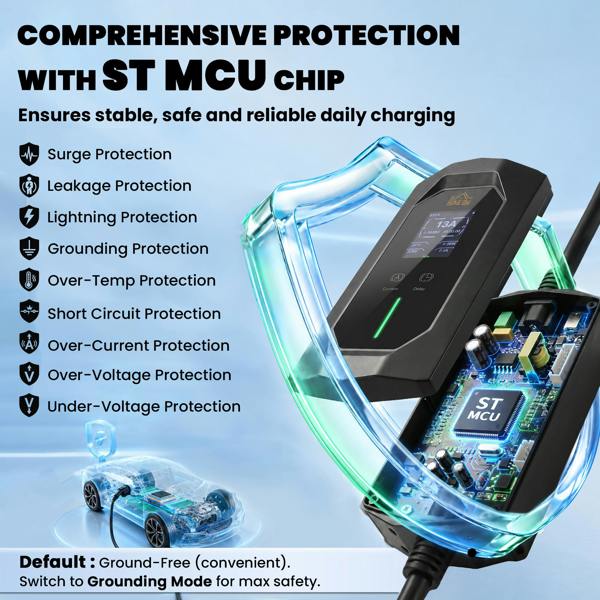

• Offers protection against over-temp, over-current, over/under-voltage, leakage, short circuits and surges
• We recommend using a new wall socket to prevent loose connections and overheating

About this product

Who is it for

Suited to EV and PHEV drivers using vehicles with a Type 2 (IEC 62196-2) inlet.

When and where to use it

Suitable for charging at outlets where a 10 m cable and delayed off-peak charging are useful.

Rackhams Reference : YYFG9TW4ED
