Living and Home 8L 16KW Outdoor Instant Gas Water Heater with Shower Head

Designed with a focus on safety and energy efficiency, this gas water heater meets your outdoor bathing needs.

Equipped with an overheating protection function, the maximum water temperature can be adjusted to 65℃ to ensure safety during use.

The starting water pressure range is 0.2~10 bar, adapting to various water pressure conditions.

The maximum power output is 16KW, which can heat the water source quickly and efficiently.

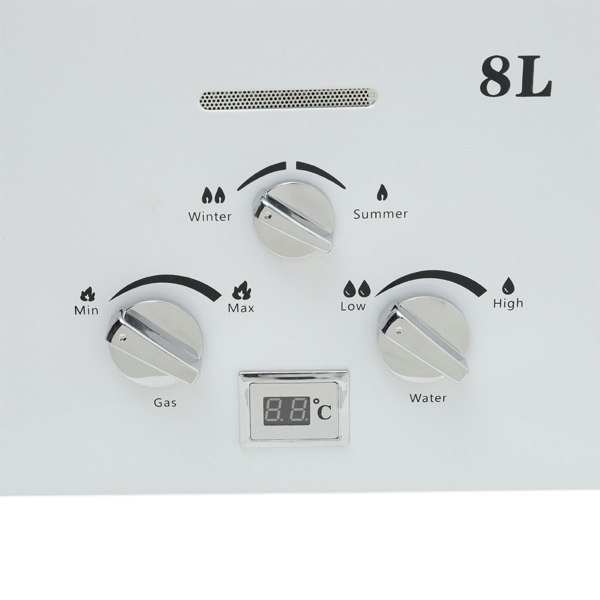

Both summer and winter modes are available to help you adjust the operating state of your water heater according to seasonal changes and maximize energy savings.

A LED display shows the current water temperature for easy real-time viewing.

Whether it is a cold winter or a hot summer, this water heater can provide you with an ideal hot water experience.

Rackhams Reference : 4DHV7I2KZF

Specification:

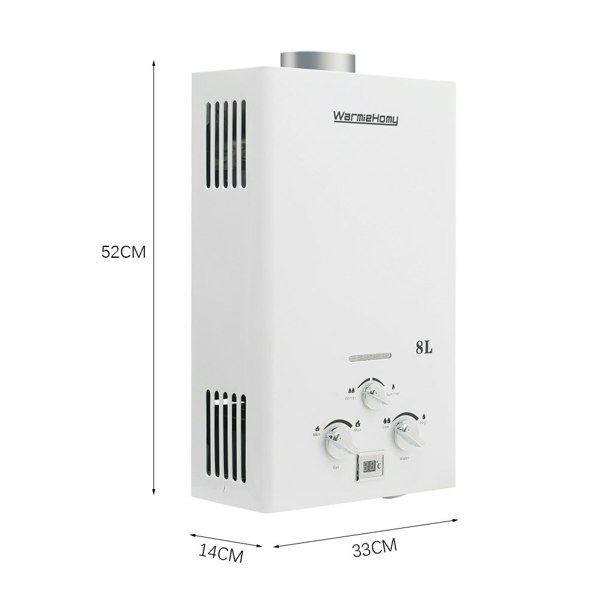

Overall Dimensions: 33cm W x 14cm D x 52cm H

Material: Stainless Steel

Colour: White

Operation: Rotary Knob

Power Source: 2 x D-cell Batteries(not included)

Flue System: Flue Type

Gas Inlet Pressure:

GN: 20 mbar

LPG: 28 mbar

Ignition System: Automatic

Temperature Rage: 35℃-65℃

Starting Water Pressure: 0.2~10bar

Max Output power: 16KW

Heating Load: 16KW

Max Flow Rate (rise 25 ℃): 8kg/min

CE Gas Regulator: 37mbar

Clamp Connection Hose: 27mm

Pump:

Volts: DC12V(9-14.4V)

Use Current: 6A

Maximum Power: 70W

TheLargestflow: 4-6.0L

MIN

Pressure Setting: 0.90MPA

Shower Head Included: Yes

Application Scenario: Outdoor

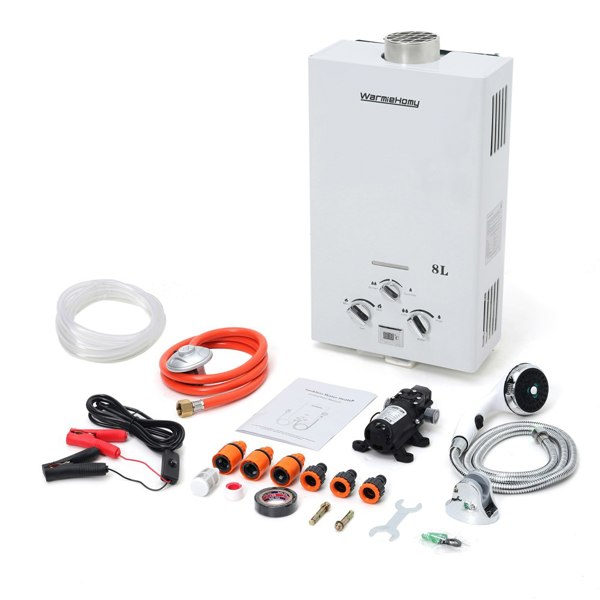

Package included:1 x 8L Outdoor Portable Tankless Gas Water Heater

1 x Water Pump

1 x Water Pipe

1 x Crocodile Clip Electrical Wire (for water pump)

1 x ON

OFF Switch Shower Head with 1.5M Hose

1 x Shower Head Wall mount Bracket

1 x Safety Certified Gas Regulator with 1.5M Hose

1 x 1/2" BSP Water Inlet Quick Connector Set

1 x Filter Head

1 x White Sealing Tape

1 x Insulation tape

2 x wall Mounting Screws

1 x Spanner

1 x User Manual

Package Specifications:

Package Dimensions: 65.8cm W x 36cm D x 21cm H

Gross Weight: 10.7kgNotes:

-For your safety, it is recommended to install this water heater in a well-ventilated environment to effectively avoid the risk of electric leakage.

-To prevent gas leakage, always close the main gas supply to the heater.

-Do not put any cloth or towel on the top of the gas water heater.

-lf you smell gas or gas is detected, turn off the gas valve immediately! Do not use a flame for leak detection! Do not touch the "on

off" switch once you have turned it off! Call a qualified service technician immediately!

-In winter, if the water temperature goes below 4°C, drain the water completely from the gas water heater through the drain valve to avoid any damage to the heater because of freezing temperatures.

-Despite efforts for accuracy, there may be some reasonable error due to manual measurement.

- Actual product colours may vary due to monitor settings & lightings.
