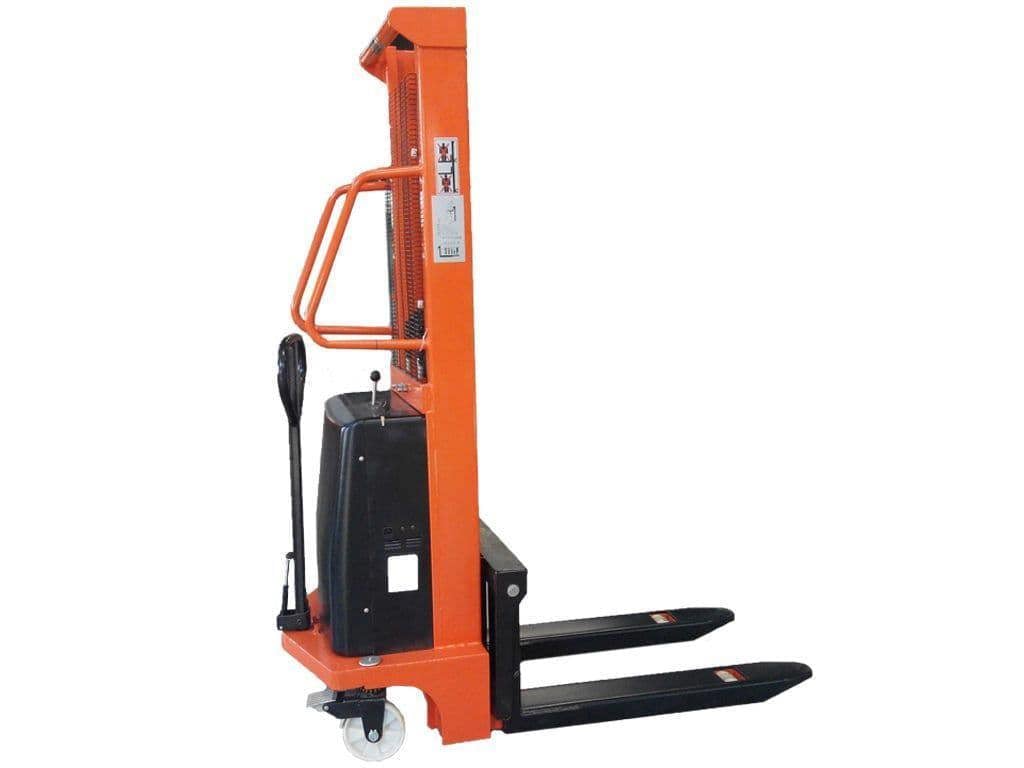

Manual Hydraulic Pallet Stacker 2T (Hand Forklift Lifter 1.6M)

Designed for practical lifting on job sites, this Manual Hand Stacker offers a straightforward way to raise pallets when a forklift is not available and using a crane is considered unsafe. Built for one-person operation, it uses a lever to gradually pump the forks upwards, with an additional foot pump positioned below the lever for faster lifting when needed. A handle at the top of the lever is used to lower the forks, or to lock the handle to prevent further lifting.

For controlled manoeuvring in tight spaces, the stacker can turn 360° on the spot. Rear wheels are fitted with a foot brake catch to support safer positioning during use. Finished in bright orange for high visibility, the forks are designed to remain steady while the stacker is wheeled, helping to reduce the risk of items falling from the forks.

Key features

• Manual hand stacker for lifting pallets to high places
• Maximum lifting capacity of 1 ton
• Lever-operated pumping action to raise the forks
• Foot pump for faster lifting
• Handle function to lower the forks or lock the lever
• 360° turning for manoeuvrability
• Rear wheels with foot brake catch
• Bright orange finish for high visibility

Sizing

• Fork width x length: 150mm x 1150mm
• Overall fork width: 530mm
• Loading centre on forks: 600mm
• Minimum–maximum fork height: 85 - 2590mm
• Lifting height per stroke: 15mm
• Overall length x width x height: 1740mm x 730mm x 1840mm
• Overall height when fully raised: 3150mm

Specifications

• Max capacity at 0.5m: 1000kgs (1.0 ton)
• Max capacity at 2.5m: 500kgs (0.5 ton)

Rackhams Reference : UMZZ8AJ69V
