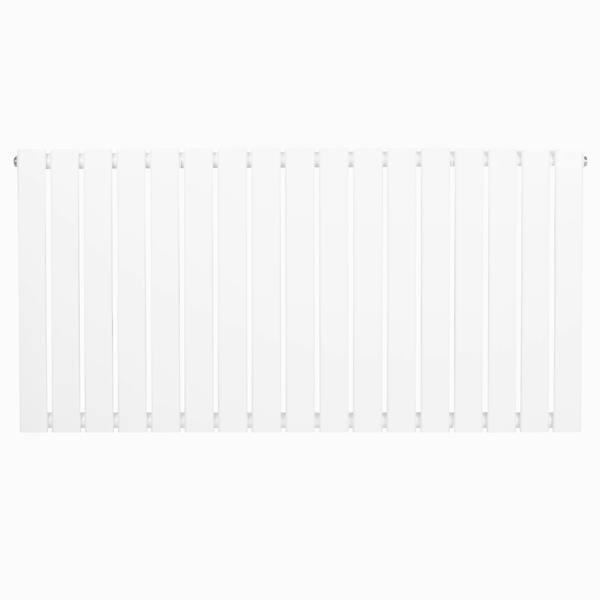

Monstershop Flat Single Column Radiator - 600 x 1190mm - White

Bring a clean, architectural look to your heating with the Monstershop Flat Single Column Radiator. Finished in white with a triple layered powder coating, it offers a crisp, modern presence while keeping the profile slim at 46mm deep.

Made from premium 1.5mm carbon steel, this 600 x 1190mm radiator uses 17 flat tubes (60mm x 15mm) with a 10mm gap between tubes. Heat output is rated at 2918 BTU at 50 and 3685 BTU at 60, with watt ratings of 855 at 50 and 1080 at 60. It supports a maximum working temperature of 95°C, with a maximum working pressure of 5 bar and a test pressure of 6.5 bar. Standard 0.5" BSP inlets/outlets provide straightforward compatibility with valves of your choice.

Key features

• Monstershop flat single column radiator
• 600mm height x 1190mm width
• White finish with triple layered powder coating
• Premium 1.5mm carbon steel construction
• Heat output: 3685 BTU at 60 (2918 BTU at 50)
• Standard 0.5" BSP bore inlets/outlets
• CE and UKCA certified
• 15-year guarantee

Specifications

• Colour: White
• Weight: 19.6kg
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Height: 600mm / 60cm / 23.6”
• Width: 1190mm / 119cm / 46.9”
• Radiator depth: 46mm / 4.6cm / 1.8”
• Depth with bracket: 73mm / 7.3cm / 2.9”
• Gap between tubes: 10mm / 1cm / 0.4”
• Individual flat tube size: 60mm x 15mm
• Number of columns: 17
• BTU rating @ 50: 2918
• BTU rating @ 60: 3685
• Watt rating @ 50: 855
• Watt rating @ 60: 1080
• Max working temperature: 95°C
• Max working pressure: 5 bar
• Test pressure: 6.5 bar
• Recommended application area: 11m²
• Inlets/outlets size: Standard 0.5" BSP bore
• Distance from wall to centre of inlet: 44mm / 4.4cm / 1.7”
• Valve-to-valve height: 549mm / 54.9cm / 21.6”
• Compatibility: All UK & EU heating systems
• Testing: BS EN 442 & ISO9001:2015 standards
• CE certificate: CE & UKCA

In the box

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Practical fixing kit
• 1 x Flexible cleaning brush
